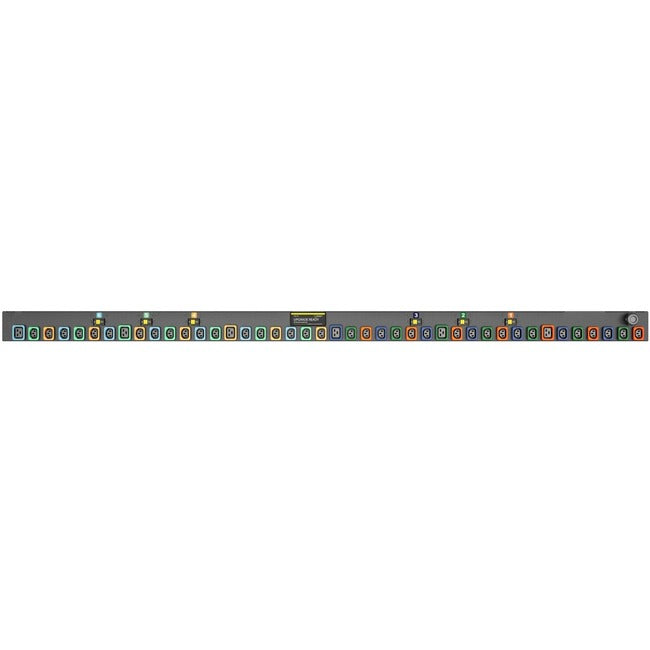

This 42-outlets power distribution unit is perfect for data center engineers and enterprise IT professionals who need high-density rack PDU capabilities with maximum flexibility. Our Vertiv Geist MN01X5W1-42PZ63-3TL56A0A10-S-A delivers:
-
42 outlets configuration providing comprehensive power distribution for high-density server environments
-
Upgradeable power distribution unit design allowing field upgrades and modular expansion
-
Vertical mount design optimizing rack space utilization without consuming U-space
-
NEMA L22-30P input supporting high-amperage three-phase power distribution
Key Features
-
42 outlets configuration maximizing server density and equipment connectivity
-
Upgradeable modular design enabling field upgrades without infrastructure replacement
- Optimized for vertical mount installation alongside equipment in standard 19-inch racks
- Consistent NEMA L22-30P input connector ensuring reliable three-phase power connection
-
Managed power distribution unit functionality with advanced monitoring and control capabilities
- Individual outlet monitoring and switching for granular power management
- Network connectivity with SNMP support for remote monitoring and alerts
- Environmental sensors for temperature and humidity monitoring
Technical Specifications
| Manufacturer |
Vertiv |
| Model Number |
MN01X5W1-42PZ63-3TL56A0A10-S-A |
| Type |
Upgradeable Rack PDU |
| Outlet Count |
42 AC Outlets |
| Input Connector |
NEMA L22-30P |
| Input Voltage |
208V/240V Three-Phase |
| Current Rating |
30A Three-Phase |
| Mounting Type |
Vertical Mount (0U) |
| Outlet Types |
Mixed IEC C13/C19 Configuration |
| Monitoring |
Per-Outlet Monitoring and Control |
| Network Interface |
Ethernet, Serial, SNMP v1/v2c/v3 |
| Environmental Sensors |
Temperature and Humidity Monitoring |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Compatible Systems |
Standard 19-inch server racks and data center cabinets |
| Certifications |
UL Listed, CSA Certified, CE Mark, FCC Compliant |
Frequently Asked Questions
Q: What makes this rack PDU upgradeable?
A: The Vertiv Geist MN01X5W1-42PZ63-3TL56A0A10-S-A features modular upgradeable design allowing field upgrades to monitoring capabilities, outlet modules, and control systems. This upgradeable power distribution unit protects your investment by enabling feature enhancements without replacing the entire PDU.
Q: What are the advantages of vertical mount installation?
A: The vertical mount design maximizes rack space efficiency by mounting alongside equipment without consuming valuable U-space. This rack PDU configuration improves cable management, provides easy access to outlets, and allows for higher equipment density in data center environments.
Q: How does the NEMA L22-30P input benefit data center installations?
A: The NEMA L22-30P input connector provides secure three-phase power connection with 30A capacity, ideal for high-density server installations. This configuration ensures reliable power distribution while supporting the electrical requirements of modern data center equipment.
Q: What level of power monitoring does this 42-outlets PDU provide?
A: This managed power distribution unit offers comprehensive per-outlet monitoring including voltage, current, power consumption, and energy usage across all 42 outlets. Remote switching capabilities enable power cycling of individual outlets for maintenance, troubleshooting, and energy management.
Vertiv Geist MN01X5W1-42PZ63-3TL56A0A10-S-A: 42-outlets upgradeable rack PDU with NEMA L22-30P input, vertical mount design, and advanced monitoring.
