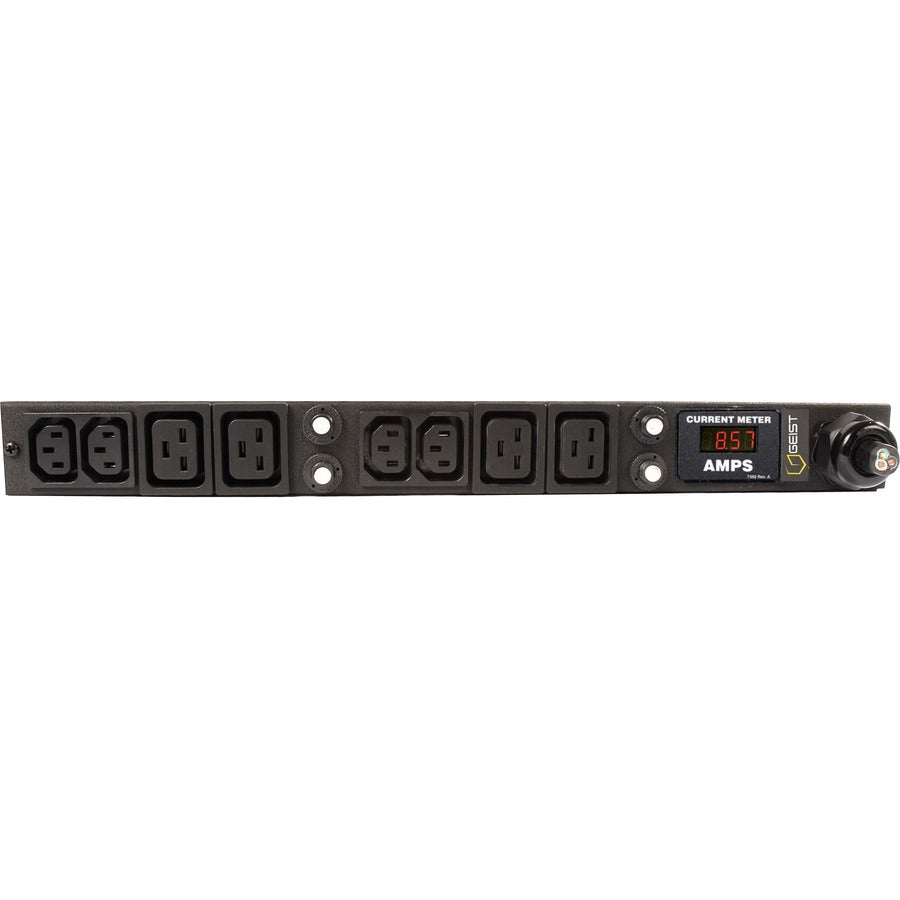

The Vertiv 12154 rPDU Metered 30A 208V is perfect for data center administrators and IT professionals who need advanced power monitoring and distribution for high-density server environments. Our metered power distribution unit delivers:
-
Real-time power metering enabling precise monitoring and capacity planning for critical systems
-
Dual outlet configuration with 4 IEC C13 and 4 IEC C19 supporting diverse server and networking equipment
-
4.9kW power capacity at 30A 208V providing robust power distribution for enterprise applications
-
Horizontal/vertical mounting flexibility maximizing rack space optimization and installation versatility
Key Features
-
Metered power monitoring providing real-time current and power consumption data
-
Mixed outlet configuration with IEC C13 and C19 receptacles
- Optimized for rack mount power distribution unit applications
- Consistent Vertiv power distribution unit performance for enterprise deployments
-
L6-30P input connector with 10ft cord for flexible installation
Technical Specifications
| Manufacturer |
Vertiv |
| Model Number |
12154 |
| Type |
rPDU Metered |
| Power Capacity |
4.9kW |
| Current Rating |
30A |
| Voltage |
208V |
| Input Connector |
L6-30P |
| Output Configuration |
4 x IEC C13, 4 x IEC C19 |
| Cable Length |
10 feet |
| Mounting |
Horizontal/Vertical |
| Finish |
Black Powder Coat |
Frequently Asked Questions
Q: What metering capabilities does this 30A 208V rPDU provide?
A: This metered power distribution unit provides comprehensive real-time monitoring of current consumption, power usage, and electrical parameters, enabling administrators to optimize load distribution and prevent overloads in critical rack mount power distribution unit environments.
Q: What is the benefit of having both IEC C13 and C19 outlets?
A: The mixed outlet configuration with 4 IEC C13 and 4 IEC C19 provides flexibility to support both standard servers and high-power equipment, making this PDU ideal for diverse data center deployments requiring different connector types.
Q: Can this PDU be mounted both horizontally and vertically?
A: Yes, the horizontal/vertical mounting design provides installation flexibility, allowing the unit to be mounted as space permits while maintaining optimal cable management and access to all outlets in various rack mount power distribution unit configurations.
Q: What equipment can this 4.9kW PDU support?
A: With 30A capacity at 208V providing 4.9kW power, this rPDU can support multiple high-power servers, storage devices, and network equipment, making it ideal for medium to high-density enterprise deployments requiring reliable power distribution and monitoring.
Vertiv 12154 rPDU metered 30A 208V with 4.9kW capacity, 4 IEC C13 + 4 IEC C19 outlets, horizontal/vertical mounting for data center power distribution.
