Gigabyte G221-Z30 Barebone System - 2U Rack-mountable - Socket SP3 - 1 x Processor Support

Gigabyte G221-Z30 Barebone System - 2U Rack-mountable - Socket SP3 - 1 x Processor Support

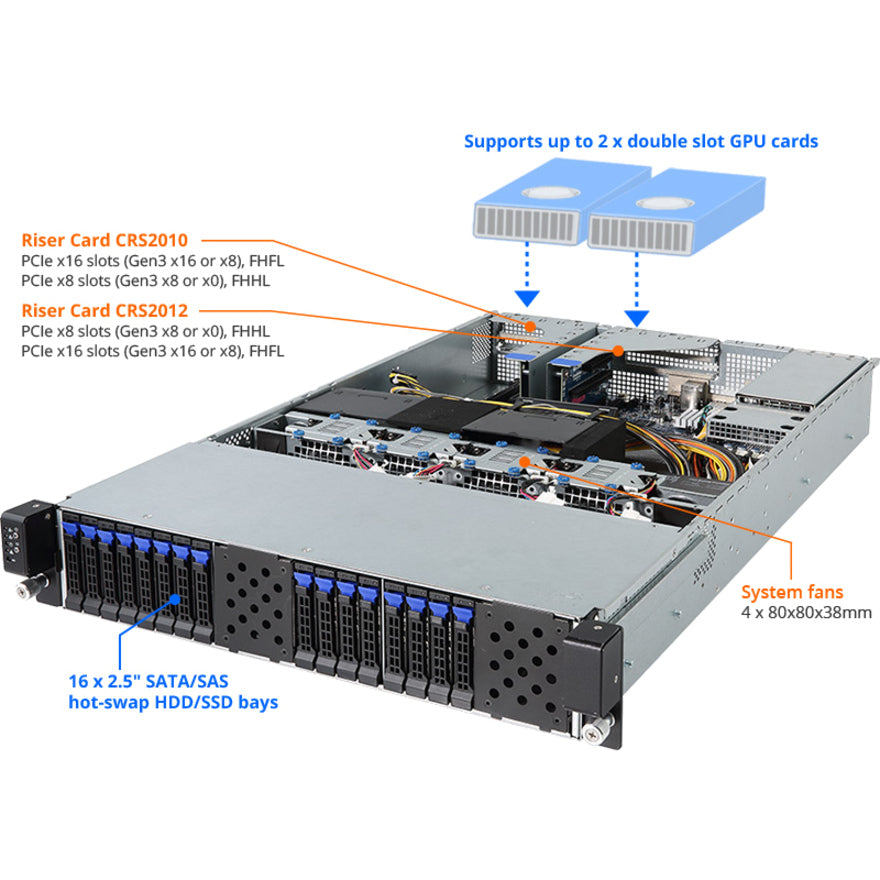

• Supports up to 2 x double slot GPU cards
• AMD EPYC™ 7000 series processor family
• 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs

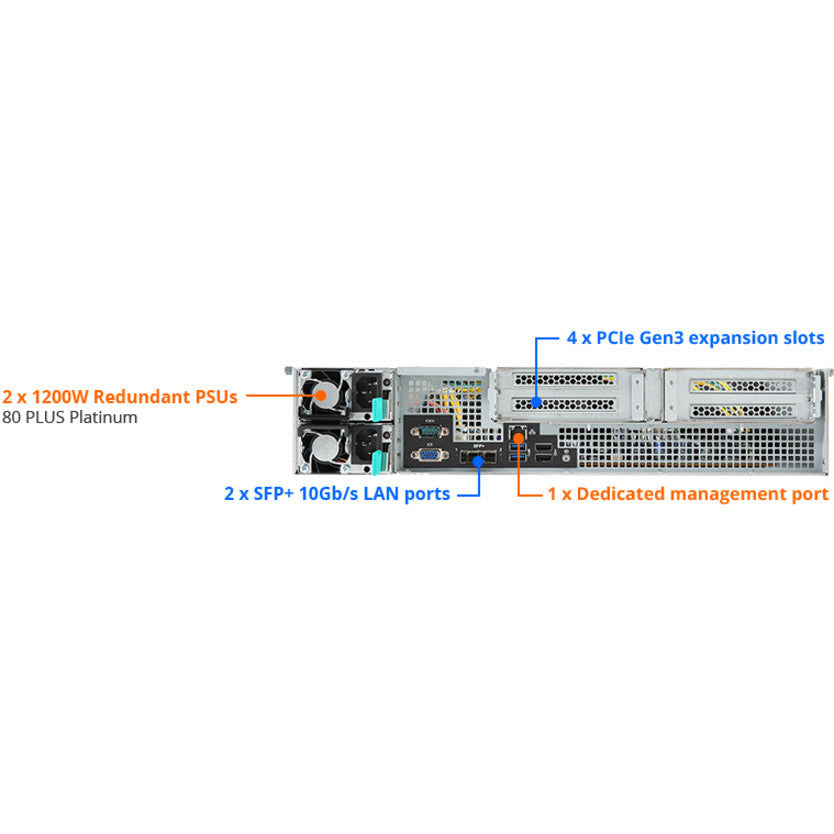

• 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
• 1 x Dedicated management port
• 16 x 2.5" hot-swappable HDD/SSD bays
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• 4 x PCIe Gen3 expansion slots
• Aspeed® AST2500 remote management controller
• Dual 1200W 80 PLUS Platinum redundant power supply

AMD EPYC™

The New x86 Option

AMD's return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE's extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:

• Memory
• I/O
• Network connectivity

This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.

CPU Key Features

Compute
32 cores

Memory
8 channels

I/O
128 PCIe lanes

Power
Regulated per core

Security
Integrated Custom Security

•
  Memory Optimization
  Memory speed of up to 2666MHz (at 1DPC)
  Total memory capacity of 2TB supported
•
  PCIe Lanes
  Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform
•
  Cores / Power
  CPU power is managed at the core level, meaning that power is allocated only for specific workload needs
•
  Security
  Proprietary AMD security on chip

Comprehensive I/O

Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings.
Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards.
In addition, the integrated nature of the processor - designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes.

NVIDIA® Tesla® V100 Support

GIGABYTE's AMD EPYC server systems and motherboards are fully compatible and qualified to use with NVIDIA®'s Tesla® V100 GPU, the world's most advanced data center GPU ever built to accelerate AI, HPC, and graphics. Powered by NVIDIA's Volta™ architecture and with 640 Tensor Cores, Tesla® V100 is the world's first GPU to break the 100 teraflops (TFLOPS) barrier of deep learning performance - enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

High-Speed Networking

GIGABYTE offers 10Gb across dual ports on-board, ensuring that users can get the most out of their system and are well equipped for today's traffic demands. The server's network performance is boosted with full-line rate throughput and CPU overhead is reduced, leaving the EPYC to focus on the real compute tasks.

Dense, High Speed Storage Support

Onboard M.2

GIGABYTE AMD EPYC™ platforms are designed to support on-board 'M.2' storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices.

Data Security

TPM 2.0 Module

GIGABYTE's EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

• Compatible EPYC processor lets you perform all your computational tasks at a swift pace


• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput


• Optimize business network's performance with 10 Gigabit Ethernet connectivity


• Featuring 6 USB ports to connect USB-compatible devices


• With Serial ATA interface get superb reliability and high-speed data transfer

Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: G221-Z30
Product Name: G221-Z30 (rev. 100) Barebone System
Manufacturer Part Number: G221-Z30
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:

• G221-Z30 (rev. 100) Barebone System
• 1 x CPU Heatsink
• 1 x Rail Kit
