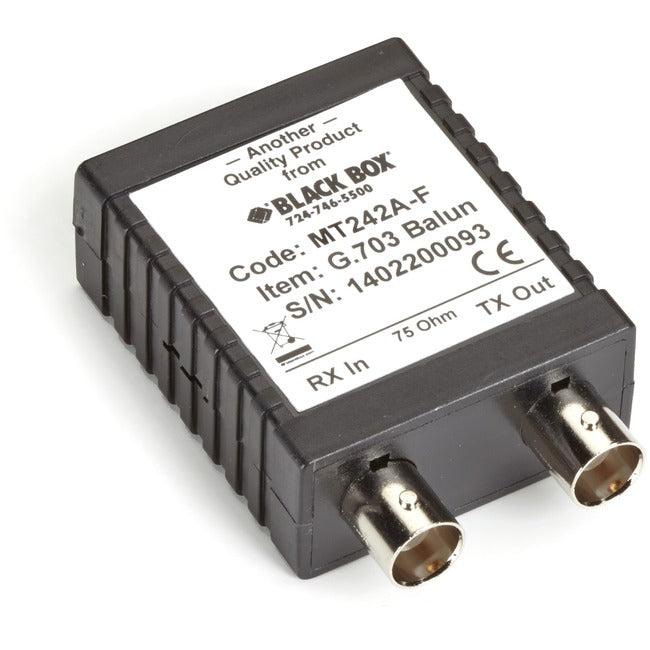

Black Box G.703 Balun - 75-120-ohm, 2.048 Mbps, Female
G.703 7-120 ohm Balun 2.048 Mbps, Female. Features transformer isolation for protection against ground loops. Models support 2.048-Mbps Use G.703 75-120-ohm Adapters to connect your G.703 network to your shielded twisted-pair equipment. These adapters address the open network provision (ONP) requirement that European post, telephone, and telegraph (PTT) authorities offer 120-ohm twisted-pair terminations to their customers.
Use the adapters to convert the balanced G.703 signals from your bridges and routers to unbalanced G.703 signals. So you can use your 75-ohm coax hardware and communicate with 100-ohm or 120-ohm twisted-pair equipment. The adapters convert signals bidirectionally, too. Setup is super easy. Just plug in the adapters. If needed, you can configure the shield connection between the 75-ohm and twisted-pair interfaces.
The G.703 75-120 Adapters support E1 data rates to 2.048 Mbps. For sending TX and RX signals over STP cable, order the MT256A-F, which has 1.6/5.6 dual-coax connectors. The G.703 75 - 120-ohm High-Speed Adapters support data rates to 8 Mbps.
These adapters address the open network provision (ONP) requirement that European post, telephone, and telegraph (PTT) authorities offer 120-ohm twisted-pair terminations to their customers.
Use the adapters to convert the balanced G.703 signals from your bridges and routers to unbalanced G.703 signals. So you can use your 75-ohm coax hardware and communicate with 100-ohm or 120-ohm twisted-pair equipment. The adapters convert signals bidirectionally, too.
Setup is super easy. Just plug in the adapters. If needed, you can configure the shield connection between the 75-ohm and twisted-pair interfaces.
The G.703 75-120 Adapters support E1 data rates to 2.048 Mbps. For sending TX and RX signals over STP cable, order the MT256A-F, which has 1.6/5.6 dual-coax connectors.
The G.703 75-120 High-Speed Adapters support data rates to 8 Mbps.
- 2.048-Mbps models can be ordered with 1.6/5.6 dual-coax connectors.
- Choose from models that support 2.048-Mbps or 8-Mbps speeds.
- Features transformer isolation for protection against ground loops.
- Make bidirectional G.703 balanced and unbalanced conversions and protect against ground loops.
- Converts bidirectionally between G.703 balanced and unbalanced interfaces.
- Make 75-ohm (dual-coax) and 120-ohm (twisted-pair) network connections.
- Solve mismatches between coax and twisted-pair equipment.
Product Type: Video Balun
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: G.703 Balun - 75-120-ohm, 2.048 Mbps, Female
Manufacturer Part Number: MT242A-F
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
