Furman Rs-1 System Control Pan

Furman RS-1 Device Remote Control

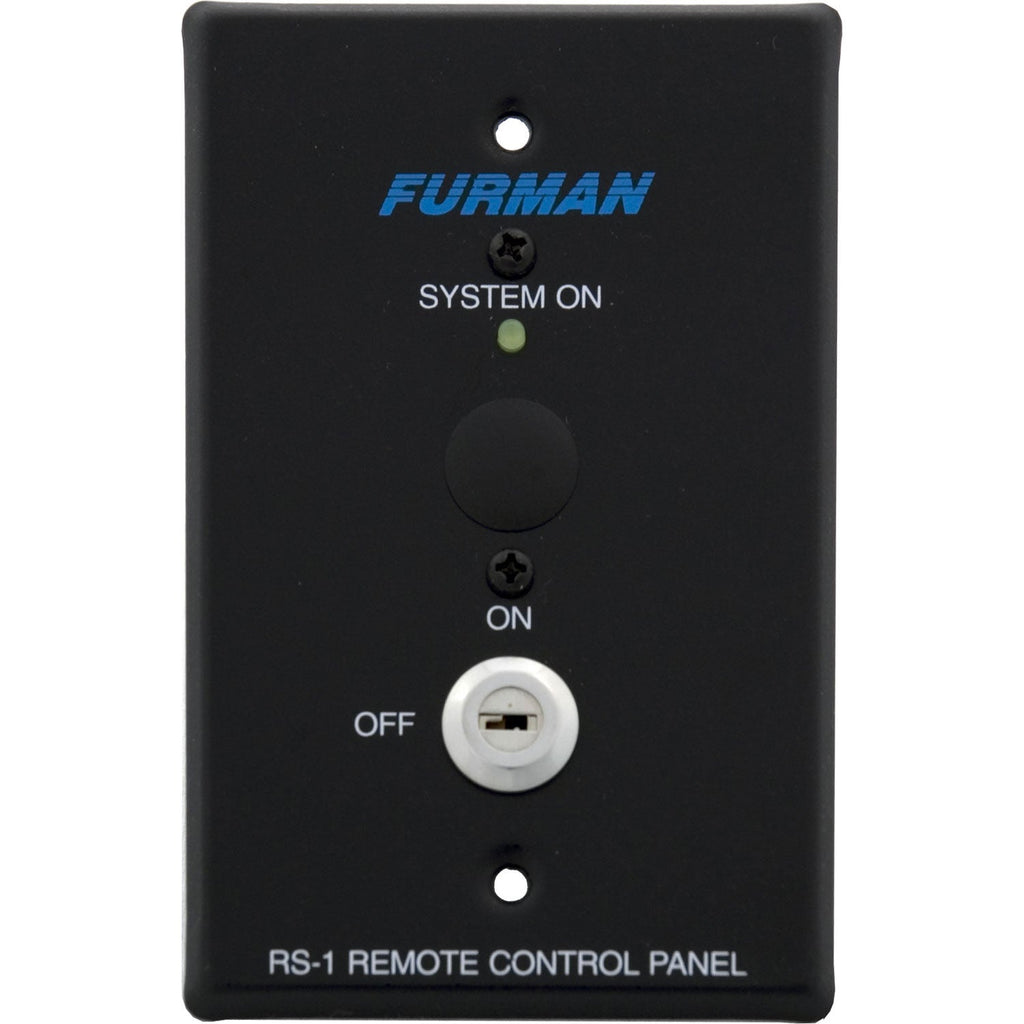

The RS-1 Remote System Control Panels provide a simple way to control AC equipment from one or more locations, using only inexpensive low-voltage wiring. The panel can be easily installed in a single gang switch box with a minimum depth of 1.5". Features include a locking key switch and a "System On" indicator LED. The RS-1 has a maintained contact "Start ON/OFF Sequence" push-button. The rear of the panel has a circuit board with a full size barrier strip for field wiring connections. The RS-1 can be used to control the Furman ASD-120 Sequenced Power Distributor, the Power Link, Power Port, Remote AC Controller, the MiniPort Power Relay series, or the PS-8R, PS-8R II or PS-PRO II Power Sequencers, as well as other equipment that needs a switch contact at a remote location.

Product Type: Device Remote Control
Product Color: Black
Brand Name: Furman
Compatibility:

• Furman AR-PRO AC Line Voltage Regulator

• Furman ASD-120 AC Sequenced Power Distribution

• Furman MINIPORT-15 Power Relay

• Furman MINIPORT-20 Power Relay

• Furman PowerLink Remote AC Power Sequencer

• Furman POWER PORT AC Power Controller

• Furman PS-8R II Power Conditioner / Sequencer

• Furman PS-PRO Series Power Conditioner & Sequencer
