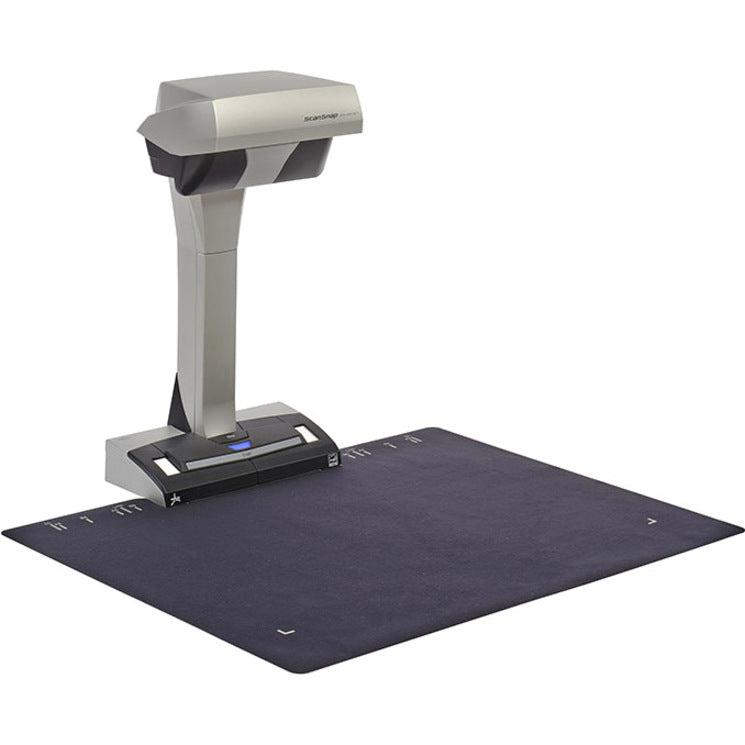

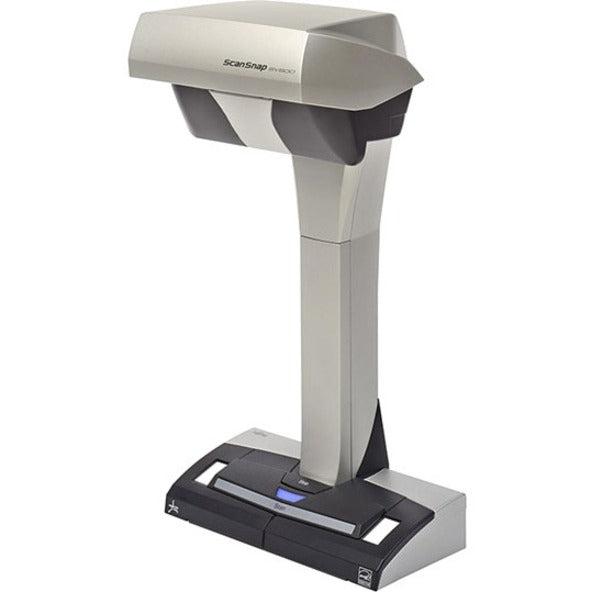

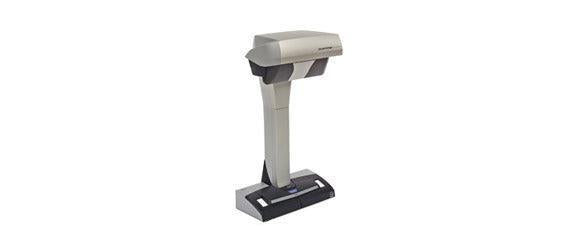

Fujitsu ScanSnap SV600. Maximum scan size: 432 x 300 mm, Optical scanning resolution: 285 x 218 DPI, Black/white scanning colour modes: Grayscale, Monochrome. Scanner type: Overhead scanner, Product colour: Black, Grey. Sensor type: CCD, Light source: White LED (2x). Maximum ISO A-series paper size: A3, Scanning media types supported: Business Card, Post Card(JPN), ISO B-series sizes (B0...B9): B4,B5,B6. Standard interfaces: USB 1.1,USB 2.0
- One touch operation for PC and Mac - Scan a multitude of everyday documents including loose paper, bound material and delicate items - Multi cropping capability allowing for scanning of various documents at the same time - Continuous scanning capability with “page turning detection” and “timed scanning” - “VI technology” helps minimise any unevenness in image quality - Correct distortion and curvature of bound material with “Book Image Correction” - Small footprint and robust design allows for easy positioning in any environment.
Digitise anything with ease The ScanSnap SV600 allows you to scan newspapers, bound documents, magazines or books without the need for cutting or causing damage.

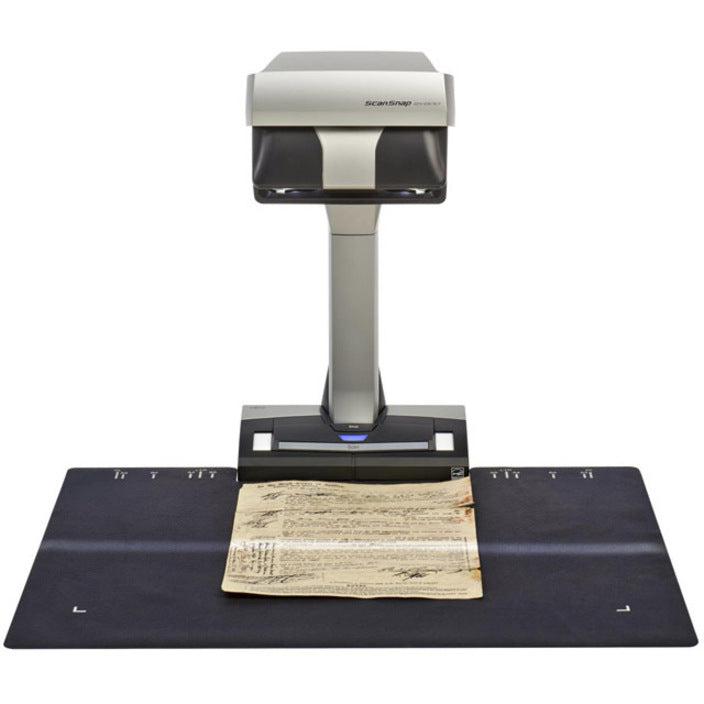

Scan anything from business cards to A3 size (landscape)* documents Any documents larger than A4 such as maps, historical documents and blueprints can be simply positioned on the black pad and scanned directly without any extra effort. User interaction retouch tool allows the possibility to hold the document in a good position without worrying about fingers on the scanned image. * The maximum document size will be 400 x 300 mm when the thickness of the document is over 5 mm.
New VI technology Equipped with “VI technology” which combines a ‘deep depth of field lens’, a ‘CCD linear image sensor’ and a ‘high directivity LED lamp’ the SV600 is able to comfortably minimise any unevenness in image quality and generate a smooth image even when scanning from a distance.

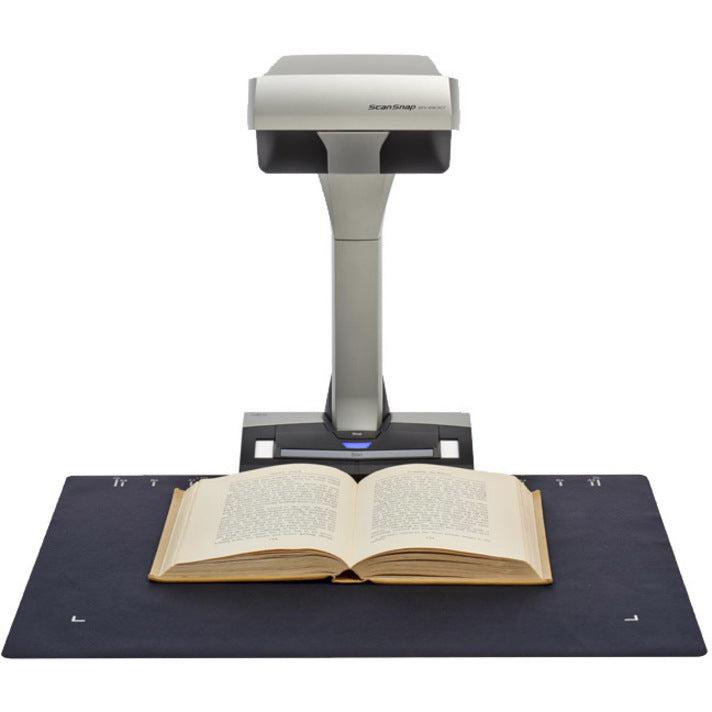

No problem scanning bound documents The SV600 can comfortably scan books and magazines and also documents with sticky notes can be scanned without any issues.
No need to worry about your delicate documents or books With “VI technology”, scanning can be performed without touching the document. You do not need to worry that documents such as crayon or oil paintings, pencil writings or photos will be damaged by touching.
Long depth of field lens Wide auto focus area even when the focus distance is variable
CCD linear image sensor Helps produce smooth images.

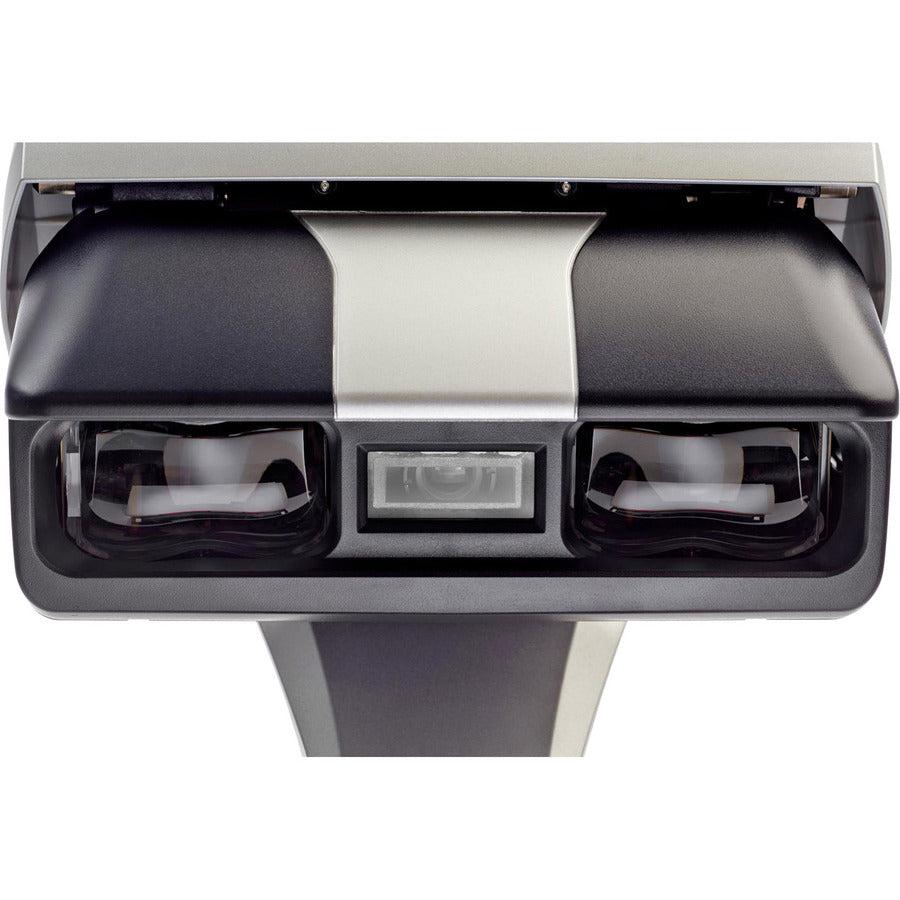

The SV600 scans documents with a movable head and incorporates a High directivity LED lamp Helps maintain the same brightness level without any impact from surroundings.
Rack2-Filer Smart is a feature-rich scanning and content viewing application incorporating an ultra-intuitive bookshelf and binder interface that gives users a familiar and enjoyable interaction with their scanned paperwork.
Smooth operation with the assistance of various functions The SV600 is enhanced with a host of customised features which helps continue ScanSnap’s concept of being simple, speedy and compact.
Quick Menu facilitates operability ScanSnap’s Quick Menu will automatically pop up after scanning enabling you to link your scanned data to an application both quickly and easily, scan directly to the cloud for example thereby easily sharing your documents.
ScanSnap SV600 includes Rack2-Filer Smart and Magic Desktop
ScanSnap SV600 offers a unique and intuitive way to scan your books, magazines and newspapers to your e-reading devices. It comes bundled with filing software Rack2-Filer Smart and Magic Desktop with which you can easily generate, virtually organise and read your own scanned material.
Automatically crop several documents with ‘Multiple Document Detection” In just one touch you can capture multiple documents of differing sizes in just one scan pass. Place several business cards, receipts and photos within the scanning area and the SV600 will capture all the documents and will intelligently crop to the exact size. * Up to 10 documents can be cropped automatically. At least 15 mm is needed between documents.
Fast start up time and scanning speed lead to time savings and efficiencies The SV600 can be ready to scan in no time from power up and just 3 seconds is then required to scan an A3 landscape sized document.
Compact design with a small footprint The SV600 is incredibly robust with a firm footing and is compact enough to enable efficient usage of your workspace without imposing to your daily routines when not in use.
Step 1
Scan with one touch! With a host of impressive features, you can continuously scan multiple pages smoothly.
Page Turning Detection Automatically detect when the page is turned.
Timed Mode - You can set the time to start scanning after the “Scan” button is pressed. - For continuous scanning you can set the time interval before the next scanning to begin.
Step 2
Auto image correction; enhances the reading experience Book Image Correction – Automatically correct distortion caused by the curve of an opened book or magazine. You can confirm and fine tune the scanned images on the preview dialog after scanning or have this be performed automatically.
Book Image Correction Can easily correctdistortion of the document.
User interaction retouch Finger images scanned while suppressing the document can be deleted with ease.
Step 3
Go paperless with digital filing The new feature of “Rack2-Filer Smart”, “Easy book creation”, is especially added for SV600. You can divide pages and create thumbnails using the scanned front and back cover of the book after scanning.
Step 4
Organising and Viewing on the go Carry your scanned documents with you anywhere and anytime; you can conveniently browse your scanned digitised material from your tablet or Smartphone. “Rack2-Filer Smart” manages and organises all your scanned images while providing you with the functionality to utilise data in many ways.
ScanSnap Receipt * The ScanSnap Receipt software allows you to easily scan and extract information from your receipts, and even export the data for tax filing.
*Available via an online update only.
ScanSnap Sync* With ScanSnap Sync built into ScanSnap Organizer software and the ScanSnap Connect app, captured documents are automatically synchronized with all your devices through Dropbox, Google Drive or Microsoft OneDrive.
