Fractal Design Lumen S36 Aspect 12 Pwm X3 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S3601
Save
$-259.00
Fractal Design
SKU:
FD-W-L1-S3601
Price:
Sale price
$259.00 CAD
/
Quantity:
Sold out
This item is a recurring or deferred purchase. By continuing, I agree to the
cancellation policy
and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email
[email protected]
Description
Mfr Part Number:
FD-W-L1-S3601
Features:
Stealthy and illuminated looks controlled from your motherboard
Removable top turns at 90 for a horizontal logo in any orientation
Thermal paste is pre-applied to ensure a simple installation
Fits Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
Fits AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM2, FM2+
Aspect fans for low turbulence and chaining support
Articulating elbow fittings make the tubes easier to route
Fittings reduce cold plate housing tension
Current certifications include Asus AURA, Gigabyte Fusion and more
Low permeability rubber tubes with braided nylon sleeve
Series:
Lumen
Block Specifications
:
Block Compatibility
:
- Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
- AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM2, FM2+
Block Height:
43 mm
Block Dimensions:
79 x 67 mm (with fittings)
Block Diameter:
67 mm
Block Material:
Copper
Thermal Paste:
Pre-applied
Pump Specifications:
Pump Bearing Type:
Ceramic
Pump Noise Level:
22 dBA
Pump Rotational Speed:
4000 +/- 10% RPM
Pump Max Pressure:
1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Pump PWM Control:
No
Pump input voltage:
12V
Pump input current:
0.34A
Pump MTTF:
50,000 hours
Pump power cable length:
775 mm
Pump ARGB cable length:
500 mm
Fan Specifications:
Fans Included:
3 x 120 mm
Fan Type:
Aspect 12 PWM
Fan Dimensions:
120 x 120 x 25 mm
Fan Power Connector:
4-pin
Fan Color:
Black
Fan LED:
No
Fan Rotational Speed:
500 - 2000 RPM
Fan Bearing Type:
Rifle
Fan Noise Level:
<10 - 33.2 dBA
Fan Air Flow:
13 - 56 CFM
Fan Static Pressure:
0.23 - 2.34 mm H2O
Fan input voltage:
12V
Fan input current (max):
0.37A
Fan MTTF:
90,000 hours
Fan Power Cable Length:
500 mm
Fan ARGB Cable Length:
N/A
Tube Specifications
:
Tube Length:
400 mm
Tube Material:
Low-permeability rubber with braided nylon sleeve
Fittings, block side:
Articulating 90-degree Elbow (fixed)
Fittings, radiatorside:
Barbed fitting (fixed)
Radiator Specifications
:
Radiator Dimensions
:
392 x 120 x 27 mm
Radiator Material:
Aluminum
Fan screw threads:
UNC 6-32
Dimensions & Weight
:
Package Dimensions
:
448 x 205 x 137 mm
Package Weight:
2.2 kg

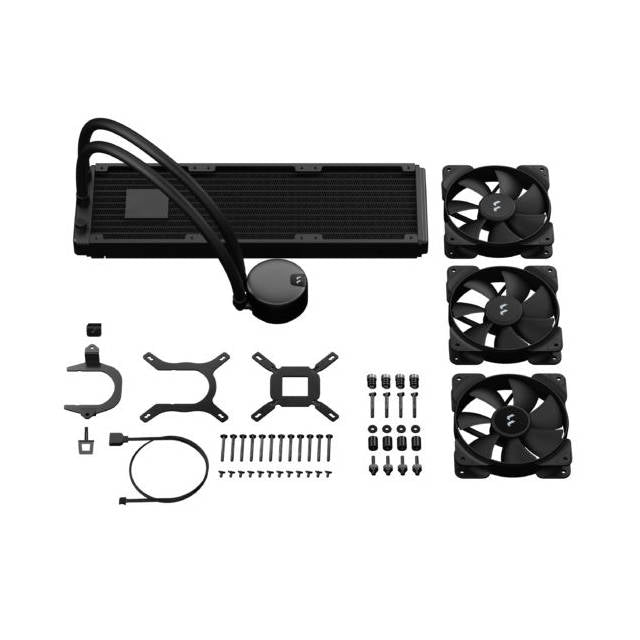

Package Contents:
CPU Cooler Assembly
Aspect PWM Black 120 mm fans x3
User Manual
Thumb screw x4
6-32 Mounting Screw (short/long) x12
Bracket for Intel
Washer x4
Spacer x4
Intel 115X Backplate
Intel 115X Mounting Standoff x4
Intel 2011 Mounting Standoff x4
AMD Mounting Standoff x2
Bracket for AMD
5V ARGB cable
Warranty:
5 years
View more
Specifications
General Information
UPC
843276103439
