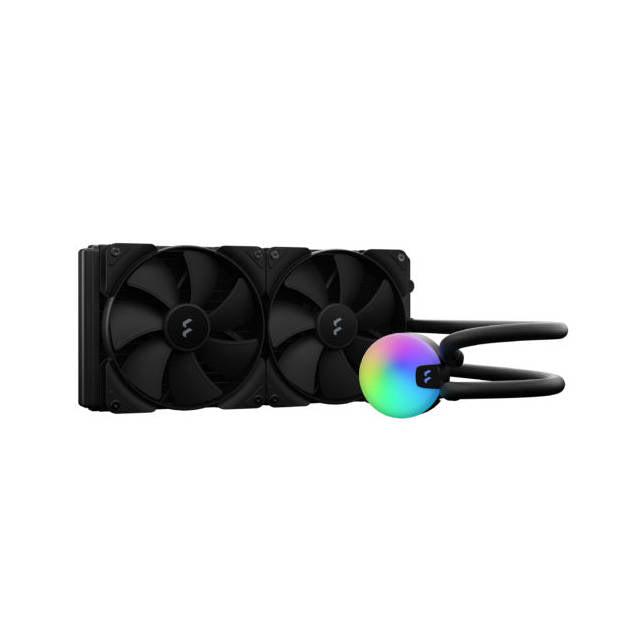

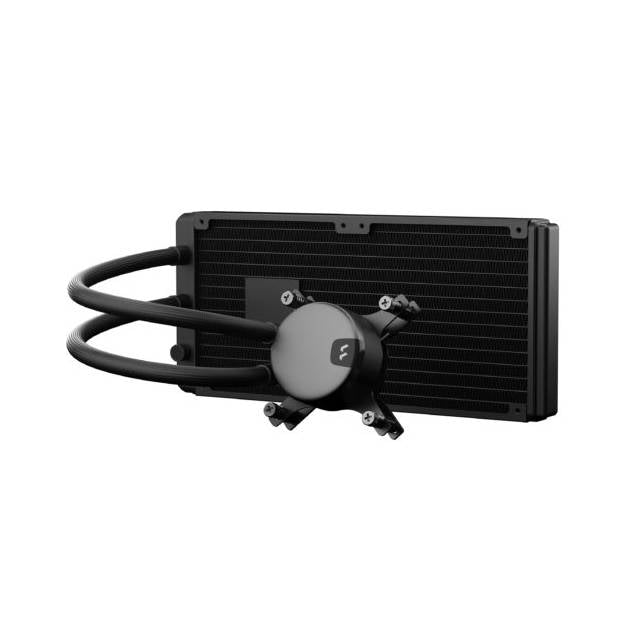

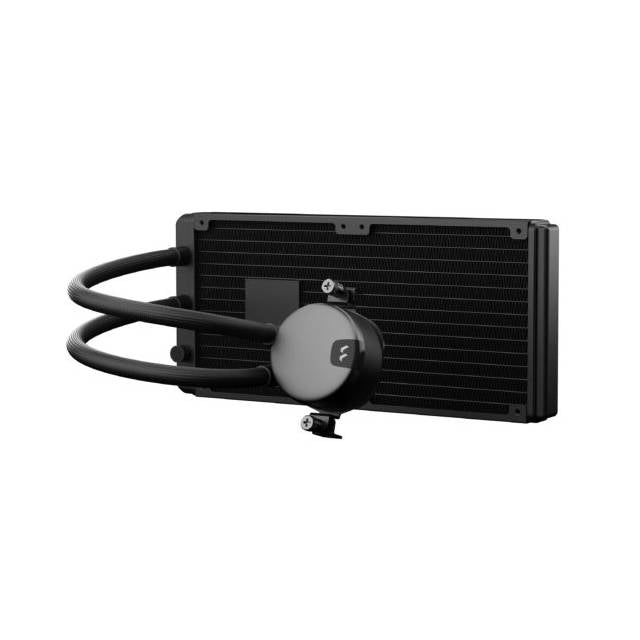

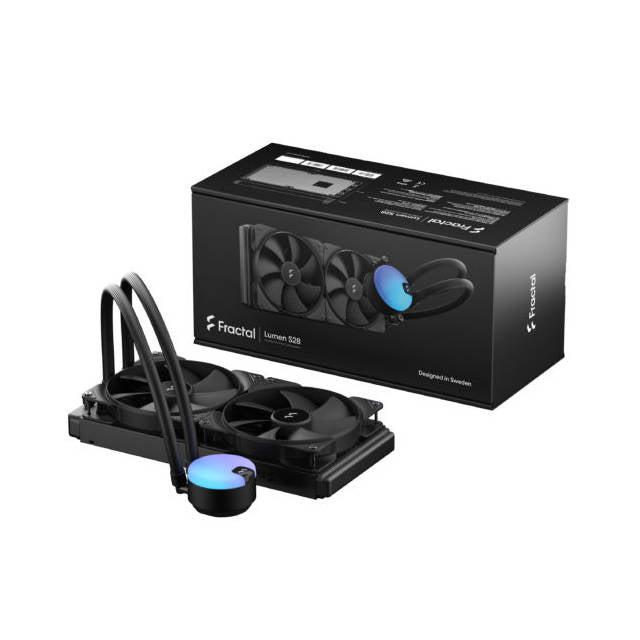

Name: Fractal Design Lumen S28 Aspect 14 Pwm X2 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S2801
Brand: Fractal Design
SKU: FD-W-L1-S2801
Price: 249.00 CAD
Availability: OutOfStock

Fractal Design Lumen S28 Aspect 14 Pwm X2 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S2801

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Mfr Part Number: FD-W-L1-S2801
Features:
- Stealthy and illuminated looks controlled from your motherboard
- Removable top turns at 90 for a horizontal logo in any orientation
- Thermal paste is pre-applied to ensure a simple installation
- Fits Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
- Fits AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM2, FM2+
- Aspect fans for low turbulence and chaining support
- Articulating elbow fittings make the tubes easier to route
- Fittings reduce cold plate housing tension
- Current certifications include Asus AURA, Gigabyte Fusion and more
- Low permeability rubber tubes with braided nylon sleeve
Series: Lumen
Block Specifications:
- Block Compatibility:
  - Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066
  - AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM2, FM2+
- Block Height: 43 mm
- Block Dimensions: 79 x 67 mm (with fittings)
- Block Diameter: 67 mm
- Block Material: Copper
- Thermal Paste: Pre-applied
Pump Specifications:
- Pump Bearing Type: Ceramic
- Pump Noise Level: 22 dBA
- Pump Rotational Speed: 4000 +/- 10% RPM
- Pump Max Pressure: 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
- Pump PWM Control: No
- Pump input voltage: 12V
- Pump input current: 0.34A
- Pump MTTF: 50,000 hours
- Pump power cable length: 775 mm
- Pump ARGB cable length: 500 mm
Fan Specifications:
- Fans Included: 2 x 140 mm
- Fan Type: Aspect 14 PWM
- Fan Dimensions: 140 x 140 x 25 mm
- Fan Power Connector: 4-pin
- Fan Color: Black
- Fan LED: No
- Fan Rotational Speed: 500 - 1700 RPM
- Fan Bearing Type: Rifle
- Fan Noise Level: <10 - 35.5 dBA
- Fan Air Flow: 20 - 78 CFM
- Fan Static Pressure: 0.3 - 2.05 mm H2O
- Fan input voltage: 12V
- Fan input current (max): 0.24A
- Fan MTTF: 90,000 hours
- Fan Power Cable Length: 500 mm
- Fan ARGB Cable Length: N/A
Tube Specifications:
- Tube Length: 400 mm
- Tube Material: Low-permeability rubber with braided nylon sleeve
- Fittings, block side: Articulating 90-degree Elbow (fixed)
- Fittings, radiator side: Barbed fitting (fixed)
Radiator Specifications:
- Radiator Dimensions: 313 x 140 x 27 mm
- Radiator Material: Aluminum
- Fan screw threads: UNC 6-32
Dimensions & Weight:
- Package Dimensions: 369 x 183 x 171 mm
- Package Weight: 2 kg

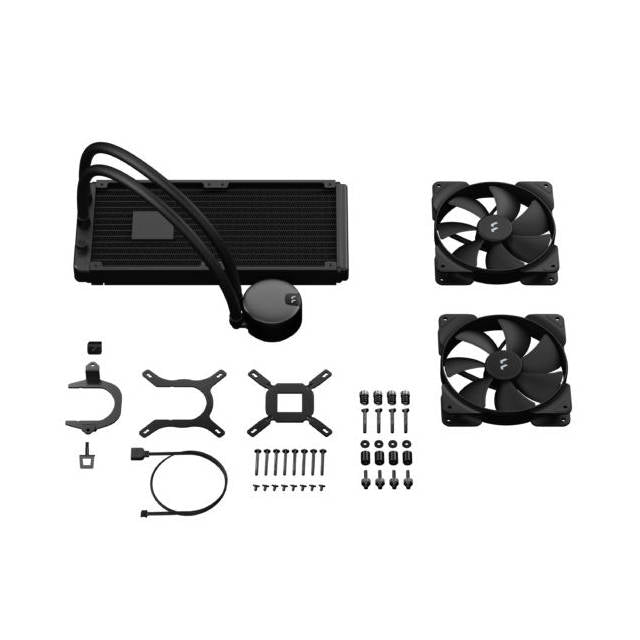

Package Contents:
- CPU Cooler Assembly
- Aspect PWM Black 140 mm fans x2
- User Manual
- Thumb screw x4
- 6-32 Mounting Screw (short/long) x8
- Bracket for Intel
- Washer x4
- Spacer x4
- Intel 115X Backplate
- Intel 115X Mounting Standoff x4
- Intel 2011 Mounting Standoff x4
- AMD Mounting Standoff x2
- Bracket for AMD
- 5V ARGB cable
Warranty: 5 years

General Information

UPC	843276103422

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Fractal Design Lumen S28 Aspect 14 Pwm X2 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S2801

Description

Fractal Design Lumen S28 Aspect 14 Pwm X2 Aio Cpu Liquid/Water Cooler/ Fd-W-L1-S2801
