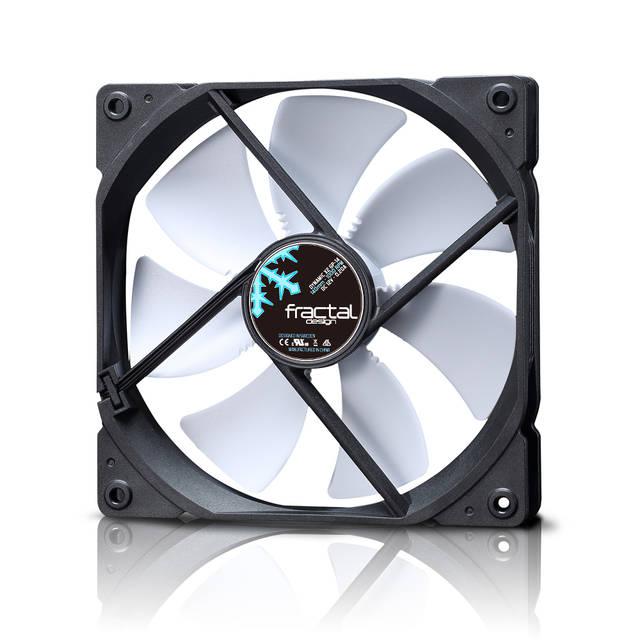

Name: Fractal Design Dynamic X2 Gp-14 Fd-Fan-Dyn-X2-Gp14-Wt 140Mm Case Fan
Brand: Fractal Design
SKU: FD-FAN-DYN-X2-GP14-WT
Price: 40.00 CAD
Availability: InStock

Fractal Design Dynamic X2 Gp-14 Fd-Fan-Dyn-X2-Gp14-Wt 140Mm Case Fan

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Mfr Part Number: FD-FAN-DYN-X2-GP14-WT
Features:
- High grade LLS bearing with class leading 100,000 hours MTBF
- Equipped with a counter-pull magnet that reduces the axial tension on the bearing
- Fan geometry optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
- Aerodynamically shaped stator struts including the wire strut. Helps reduce noise and unwanted turbulence
- Stator struts sit on a wide angle to the trailing edge of the blades which result in a lower noise level and smoother noise profile
- Strategically placed notches near the fan hub on the trailing edge of the blades further reducing the humming noise produced when the blades pass the stator struts
- A "trip wire" on the rear side of the blades near the leading edge. The trip wire introduces a larger turbulent boundary layer at an earlier stage, this delays the layer separation and improves both airflow and noise characteristics.
- The customized design of the Dynamic Series fans contributes to a beautiful, cool build
Rotational Speed: 1000 RPM
Acoustical Noise: 18.9 dB (A)
Maximum Air Flow: 68.4 CFM
Maximum Pressure: 0.71 mm H2O
Actual Input Power: 1.32 W
Maximum Rated Input Current: 0.20 A
Nominal Input Voltage: 12 V
Minimum Startup Voltage: 4 V
Screw Hole Pattern: 125 x 125mm
Connector: 3-pin fan header
Bearing: LLS
Number of Blades: 7
MTBF: 100,000 hours
Cable Length: 500 mm
Cable Type: Black Ribbon Cable
Color: White blades, Black frame
Dimensions: 140.0 x 140.0x 25.0mm
Weight:142.0 g
Package Contents: Dynamic X2 Series fan; Screw pack with 4 metal fan screws

General Information

Manufacturer	Fractal Design
Manufacturer Part Number	FD-FAN-DYN-X2-GP14-WT
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Dynamic
Product Model	X2 GP-14
Product Name	Dynamic X2 GP-14 White
Product Type	Cooling Fan
UPC	817301014403

Weight (Approximate)	5.01 oz

Miscellaneous

Package Contents	Dynamic X2 GP-14 White 4 x Metal Fan Screws
Environmentally Friendly	Yes
