Fortinet Ant-O6Abgn-0606-O Network Antenna Omni-Directional Antenna Rp-Sma 6 Dbi

2.4 - 5.85 GHz, 6 dBi, 50 Ohm, 20 W max, 1.7 kg

Fortinet ANT-O6ABGN-0606-O. Antenna gain level (max): 6 dBi, Frequency band: 2.4 - 2.483 / 5.15 - 5.85 GHz, Antenna gain (2.4 GHz): 6 dBi. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Polarization: Vertical polarization. Width: 152.4 mm, Depth: 152.4 mm, Height: 180.4 mm. Quantity per pack: 1 pc(s)

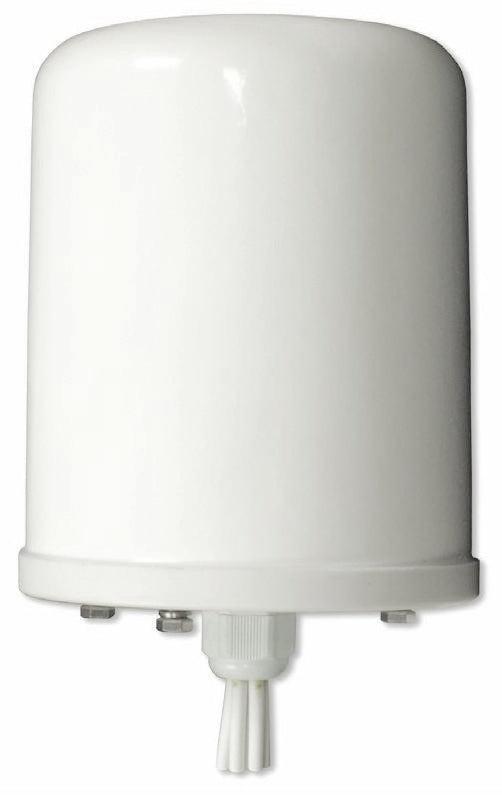

The ANT-O6ABGN-0606-O is an outdoor dual-band, six-element omni- directional antenna for use in 802.11n MIMO applications. Housed in a ruggedized fiberglass enclosure, the antenna can be mounted to a wall, beam, or mast. Each of the six MIMO antenna elements is connected to the Meru AP300 or OAP433 Access Point via a low-loss, plenum-rated, coax pigtail.

The radiation patterns are uniform and symmetrical, providing high levels of signal density into wide spaces such as warehouses or manufacturing facilities. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4–2.5 GHz or 5.150–5.850 GHz bands.
