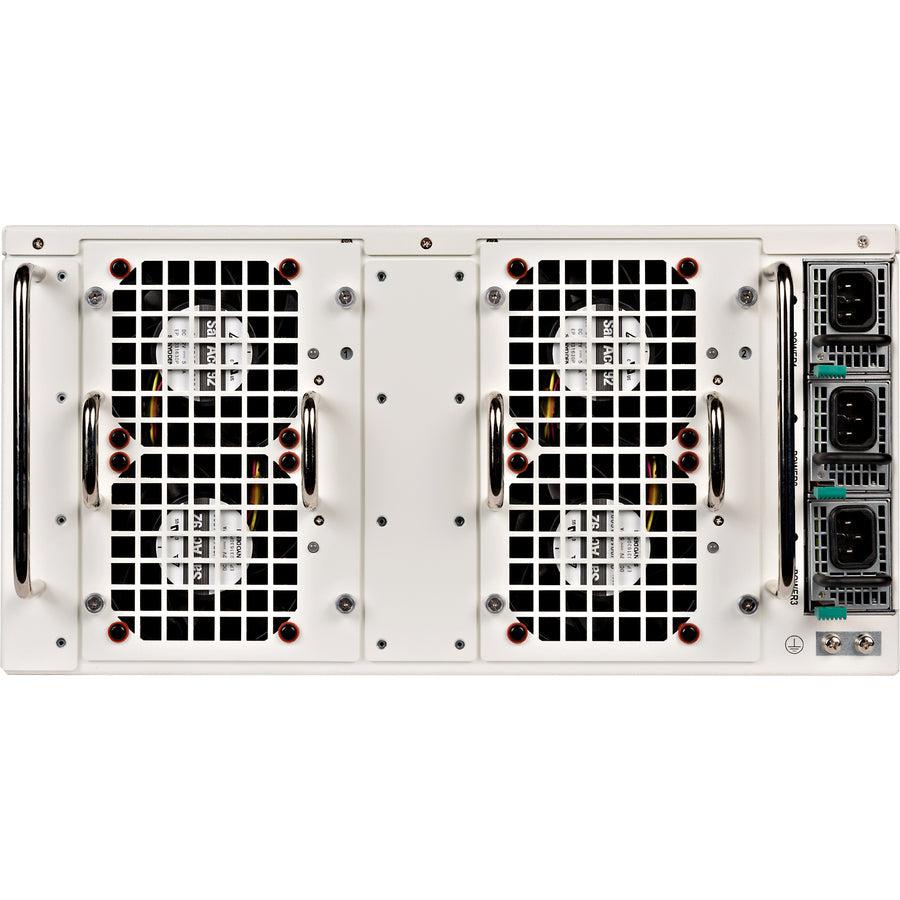

Fortinet 6x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies. Firewall throughput: 620000 Mbit/s, VPN throughput: 280000 Mbit/s, IPS/IDS throughput: 30000 Mbit/s. Heat dissipation: 7200 BTU/h, Concurrent users: 30000 user(s), Noise level: 46 dB. Number of users: 30000 user(s). Security algorithms: SHA-256, Firewall security: UDP, VPN support: IPsec, SSL. Management platform: FortiOS

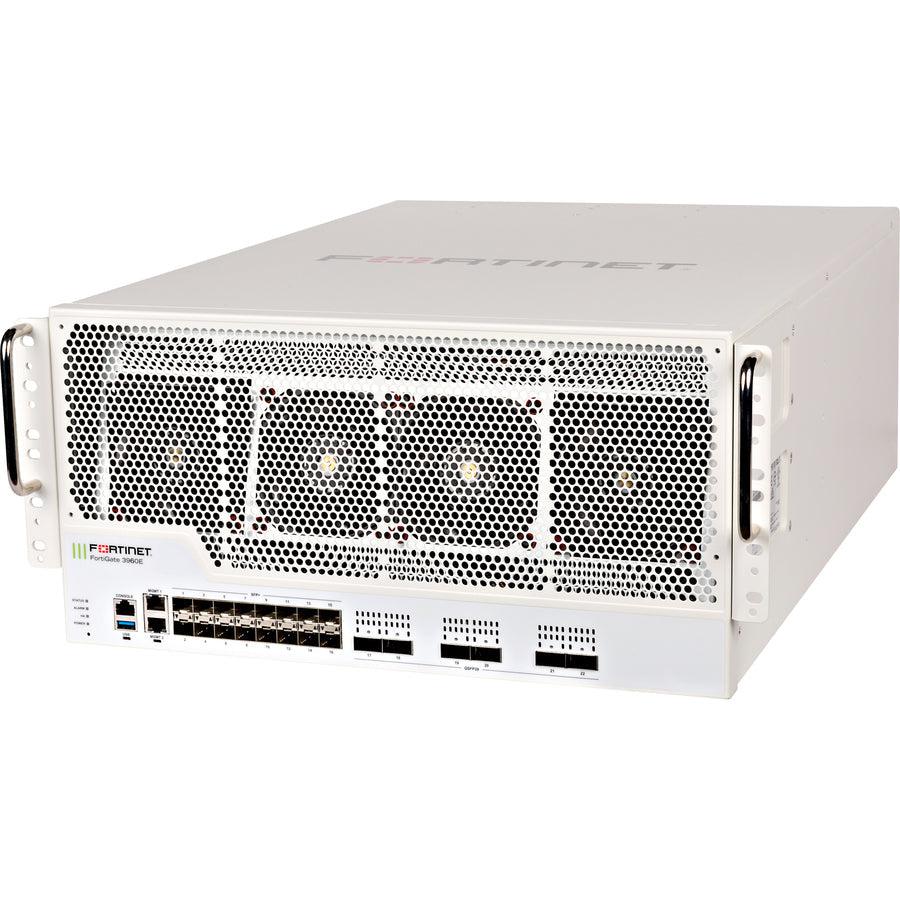

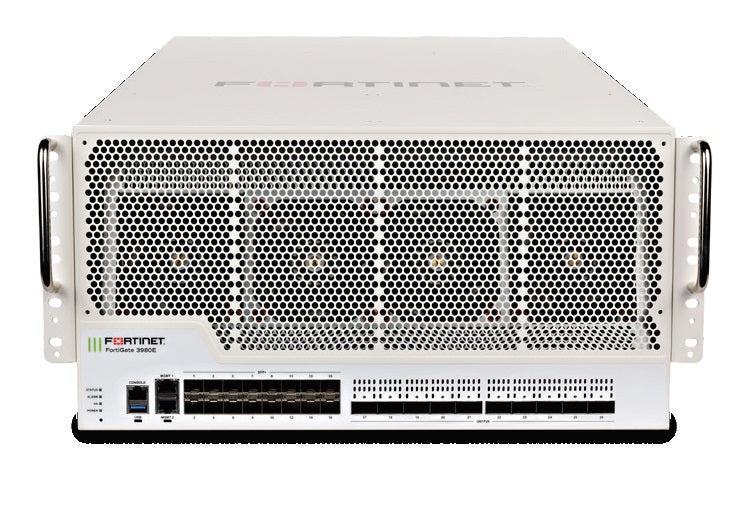

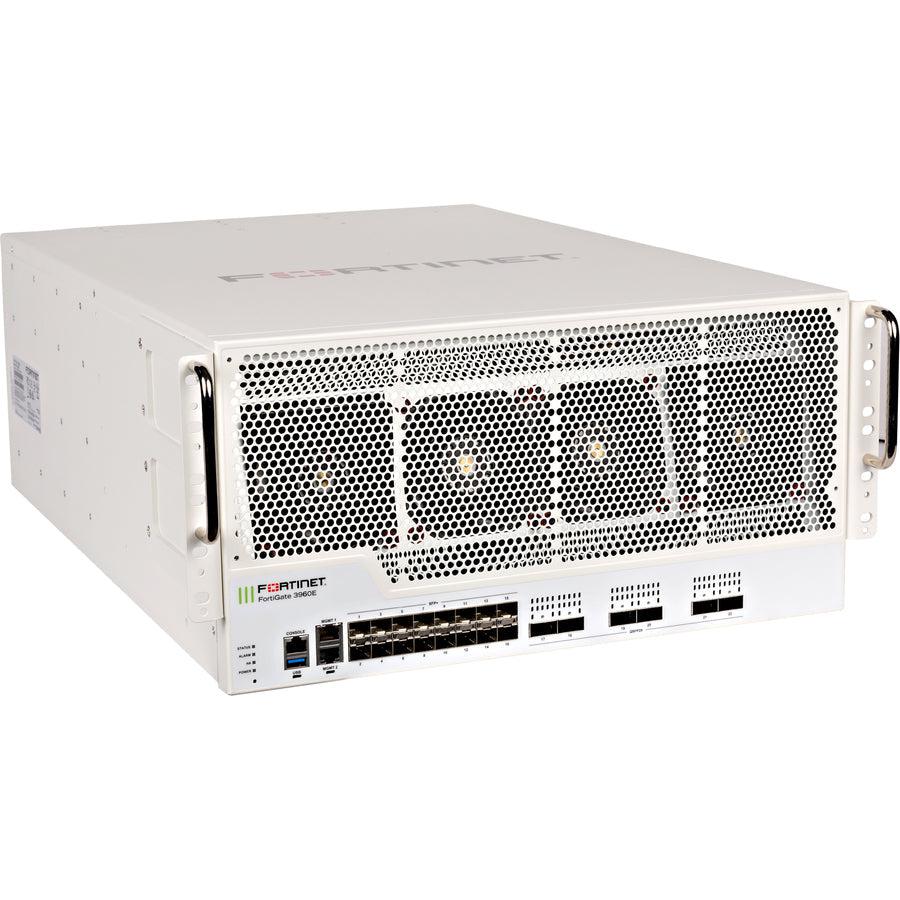

The FG-3980E and the FG-3960E enterprise firewalls deliver unprecedented network firewall and IPsec VPN throughput for large data center applications.
The FG-3980E delivers breakthrough 1 terabit per second firewall performance. The performance is validated by Ixia’s latest CloudStorm 100 GE application and security test load module. This performance enables the FortiGate 3980E to function as a data center firewall, to secure interconnectivity between data centers, or as an internal data center segmentation firewall.
Equipped with multiple 10 GE and 100 GE QSFP28 interfaces for connectivity, the 3980E leverages Fortinet’s advanced Security Processors (Network SPU) to deliver unprecedented performance, superior security efficacy and effortless scale so that enterprises don’t have to compromise between security features and network speed disruption.
