4 x 40GE QSFP+, 12 x 25GE SFP28 /10GE SFP+, 2x10GE SFP+ HA, 8 x GE SFP, 18 x GE RJ45, SPU NP7/CP9, 2 x DC

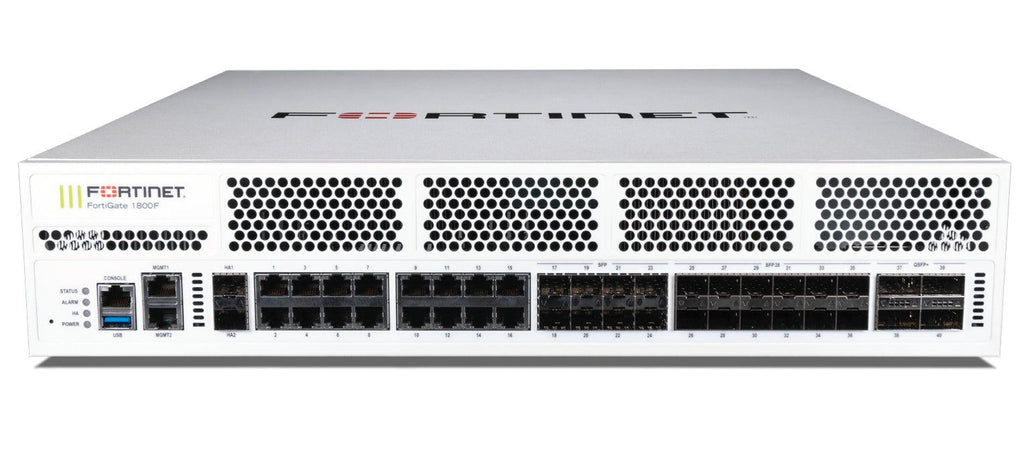

Fortinet 4 x 40GE QSFP+ slots, 12 x 25GE SFP28 /10GE SFP+ slots, 2x10GE SFP+ HA slots, 8 x GE SFP slots, 18 x GE RJ45 ports, 2x 800W DC PSU. SPU are NP7 and CP9 providing acceleration for networking and security functions.. Firewall throughput: 198000 Mbit/s, Firewall throughput: 210 Mpps, VPN throughput: 55000 Mbit/s. Heat dissipation: 1854.84 BTU/h, Noise level: 62.74 dB, Certification: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB. Management platform: FortiOS. Connectivity technology: Wired, Console port: RJ-45, Remote management port: RJ-45 (Gigabit). Form factor: 2U, Number of fans: 3 fan(s)
The FortiGate 1800F series delivers high-performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/ cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, superior security efficacy, and high throughput of the 1800F series keep your network connected and secure.
