Description

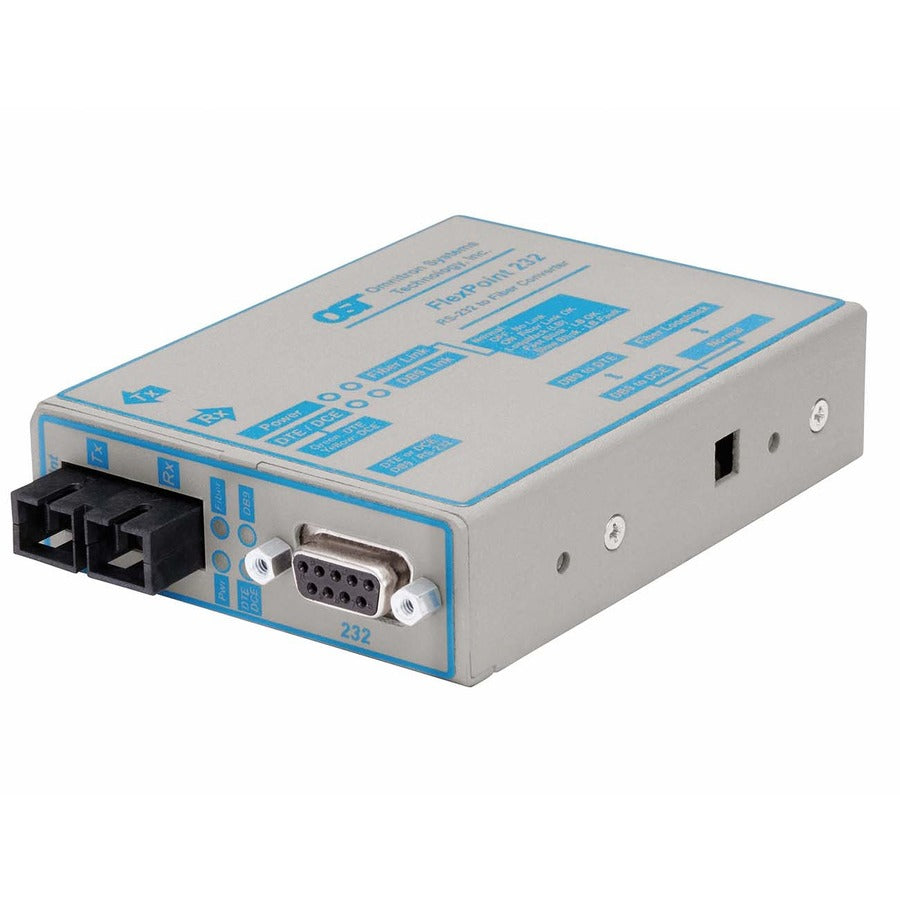

FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Multimode 2.5km - 1 x RS-232; 1 x SC Multimode; US AC Powered; Lifetime Warranty
The FlexPoint 232 is a serial RS-232 to fiber media converter, automatically supporting speeds of up to 115,200 baud. Models are available with multimode or single-mode fiber port, capable of extending serial connection up to 28km.
The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF, and hardware flow control via RTS, CTS, DCD, DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
General Information
Manufacturer
Omnitron Systems
Manufacturer Part Number
4480-1
Manufacturer Website Address
http://www.omnitron-systems.com
Brand Name
Omnitron Systems
Product Line
FlexPoint
Product Series
232
Product Model
4480-x
Product Name
FlexPoint 232 DB-9 SC Multimode 2.5km US AC Powered
Product Type
Transceiver/Media Converter
UPC
0800975027237
Height
1"
Width
3"
Depth
4"
Weight (Approximate)
6 oz
Miscellaneous
Package Contents
FlexPoint 232 DB-9 SC Multimode 2.5km US AC Powered
US Power Supply - 120Volt / 60Hz
User Manual
Environmentally Friendly
Yes
Environmental Certification
WEEE
Warranty
Limited Warranty
Lifetime
