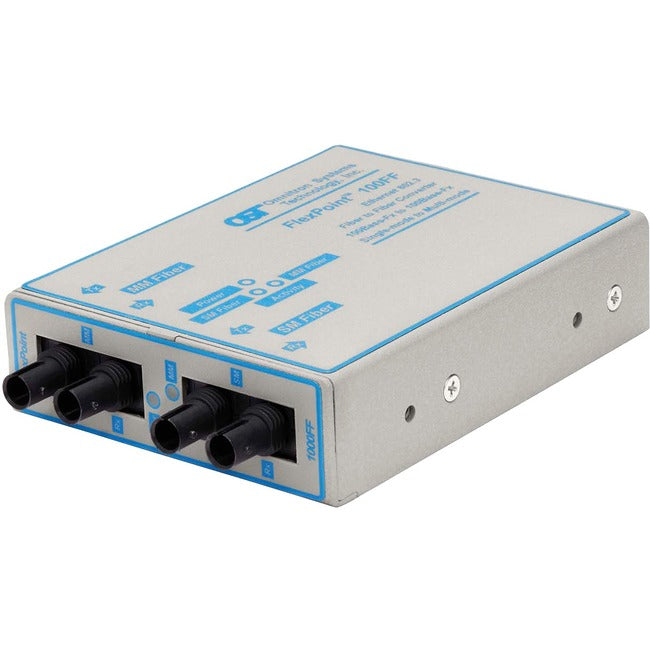

FlexPoint 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 5km to Single-Mode 60km
The FlexPoint 100FF is a protocol-transparent fiber converter that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling.
The FlexPoint 100FF is designed to operate with a constant rate signal between 1Mbps to 100Mbps allowing the converter to be used in Ethernet networks as well as other fiber-to-fiber protocol applications.
No manual configuration is required with the plug-and-play FlexPoint 100FF. Connect the fiber cables to the appropriate interface and the installation is complete.
The FlexPoint 100FF features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power and the detection of devices attached to the fiber ports.
FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.
- Expand your network capabilities with this 2 transceiver/media converter
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Country Of Origin: United States
Product Series: 100FF
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4412-x
Product Name: FlexPoint 100FF ST Multimode 5km to ST Single-Mode 60km Univ. AC Powered
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4412-2
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- FlexPoint 100FF ST Multimode 5km to ST Single-Mode 60km Univ. AC Powered
- Univ. Power Supply - 100-240Volt / 50-60Hz
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 6 oz
