Description

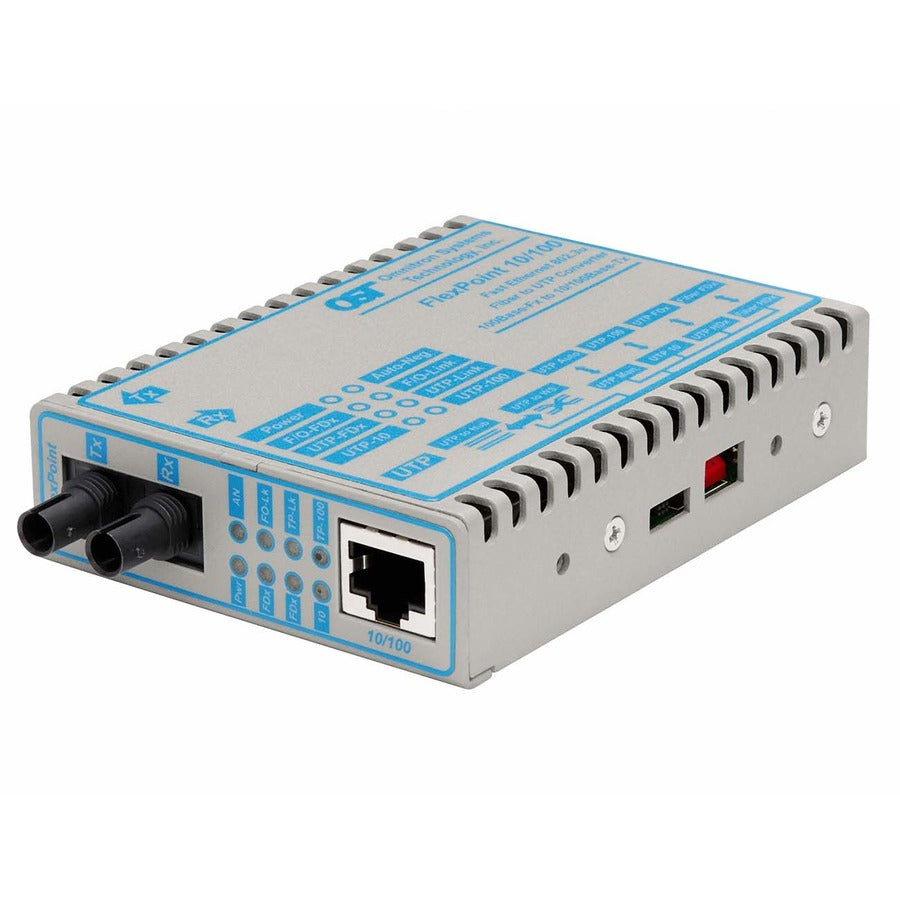

FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 ST Multimode 5km Wide Temp - 1 x 10/100BASE-TX; 1 x 100BASE-FX; DC Powered; Lifetime Warranty
The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in sta
General Information
Manufacturer
Omnitron Systems
Manufacturer Part Number
4342-9W
Manufacturer Website Address
http://www.omnitron-systems.com
Brand Name
Omnitron Systems
Product Line
FlexPoint
Product Series
10/100
Product Model
4342-x
Product Name
FlexPoint 10/100 ST Multimode 5km DC Powered Wide Temp
Product Type
Transceiver/Media Converter
UPC
0800975028562
Ethernet Technology
Fast Ethernet
Network (RJ-45)
Yes
Height
1"
Width
3"
Depth
4"
Weight (Approximate)
6 oz
Miscellaneous
Package Contents
FlexPoint 10/100 ST Multimode 5km DC Powered Wide Temp
User Manual
Environmentally Friendly
Yes
Environmental Certification
WEEE
Warranty
Limited Warranty
Lifetime
