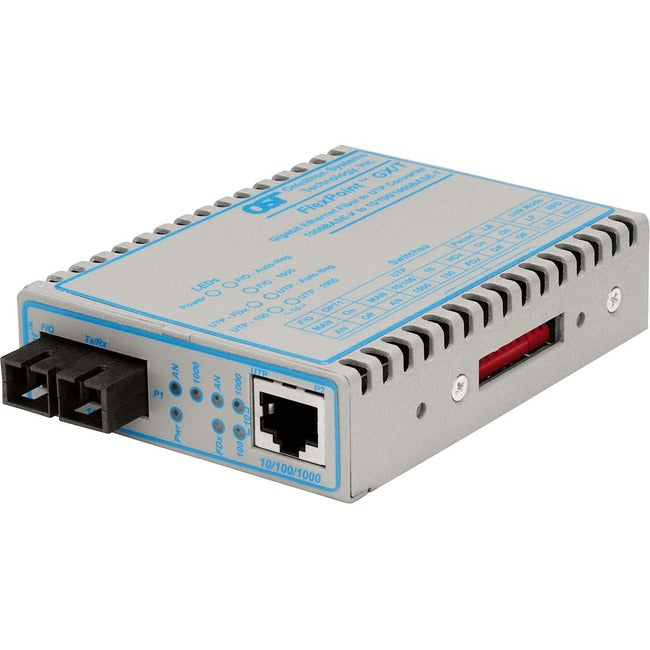

FlexPoint 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Multimode 550m
The FlexPoint GX/T is a 10/100/1000BASE-T UTP to 1000BASE-X modular fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.
The FlexPoint GX/T also supports SC and ST fixed fiber connectors for multimode, single-mode fiber; and single-mode single-fiber models are available.
Both the fiber port and the UTP port support auto-negotiation, an IEEE standard which defines how all the communicating devices automatically perform their configuration functions. Auto-negotiation achieves the best possible mode of operation (speed, duplex mode and Pause mode) between the devices.
- The FlexPoint GX/T is a 10/100/1000 copper to 100/1000* modular fiber media converter
- Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX* and 1000BASE-X specifications
- Fiber port supports multimode and single-mode fiber with ST and SC connectors and single-fiber with SC connectors
- Supports dual fiber and single-fiber 100BASE-FX or 1000BASE-X SFP transceivers for standard or CWDM wavelengths
- Both the fiber and UTP ports support auto-negotiation
- Provides Remote Fault Indicators to signal loss of link for Far-End Fault and Link Fault conditions
- UTP port supports 10/100/1000Mbps and Half/Full-Duplex
- Auto or manually configured Pause function for flow control
- Supports jumbo frames up to 10,240 bytes
- Loopback mode supports end-to-end testing
- User-selectable Link Modes for quick fault detection
- Diagnostic and DIP-switch configurations are displayed with status LEDs for quick and easy installation
- Tabletop, wall-mounted, rack-mounted in a 5-Module shelf or in a 14-Module power-redundant chassis options
- Lifetime Warranty and free 24/7 Technical Support
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GX/T
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 4700-x
Product Name: FlexPoint GX/T SC Multimode 550m US AC Powered
Package Type: Retail
Product Line: FlexPoint
Manufacturer Part Number: 4700-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- FlexPoint GX/T SC Multimode 550m US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 6 oz
