Icy Dock FlexiDOCK MB024SP-B Drive Enclosure 12Gb/s SAS, SATA/600 - Serial ATA/600 Host Interface External - Black

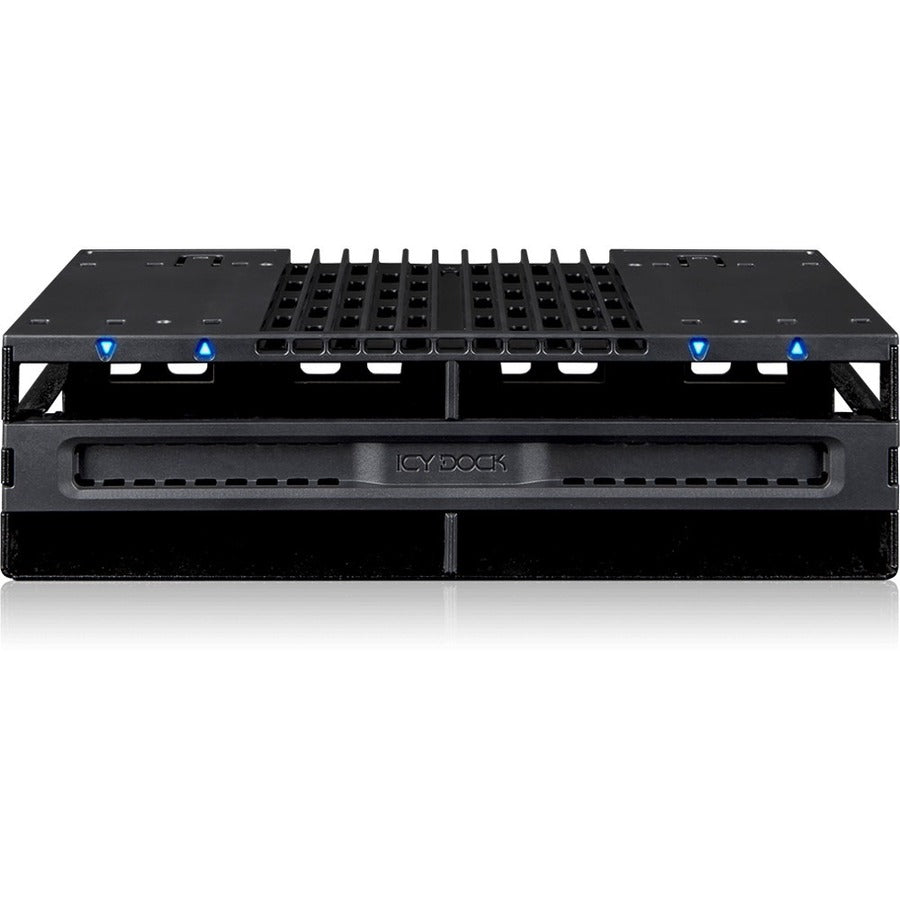

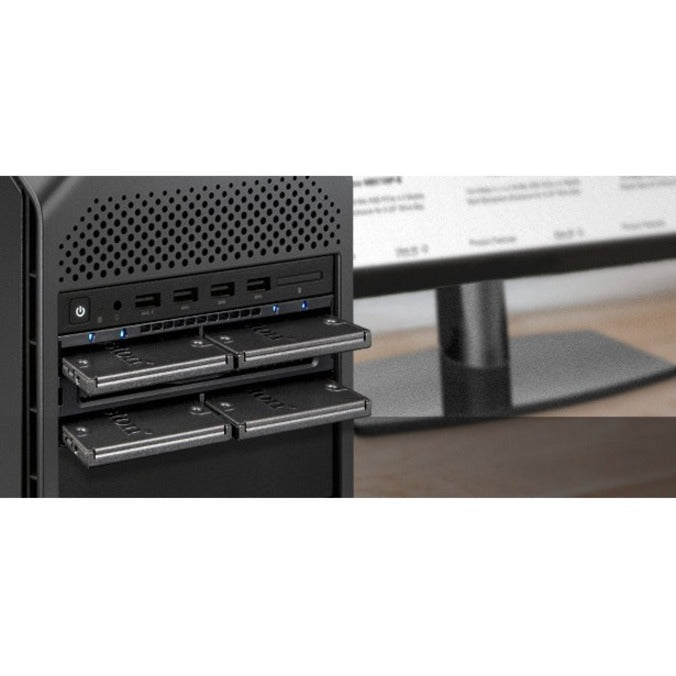

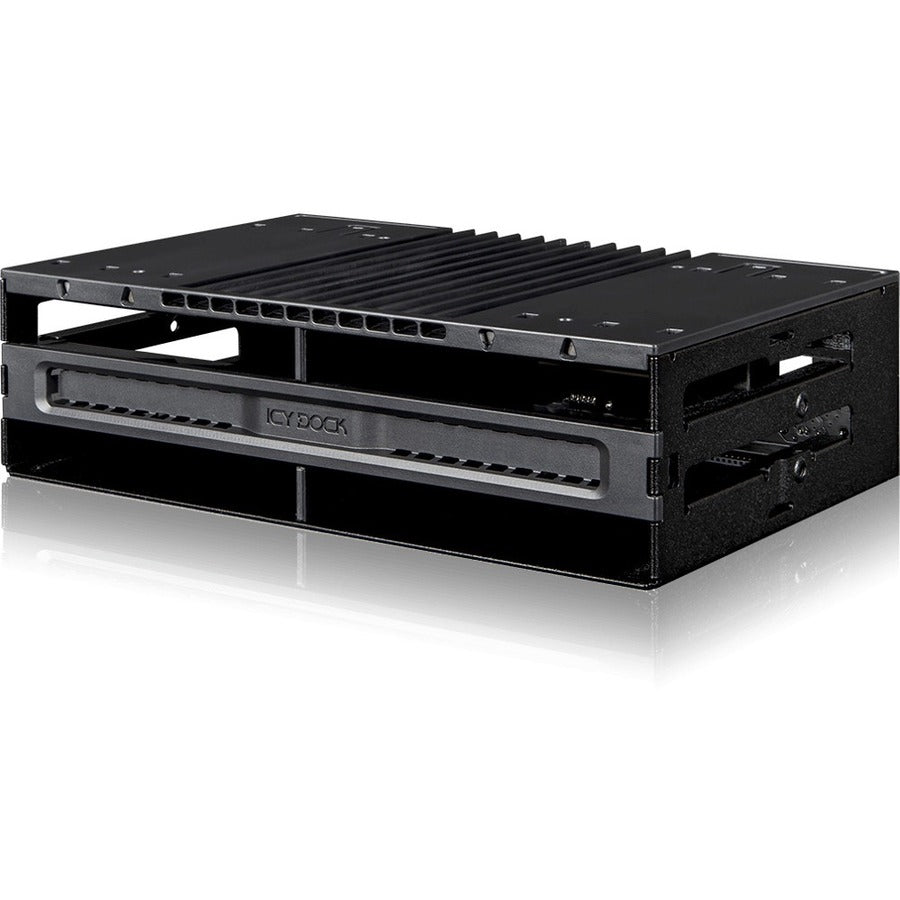

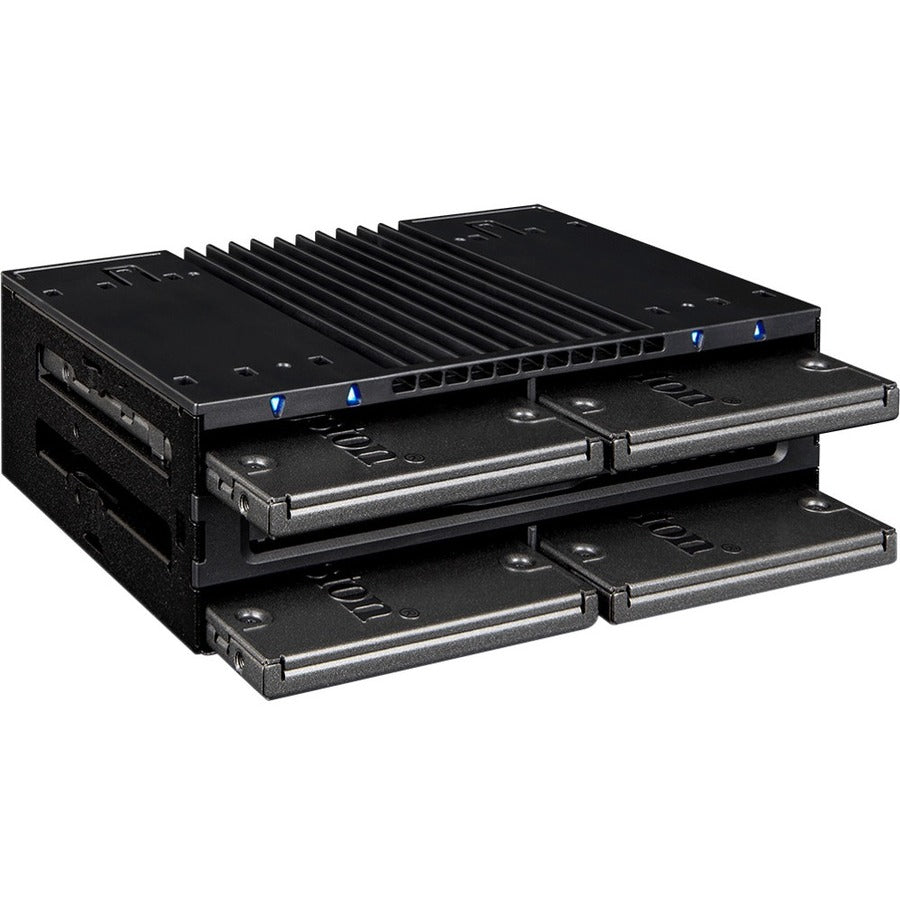

The flexiDOCK MB024SP-B is a tray-less four-bay drive enclosure that allocates 2.5" SAS/SATA drives to the frontal 5.25" drive bay of any computer system for easy drive-swapping and accessibility. It supports four 2.5" SAS/SATA hard drives or solid-state drives up to 9.5mm height and utilizes the SATA III 6Gbps transfer speed.
Tray-less & Tool-less Drive Swap

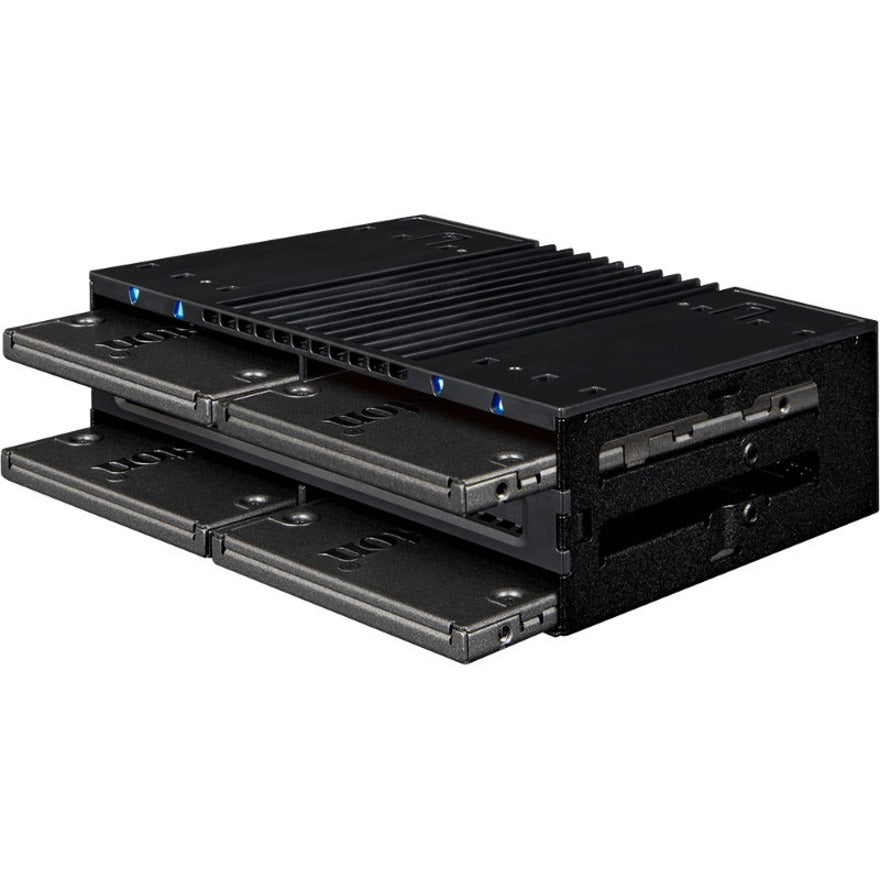

With the simplistic tray-less docking style design, installing or removing the drives has never been more straightforward. Simply slide in 2.5" hard drives (HDDs) or solid-state drives (SSDs) to quickly access your data and safely ejecting by pulling the drive out manually.
Trim off the Fan, Going Stealth
The exhaust fan is purposely removed on MB024SP-B to reduce any high pitch noise produced by the fan. It is designed to emit minimal sound interference and is suitable for any low acoustic required environment.
Additionally, by allowing additional free space in the rear of the unit, MB024SP-B is shorter in depth and can fit into most computer chassis where space constraint is critical.
Maximum Passive Cooling Design
More than 100 ventilation holes/cutouts are strategically placed throughout the enclosure and backplane for maximum passive cooling effect. In addition, the honeycomb air vents located at the front and rear of the device work perfectly with the computer's cooling fan, quickly remove trapped heat around the drives and keep your 2.5" drives running at optimal temperatures.
Pack with Features

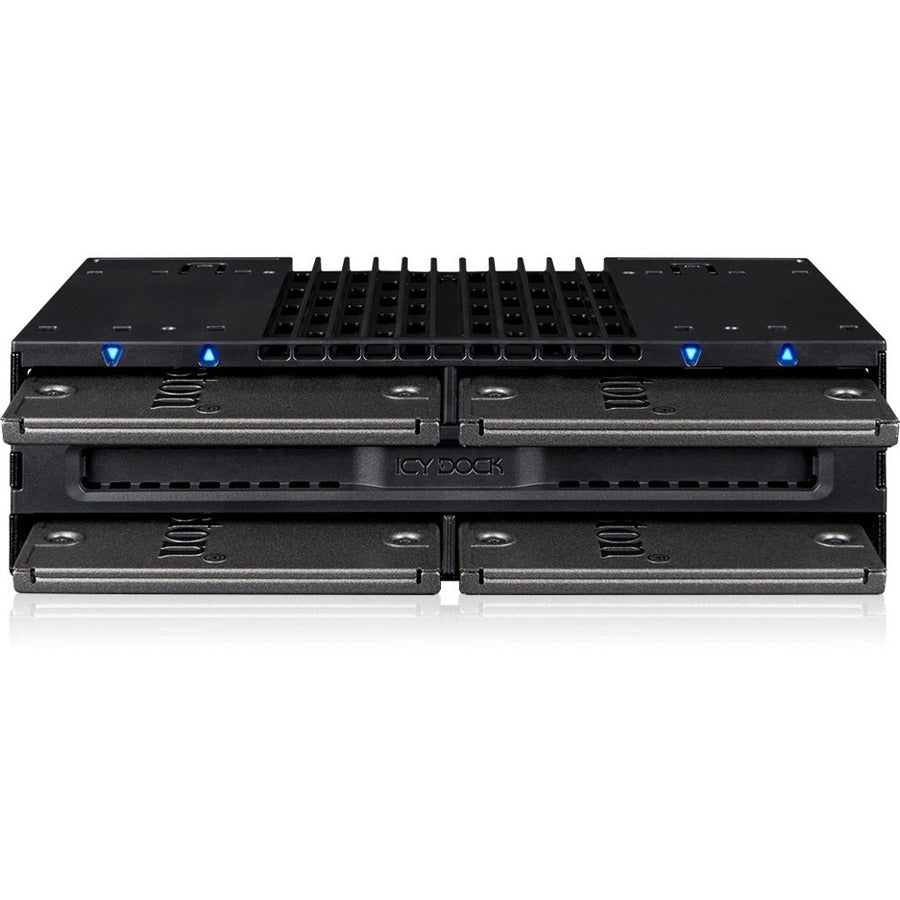

The flexiDOCK MB024SP-B has four easy-to-read individual soft blue drive status LEDs to indicate the drive status - a solid blue light indicates a drive is inserted and has power, a flashing blue light indicates the drive is in use.

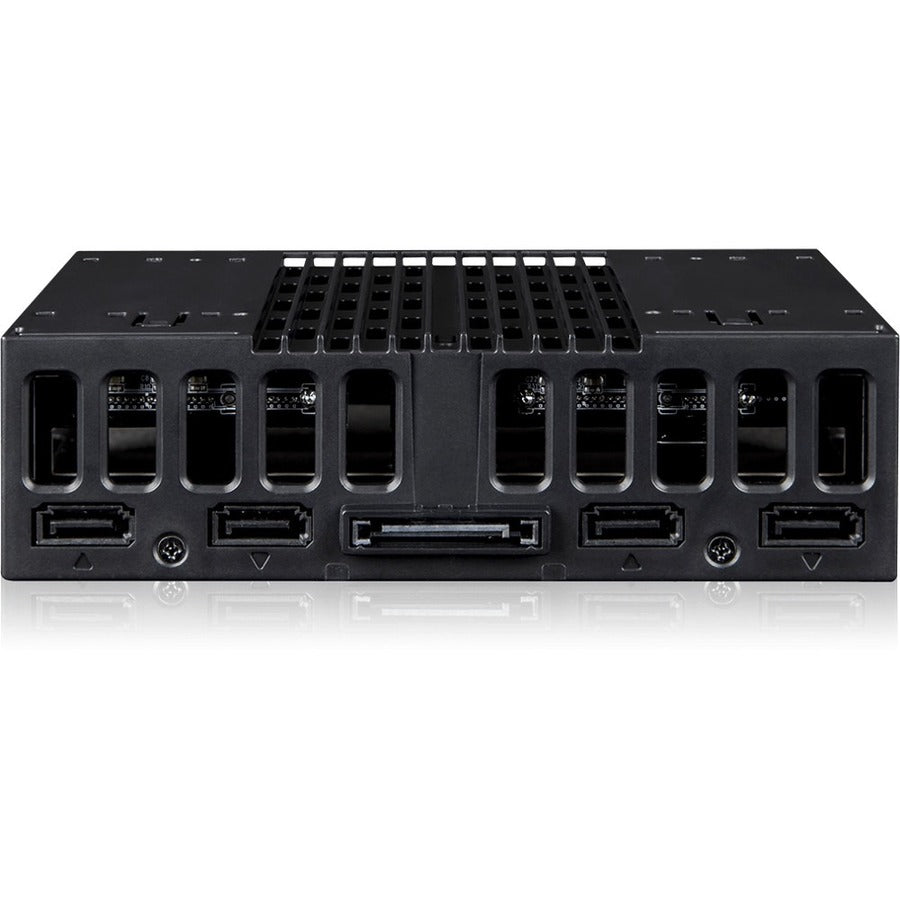

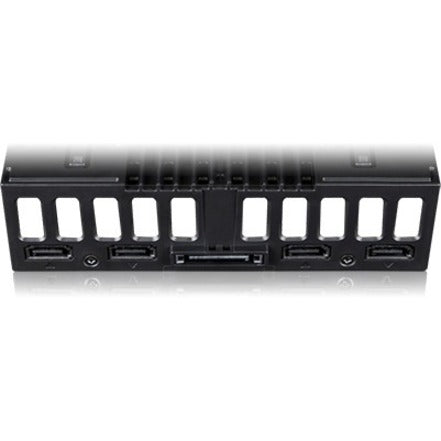

To ensure solid connectivity between the device and system, the flexiDOCK MB024SP-B supports both 7-pin SATA data and 15-pin SATA power cables with locking latches to avoid accidental disconnections. Once the cables are connected, they will lock into place.
The metal outer chassis provides a long lifespan and superior protection to the drives. In addition, the robust ABS plastic top, front, and interior structure offer excellent air ventilation and drive stability system without sacrificing strength.
Optional: M.2 SATA SSD to 2.5" Form Factor Adapter | EZConvert MB703M2P-B
If you are looking to use M.2 SATA SSD with the flexiDOCK MB024SP-B, pair it with our EZConvert MB703M2P-B, M.2 SSD to 2.5" form factor adapter. It features a tool-less adjustable M.2 locker to secure your drives in place.
- Supports 4x 2.5" SAS/SATA HDDs/SSDs (up to 9.5mm drive height)
- Install into any standard external 5.25" drive bay
- Supports SATA 6Gbp/s transfer speeds & SAS up to 12Gbp/s (SAS host required)
- Tray-less and door-less design for hot-swapping bare drives without tools or screws
- Reduce cable clutter by using a single 15-pin SATA power connection to power four drives
- Soft blue drive activity LED for each drive (Solid blue for power and flashing blue for drive activity)
- Supports SATA 7-pin data and 15-pin power cables with a locking latch design
- Industry-leading 3-year warranty against all defects
- Active Power Technology (APT) - only powers up if there is a drive inserted into the drive bay
- More than 100 ventilation holes are strategically placed throughout the enclosure for maximum passive cooling effect
Product Type: Drive Enclosure
Environmentally Friendly: Yes
Environmental Certification: REACH
Product Color: Black
Product Material: Plastic
Brand Name: Icy Dock
Form Factor: External
Manufacturer: Icy Dock
Product Model: MB024SP-B
Product Name: Tray-less 4x 2.5" SAS/SATA SSD/HDD Mobile Rack for 5.25" Bay
Product Line: FlexiDOCK
Manufacturer Part Number: MB024SP-B
Manufacturer Website Address: http://www.icydock.com
Limited Warranty: 3 Year
Weight (Approximate): 7.84 oz
