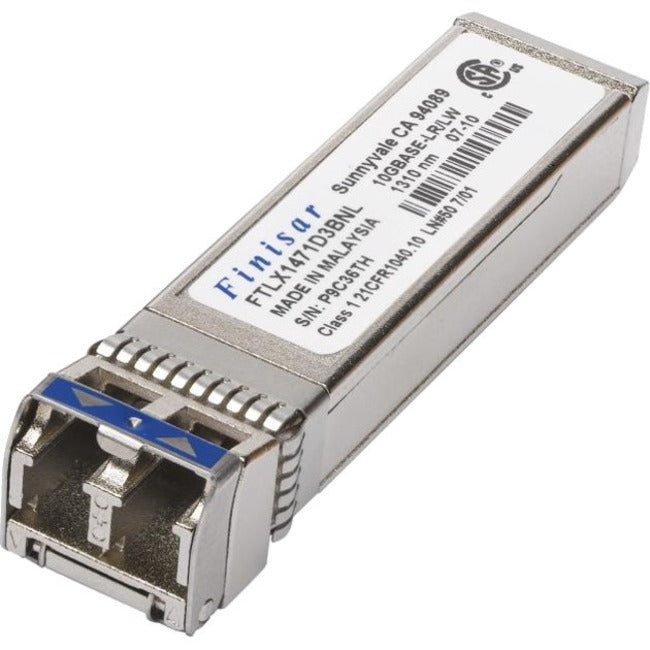

Finisar Sfp+ Module FTLX1475D3BNL

Finisar SFP+ Module

Extended Temperature FTLX1475D3BNL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX1475D3BNL is a "limiting module" , i.e., it employs a limiting receiver. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

• Hot-pluggable SFP+ footprint


• Supports 9.95 to 10.5Gb/s bit rates


• Power dissipation < 1W


• RoHS compliant


• Single 3.3V power supply


• Maximum link length of 10km


• Uncooled 1310nm DFB laser


• Limiting electrical interface receiver


• Duplex LC connector


• Built-in digital diagnostic functions

Product Type: SFP+
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Malaysia
Brand Name: Finisar
Form Factor: Hot-pluggable
Manufacturer: Finisar Corporation
Product Name: SFP+ Module
Manufacturer Part Number: FTLX1475D3BNL
Manufacturer Website Address: http://www.finisar.com
