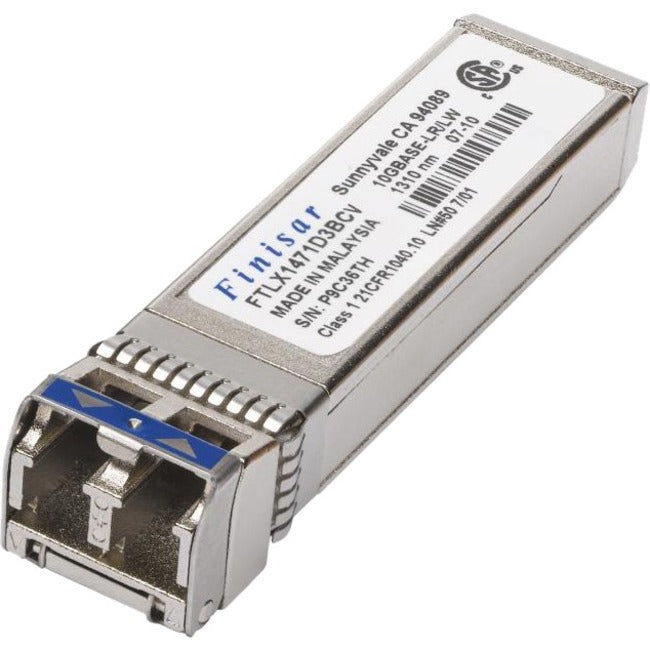

Finisar FTLX1475D3BCV SFP+ Module
Finisar's FTLX1475D3BCV 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over Single Mode Fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. The FTLX1475D3BCV employs a limiting receiver. The transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
- Hot-pluggable SFP+ footprint
- Supports rate selectable 1.25 Gb/s and 9.95 to 10.5 Gb/s bit rates
- Power dissipation < 1W
- RoHS-6 compliant (lead-free)
- Single 3.3V power supply
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
- Commercial temperature range: -5°C to 70°C
Product Type: SFP+
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Brand Name: Finisar
Compatibility: MSA Compliant
Form Factor: Hot-pluggable
Manufacturer: Finisar Corporation
Product Model: FTLX1475D3BCV
Product Name: FTLX1475D3BCV SFP+ Module
Manufacturer Part Number: FTLX1475D3BCV
Manufacturer Website Address: http://www.finisar.com
