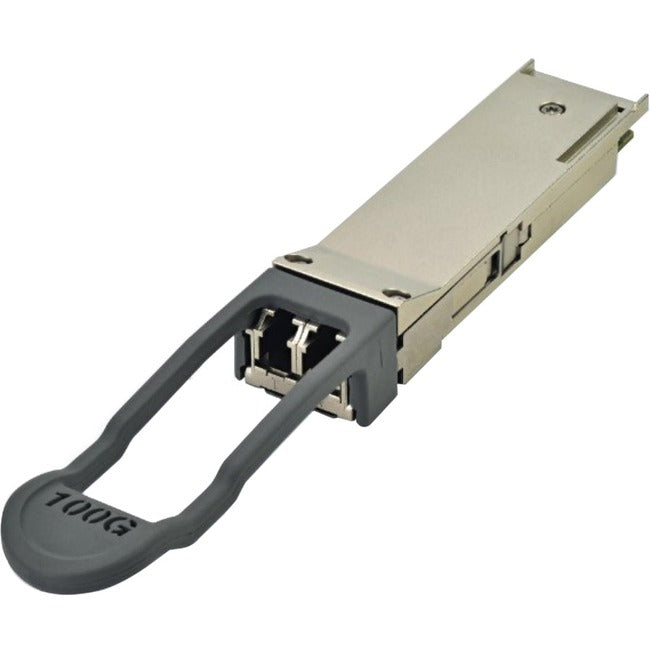

Finisar 100G 100m SWDM4 QSFP28 Optical Transceiver FTLC9152RGPL

Finisar 100G 100m SWDM4 QSFP28 Optical Transceiver

Finisar's FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2171. The transceiver is RoHS-6 compliant per Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

• Hot-pluggable QSFP28 form factor


• Supports 103.1Gb/s aggregate bit rate


• Power dissipation <3.5W


• RoHS-6 compliant


• Commercial case temperature range of 0°C to 70°C


• Single 3.3V power supply


• Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)


• 4x25Gb/s 850nm VCSEL-based transmitter


• 4x25G CAUI-4 electrical interface


• Duplex LC receptacles

Product Type: QSFP28
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Finisar
Compatibility: MSA Compliant
Form Factor: Hot-pluggable
Manufacturer: Finisar Corporation
Product Model: FTLC9152RGPL
Product Name: 100G 100m SWDM4 QSFP28 Optical Transceiver
Manufacturer Part Number: FTLC9152RGPL
Manufacturer Website Address: http://www.finisar.com
