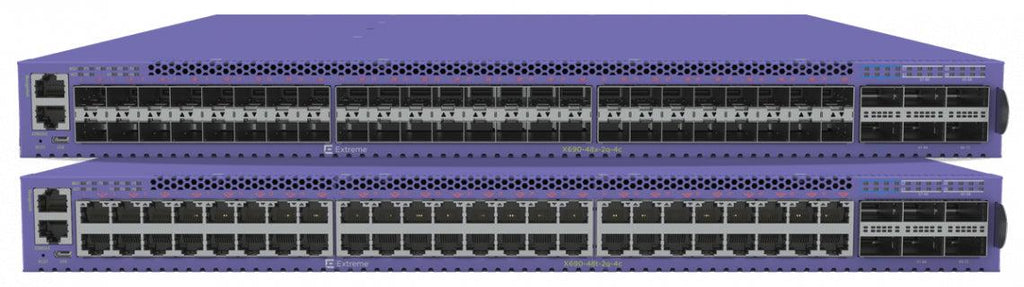

Extreme Networks X690-48X-2Q-4C L2/L3 None Black

X690-48X-2Q-4C, 48x 1Gb/10Gb SFP+, 2x 10Gb/40Gb QSFP+, 4x 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28, Micro-USB, 2.4GHz Quad core CPU, 8 GB DDR3, 32GB SSD, 441x488x43 mm

Extreme networks X690-48x-2q-4c. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: None, Console port: RJ-45. MAC address table: 272000 entries, Switching capacity: 1760 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ae,IEEE 802.3ba

High-Density, Advanced 10Gb Enterprise LAN and Data Center Leaf Switching
The ExtremeSwitching X690 product family are high-density, purpose-built 10Gb/100Gb switches designed for high-performance enterprise and cloud data centers. The X690 can support a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40Gb, 50Gb and 100Gb, all in a compact 1RU form factor. This enables the ExtremeSwitching X690 to be flexibly deployed in either Enterprise LAN or high-density top of rack data center architectures. Low-latency switching and an advanced feature set make it ideal for highperformance data center applications.

Extended Edge Switching
The X690 Series can serve as the controlling aggregation switch within Extreme's innovative Extended Edge Switching solution, simplifying the deployment and operation of connected edge switches. With both copper and fiber high-density 10Gb port options, the X690 Series can also flexibly accommodate top of rack and spine/leaf deployments.

ExtremeXOS Intelligent L2/L3 Switching
The ExtremeSwitching X690 Series supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing. The X690 Series simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products.

High-Performance 400Gb Stacking
The X690 Series supports SummitStack-V400 400Gbps high-speed stacking using 2 100Gb ports. Up to 8 X590, X690 or X870 systems can be stacked using SummitStack-V400. Any of the supported 100Gb QSFP28 direct attach cables and optical transceivers can be used for the stacking links.
