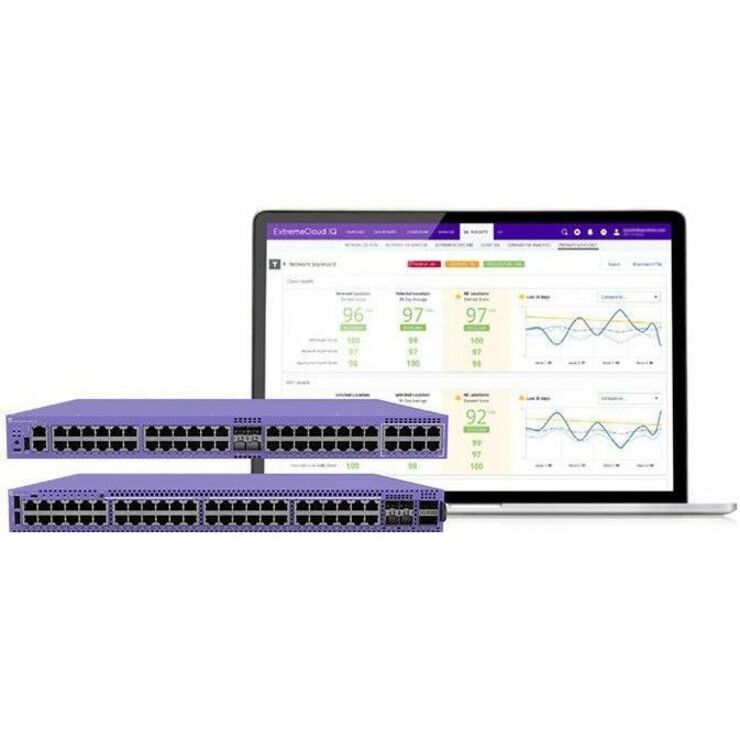

Extreme Networks 4120-48MW-4Y Multi-Gigabit PoE Switch
The Extreme Networks 4120-48MW-4Y is a cloud-managed stackable switch engineered for enterprise networks demanding high-performance connectivity and simplified management. This 48-port managed switch delivers 2.5 Gigabit PoE capabilities across all access ports, making it ideal for organizations deploying IoT devices, IP cameras, wireless access points, and modern endpoint infrastructure. Built on the proven 4000 series platform, the 4120-48MW-4Y combines enterprise-grade reliability with flexible uplink options—perfect for data centers, campus networks, and service provider environments requiring TAA compliant equipment for government and regulated procurement.
Key Features
- 48x 10M/100M/1G/2.5GBaseT 90W PoE ports for maximum device flexibility
- 4x 25G SFP28 high-speed uplink ports for backbone connectivity
- 2x 100G QSFP28 universal stack ports for multi-switch deployments
- Cloud-managed architecture with centralized policy and monitoring
- Stackable design supporting up to 6 units for scalable network growth
- L3 managed switching with advanced routing and VLAN capabilities
- 840 Gbps aggregate bandwidth and 625 Mpps throughput
- Fixed fan cooling with redundant power supply architecture
- Rack-mountable form factor for standard 19-inch installations
- TAA compliant for government, education, and regulated sector deployments
Technical Specifications
| Specification |
Details |
| Manufacturer |
Extreme Networks Inc |
| Part Number |
4120-48MW-4Y-TAA |
| Product Series |
4000 Series |
| Port Configuration |
48x 2.5GBaseT PoE + 4x 25G SFP28 + 2x 100G QSFP28 |
| PoE Power per Port |
90W (4,320W total budget) |
| Management Type |
Cloud-managed, L3 Managed |
| Switching Fabric |
840 Gbps aggregate bandwidth |
| Throughput |
625 Mpps (million packets per second) |
| Stacking |
Stackable up to 6 units via 100G ports |
| Power Supply |
1x internal fixed AC PSU + 1x modular PSU slot |
| Cooling |
Fixed fan system |
| Form Factor |
Rack-mountable (19-inch standard) |
| Compliance |
TAA Compliant |
Frequently Asked Questions
What is a multi-gigabit PoE switch and why do I need one?
A multi-gigabit PoE switch delivers data and power over a single cable to networked devices. The 4120-48MW-4Y's 2.5G ports support modern high-bandwidth devices like 4K IP cameras, Wi-Fi 6 access points, and IoT sensors while eliminating separate power infrastructure. This reduces installation costs and simplifies network design.
Is the Extreme Networks 4120-48MW-4Y suitable for government procurement?
Yes. The 4120-48MW-4Y is TAA compliant, meeting Trade Agreements Act requirements for government and regulated sector purchases. This certification ensures the switch meets domestic content and sourcing standards required by federal agencies and institutions.
How does cloud management simplify network operations?
The cloud-managed architecture enables centralized policy deployment, real-time monitoring, and remote troubleshooting across multiple switches from a single dashboard. This reduces on-site management overhead and accelerates network provisioning for distributed deployments.
Can I stack multiple 4120-48MW-4Y switches together?
Yes. The 4120-48MW-4Y supports stackable configurations with up to 6 units connected via the 2x 100G QSFP28 stack ports. Stacking simplifies management by treating multiple switches as a single logical entity while maintaining individual port density.
