Description
- 1080p@60fps Video Capture
- 2k@120fps HDR Advanced Pass Through
- 4K@60fps HDR Pass Through

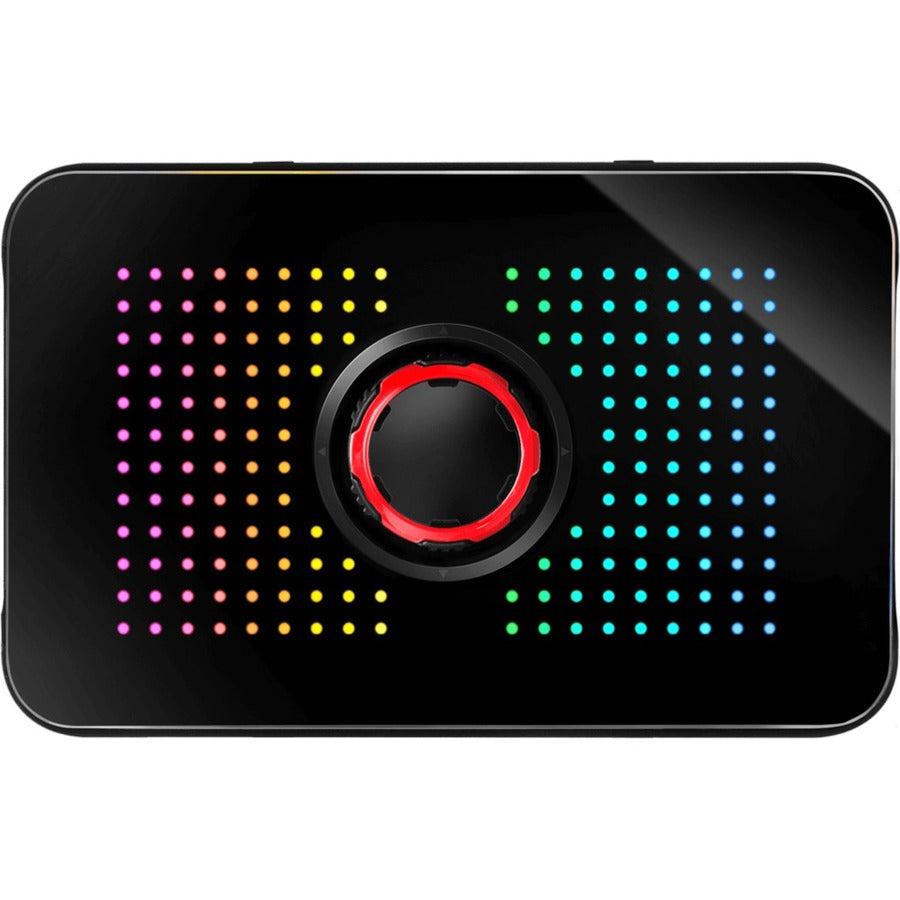

- Built in Audio Mixer via Control Dial
- Certified for OBS

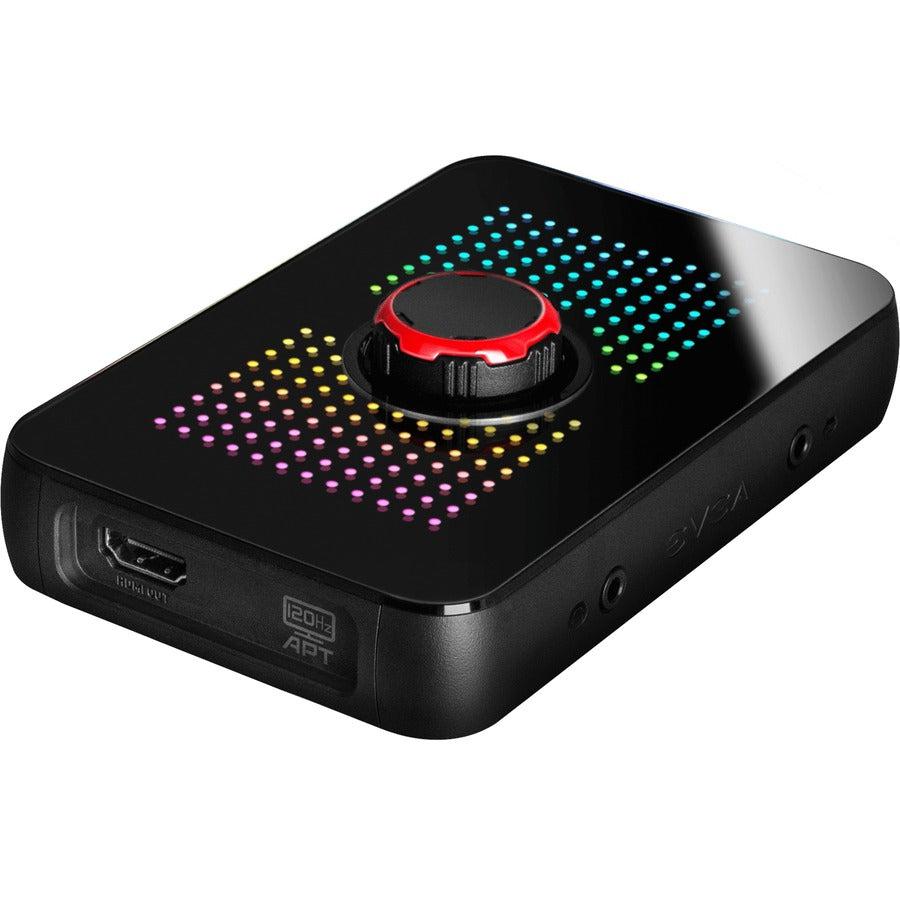

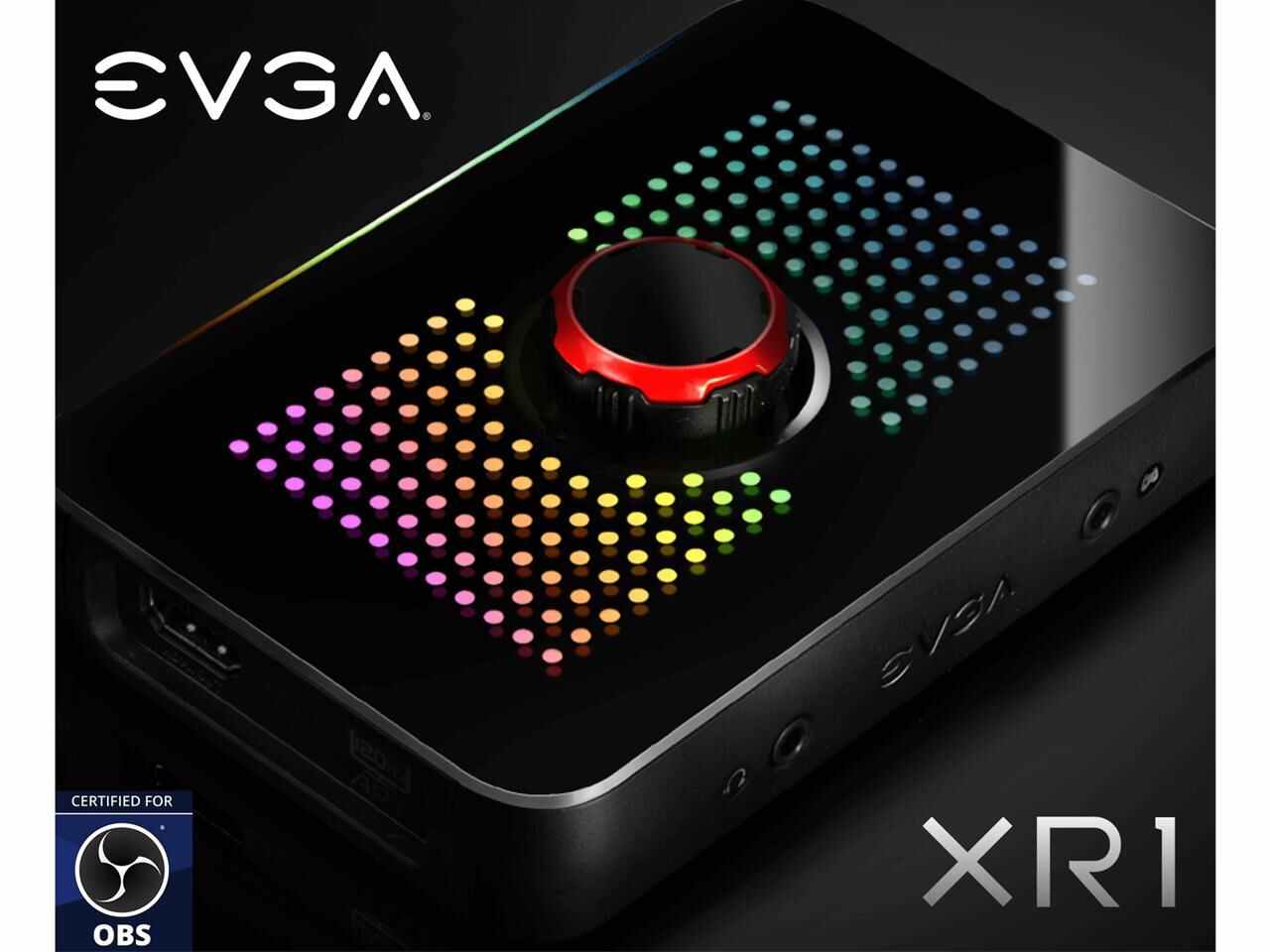

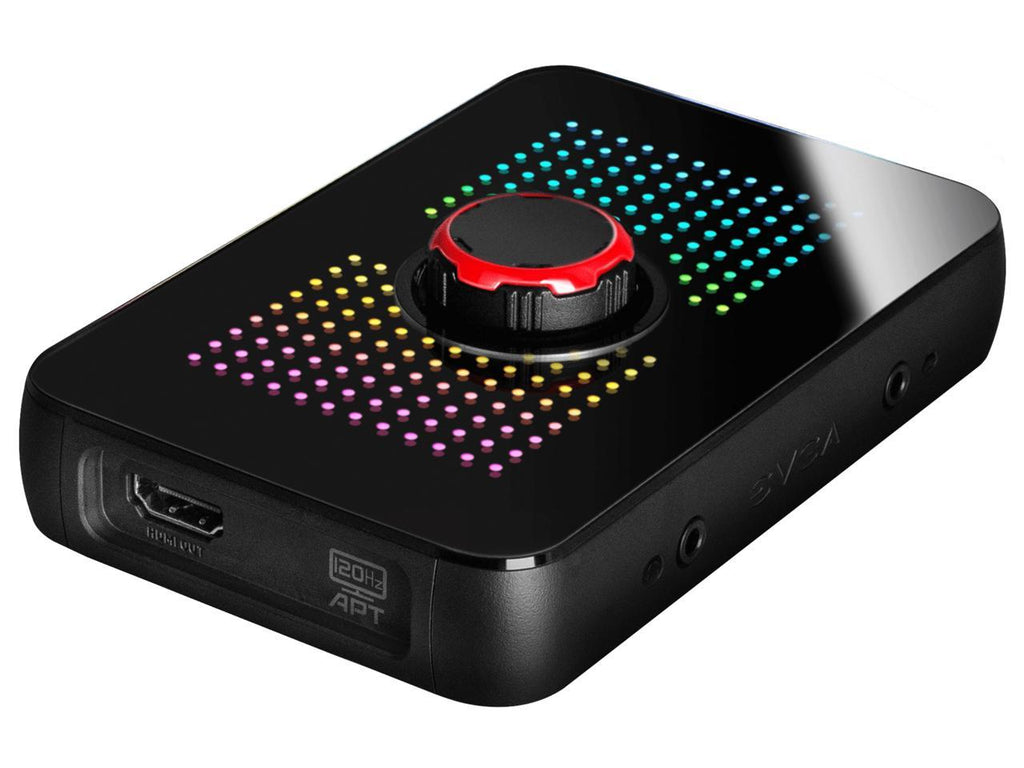

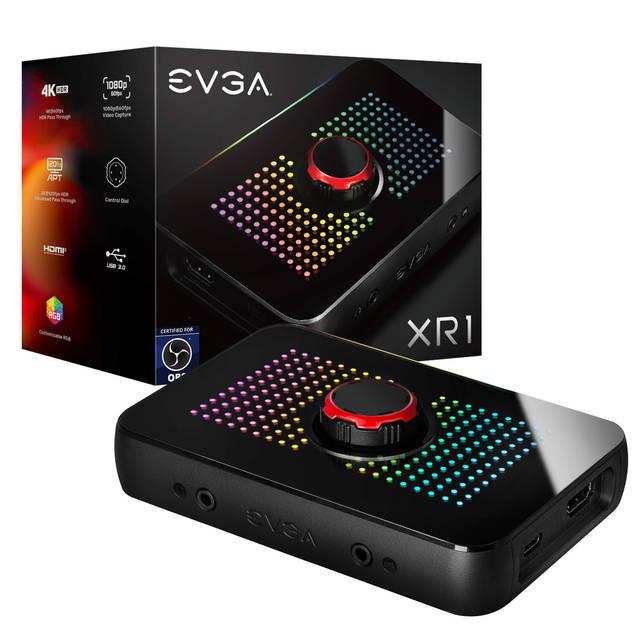

The EVGA XR1 Capture Device allows you to share the world with 4K HDR Pass Through Mode - Record at 1080P/60FPS while you game at 4K/60FPS with HDR. Also features an Advanced Pass Through Mode that allows you to switch to 144Hz refresh rate + HDR with the press of a button.
No need to disconnect or disable to get the full capabilities of your display!
SPECS

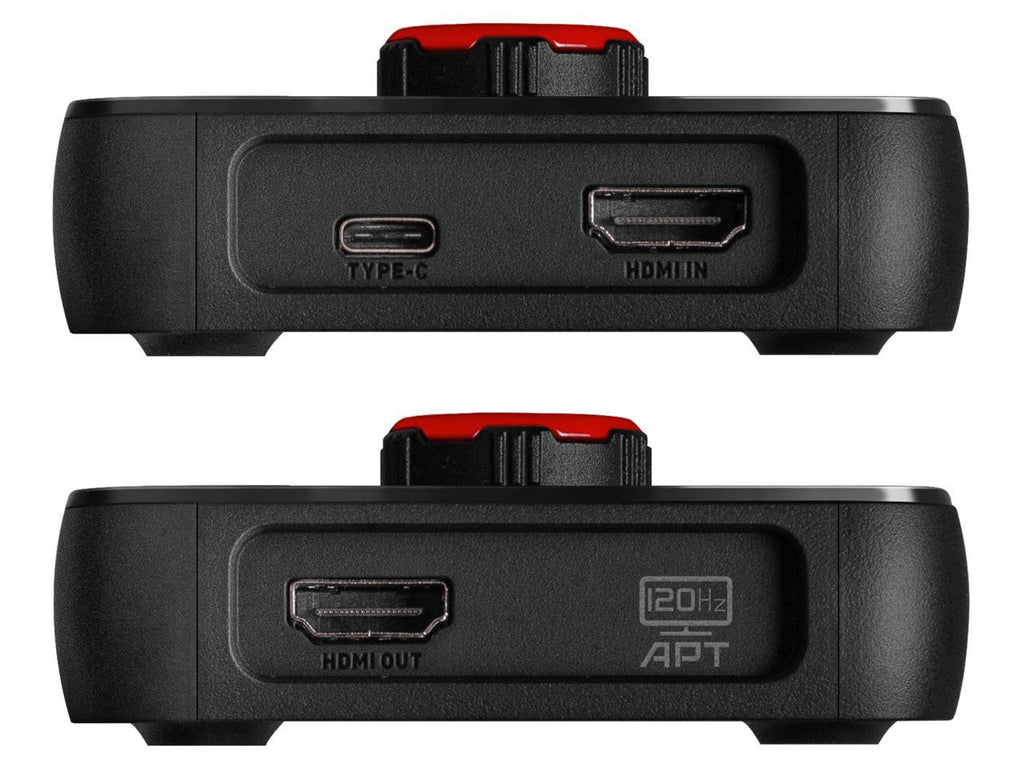

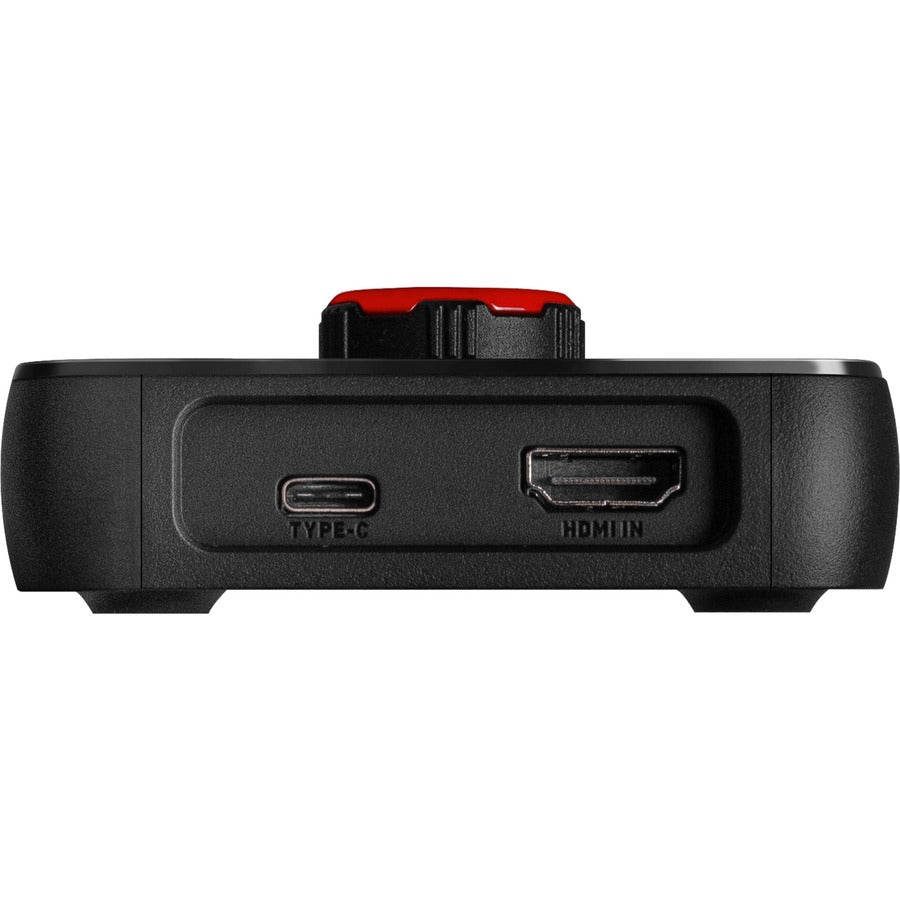

Interface:
USB 3.0 Type-C
Video Input Interface:
HDMI 2.0 (up to 4k@60fps)
Audio Input Interface:
HDMI

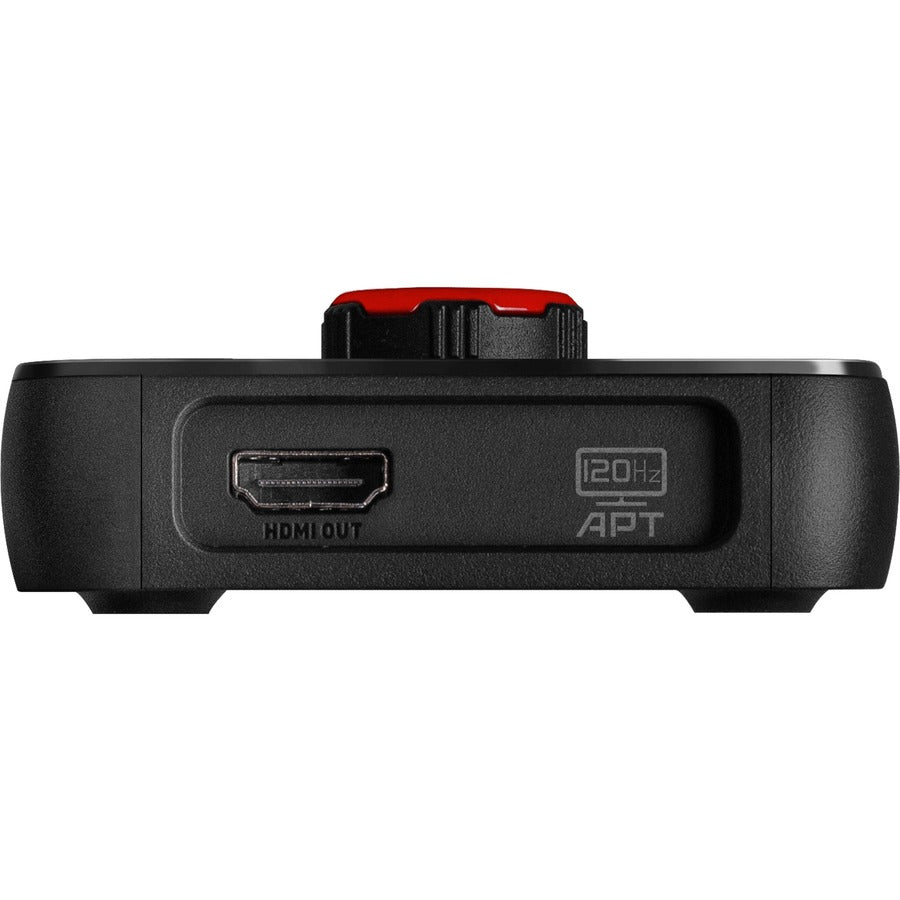

Video Bypass:
HDMI (up to 4k@60fps)
Video Resolution Input:
480p / 576p / 720p / 1080p / 1440p / 2160p@60fps
Video Resolution Pass Through:
480p / 576p / 720p / 1080p / 1440p / 2160p@60fps
Video Resolution Advanced Pass Through:
720p / 1080p / 1440p@120fps
Encode Resolution:
Up to 1080p @ 60fps
Encode Format:
RAW
FEATURES
1080p@60fps Video Capture
2K@120fps HDR Advanced Pass Through
4K@60fps HDR Pass Through
Built in Audio Mixer via Control Dial
DIMENSIONS
With Control Dial:
Width: 130mm
Length: 86.4mm
Height: 32.95mm
Without Control Dial:
Width: 130mm
Length: 86.4mm
Height: 24.15mm
Weight:
159g
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
General Information
| Manufacturer | EVGA Corporation |
|---|---|

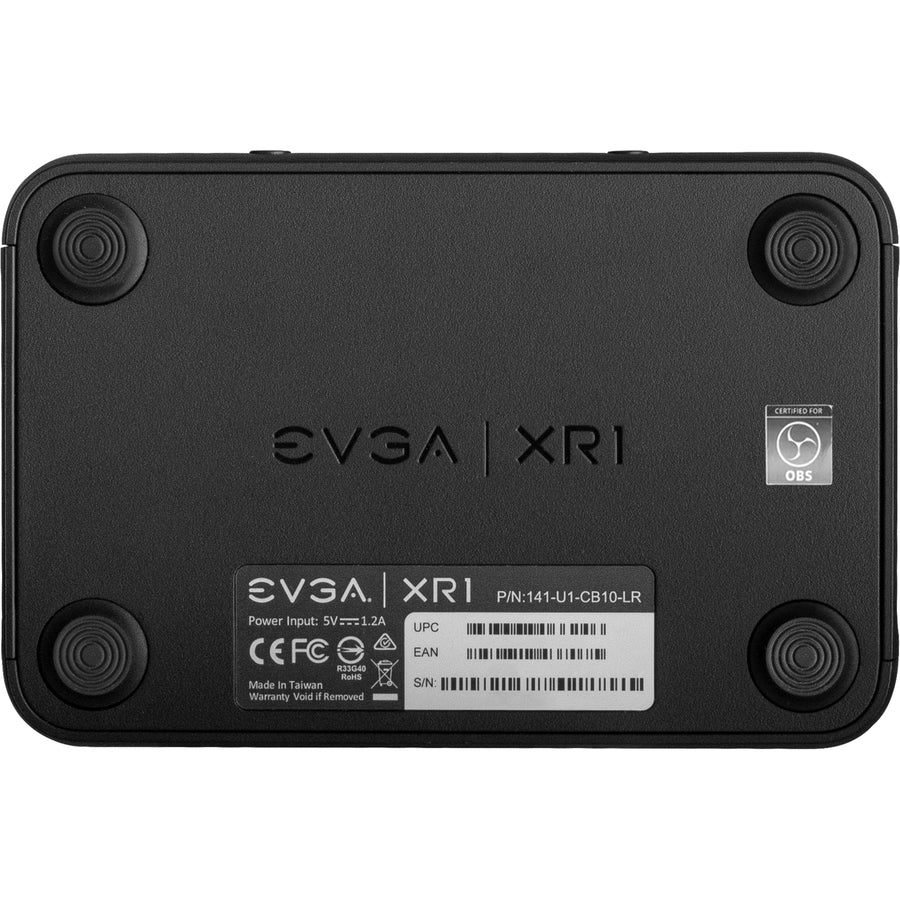

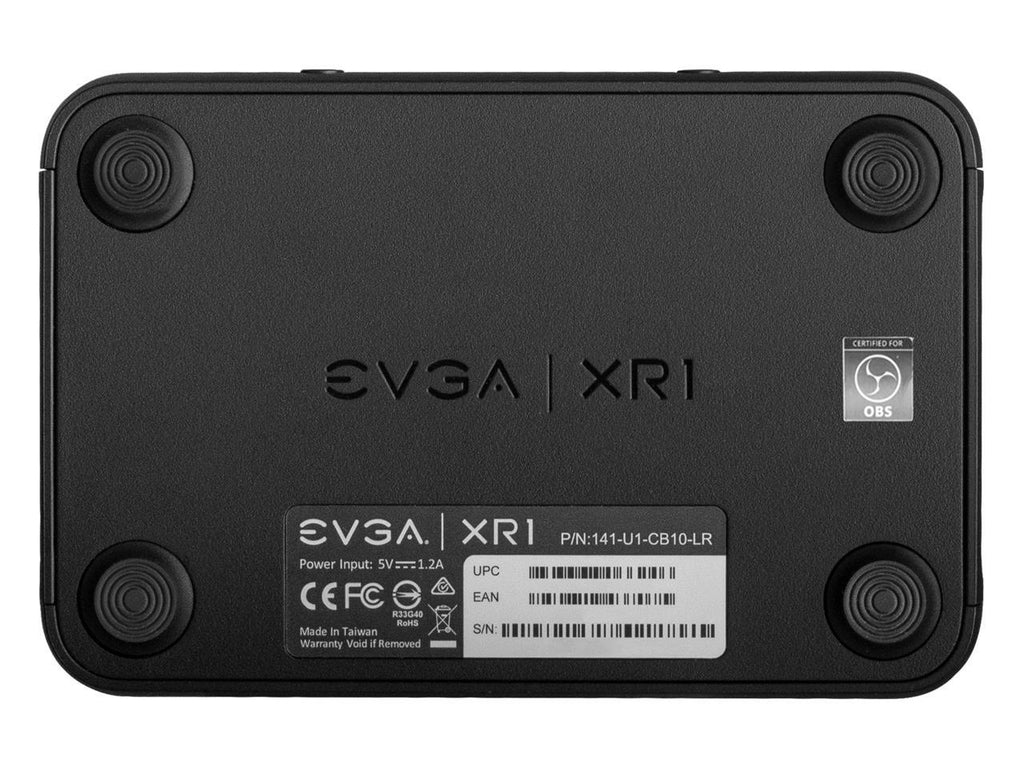

| Manufacturer Part Number | 141-U1-CB10-LR |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Model | XR1 |
| Product Name | XR1 Video Capturing Device |
| Product Type | Video Capturing Device |
| UPC | 843368066246 |
| HDMI | Yes |
|---|
| Height | 1.3" |
|---|---|
| Width | 5.1" |
| Weight (Approximate) | 0.35 lb |
| Environmentally Friendly | Yes |
|---|
| Limited Warranty | 2 Year |
|---|
