Description
- ATX12V / EPS12V

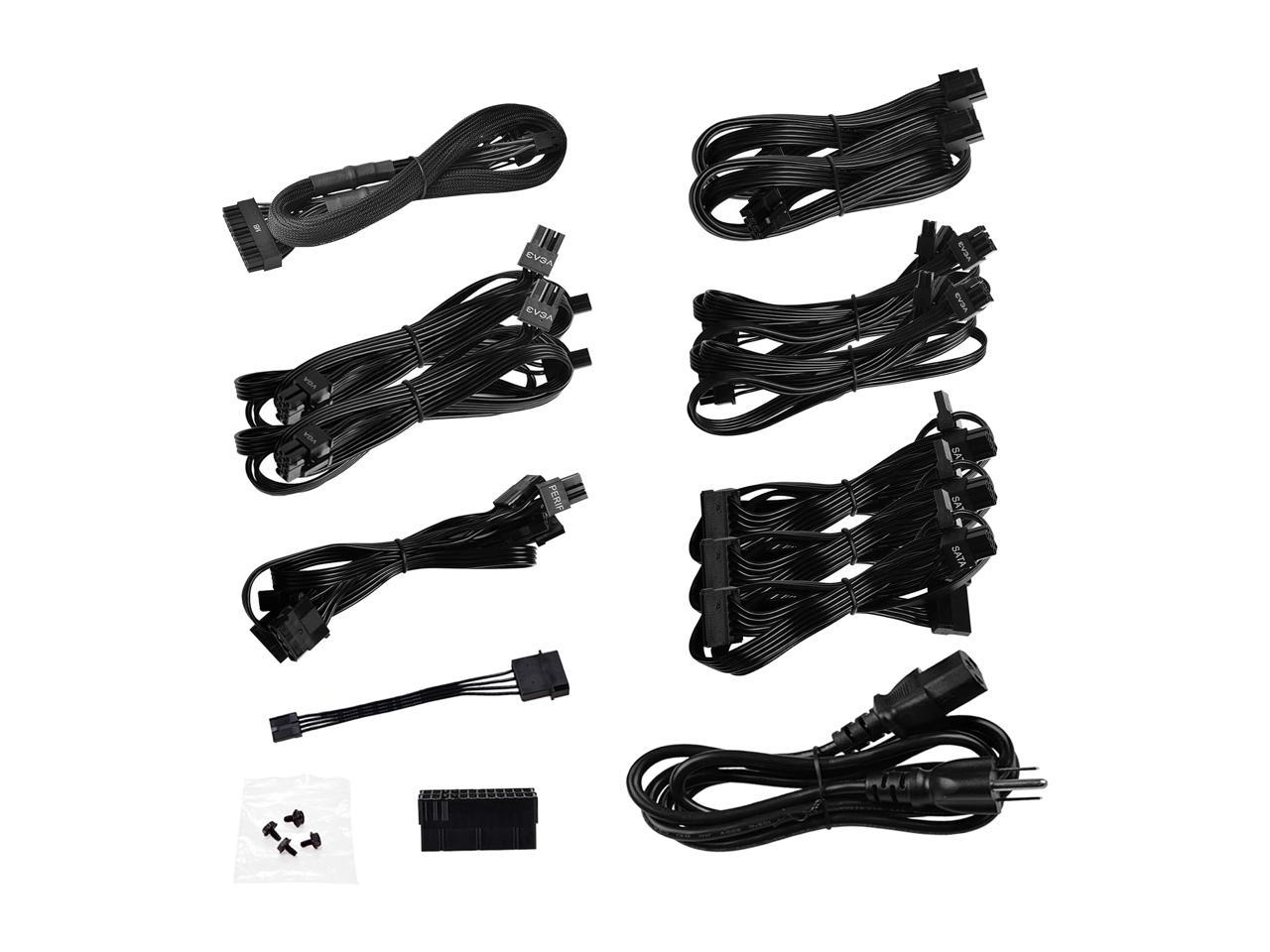

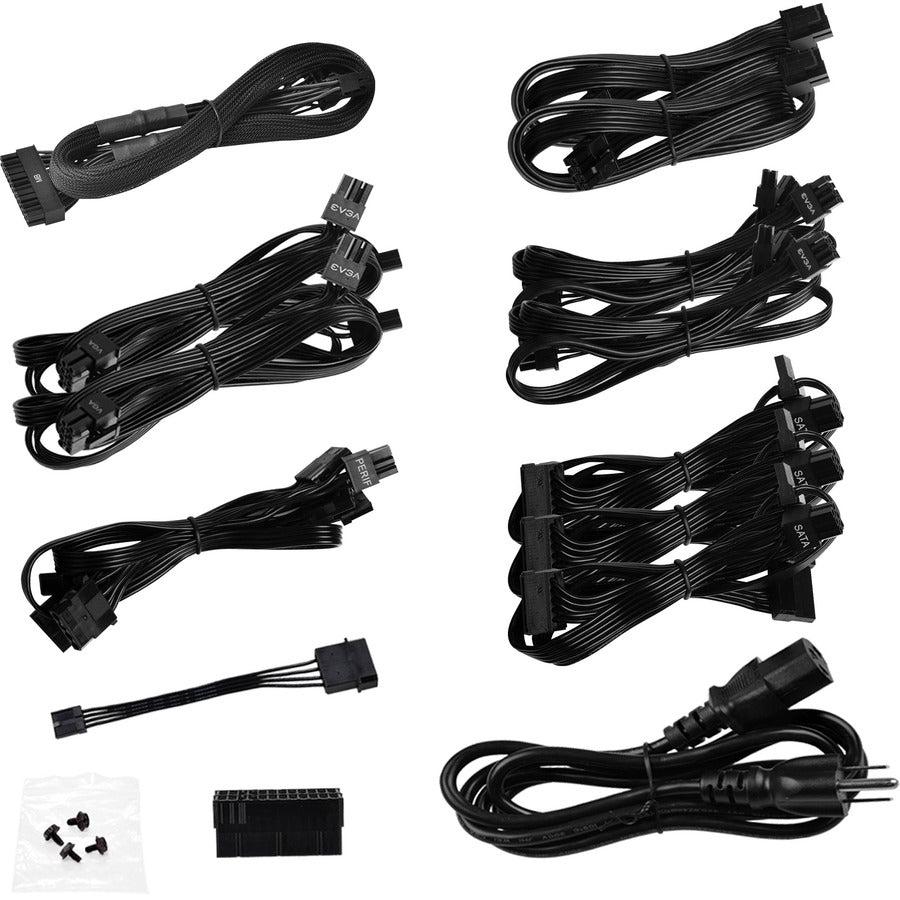

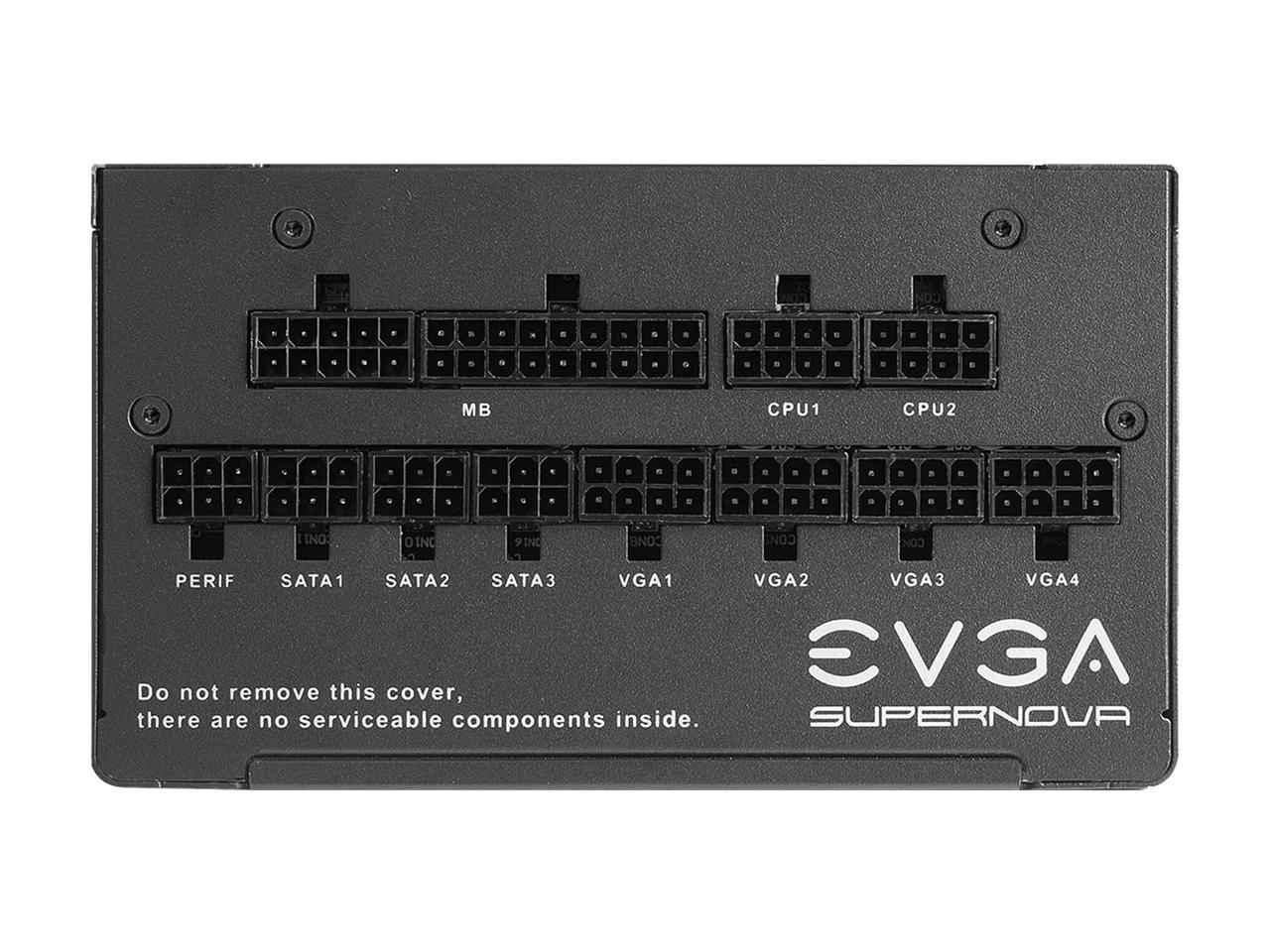

- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz

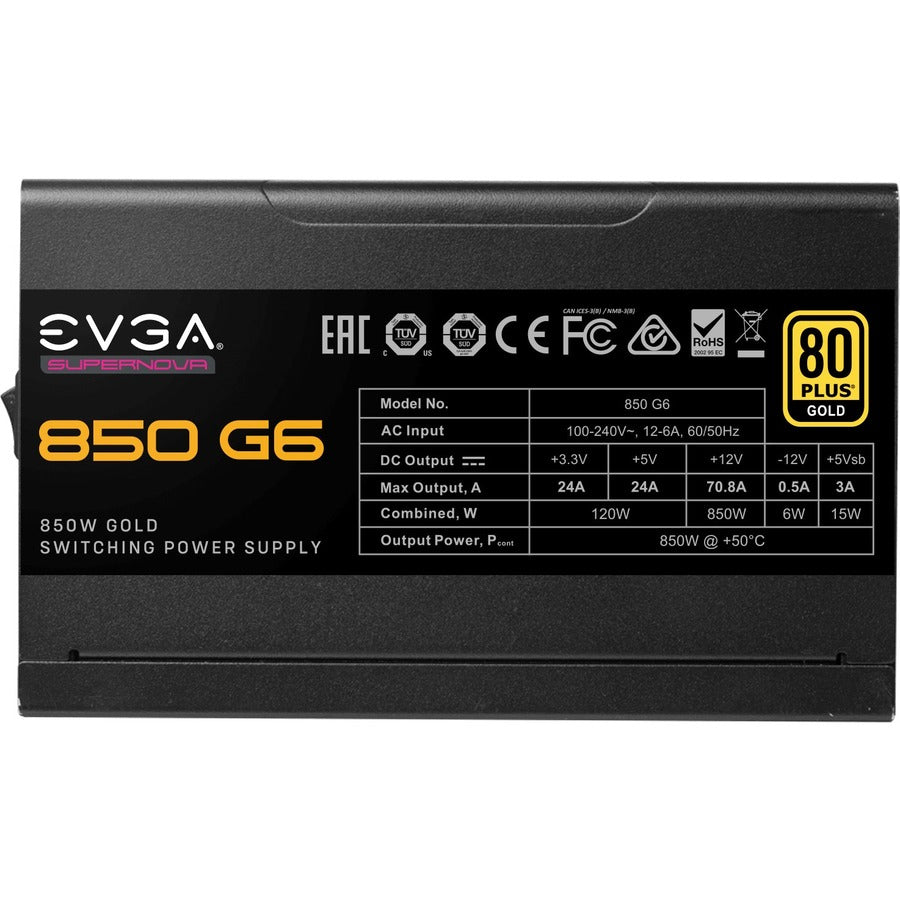

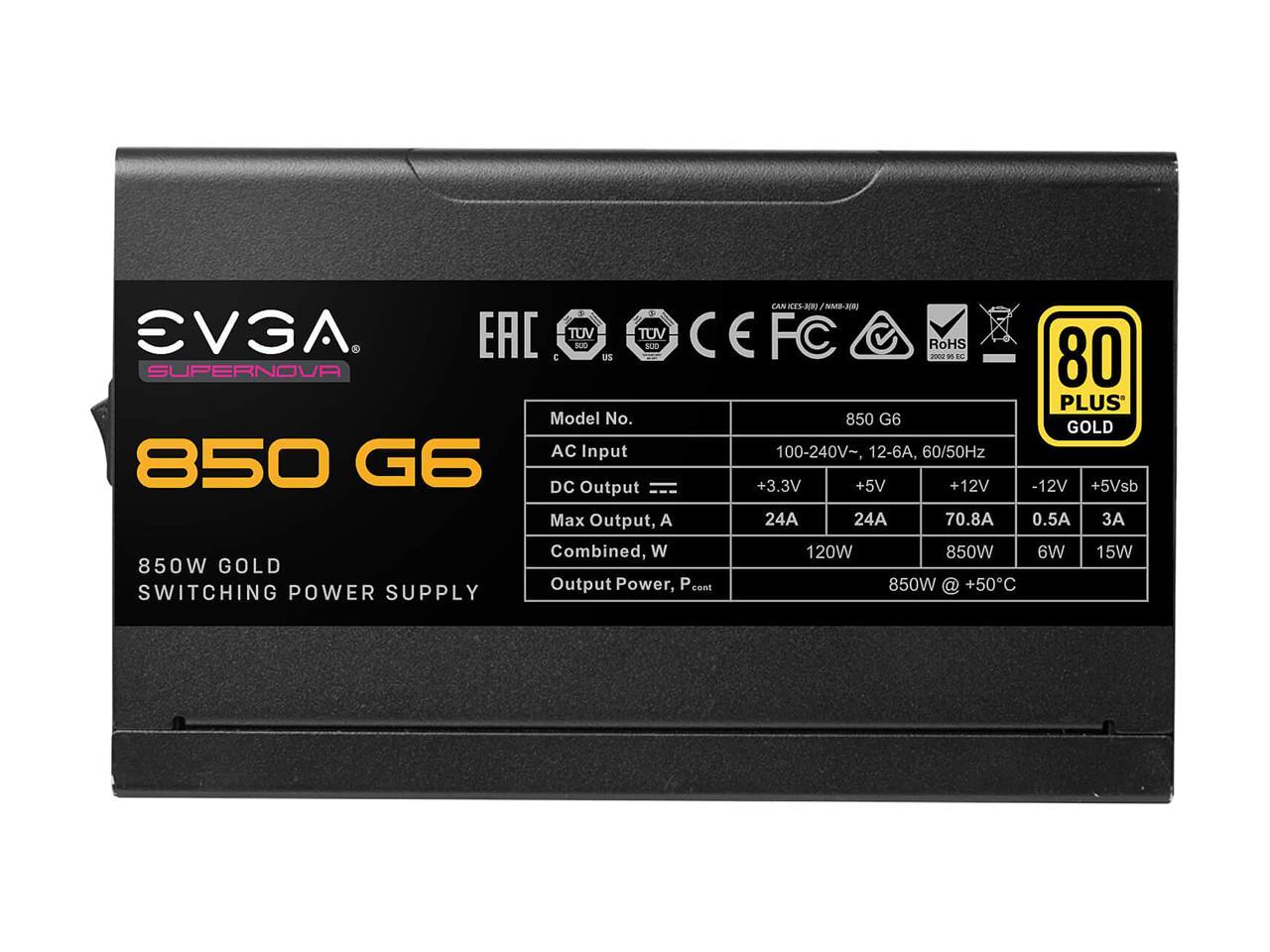

- +3.3V@24A, +5V@24A, [email protected], [email protected], +5Vsb@3A
Essential Features
Next Gen Platform
With a full-Bridge LLC Resonant Converter, and DC-DC design, the SuperNOVA G6 provides rock-solid stability, relentless efficiency, and extremely tight voltage regulation.
Hardware + Firmware OPP
Hardware OPP is designed to trip at 135% max wattage as a last resort to protect the system, but the SuperNOVA G6 also features firmware OPP to anticipate harmful load behavior 5-10% sooner by shutting off the power supply when over-power conditions persist longer than 1ms while avoiding an instantaneous overload trigger protection malfunction during momentary peak wattage.

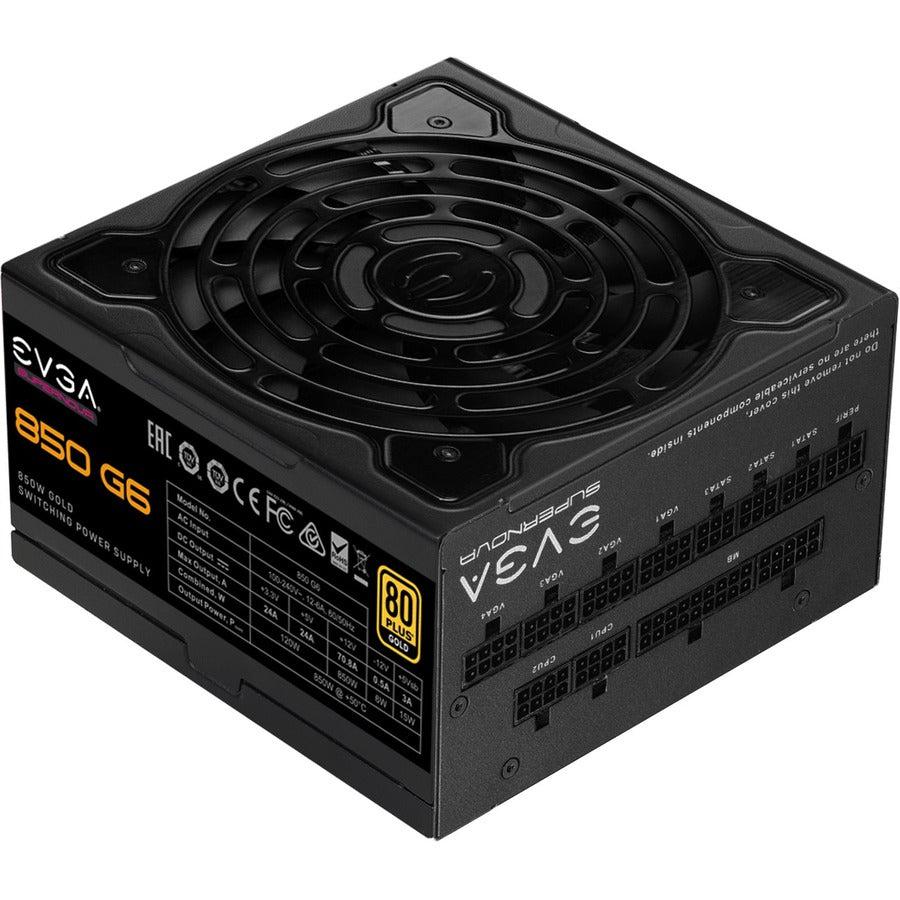

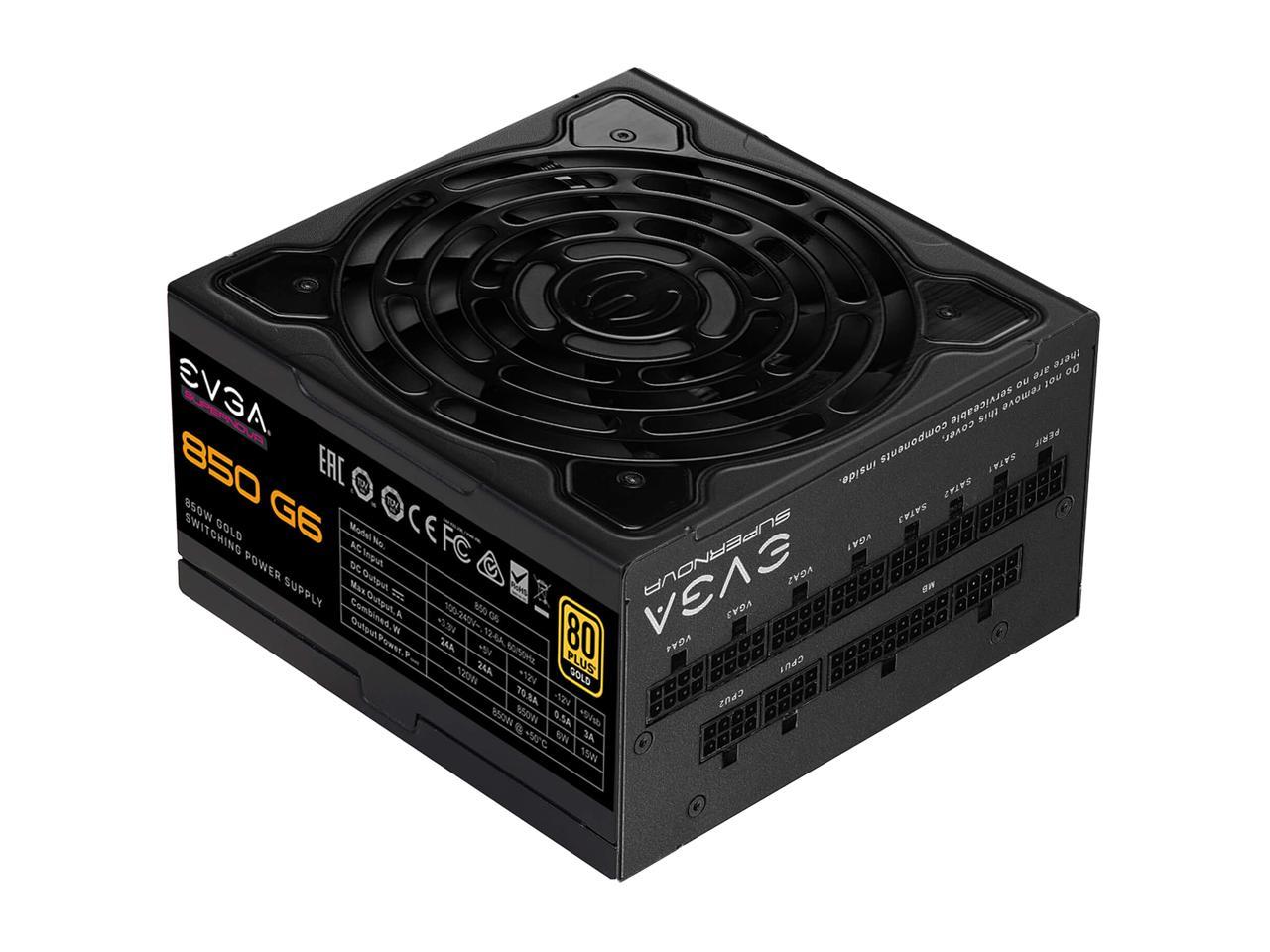

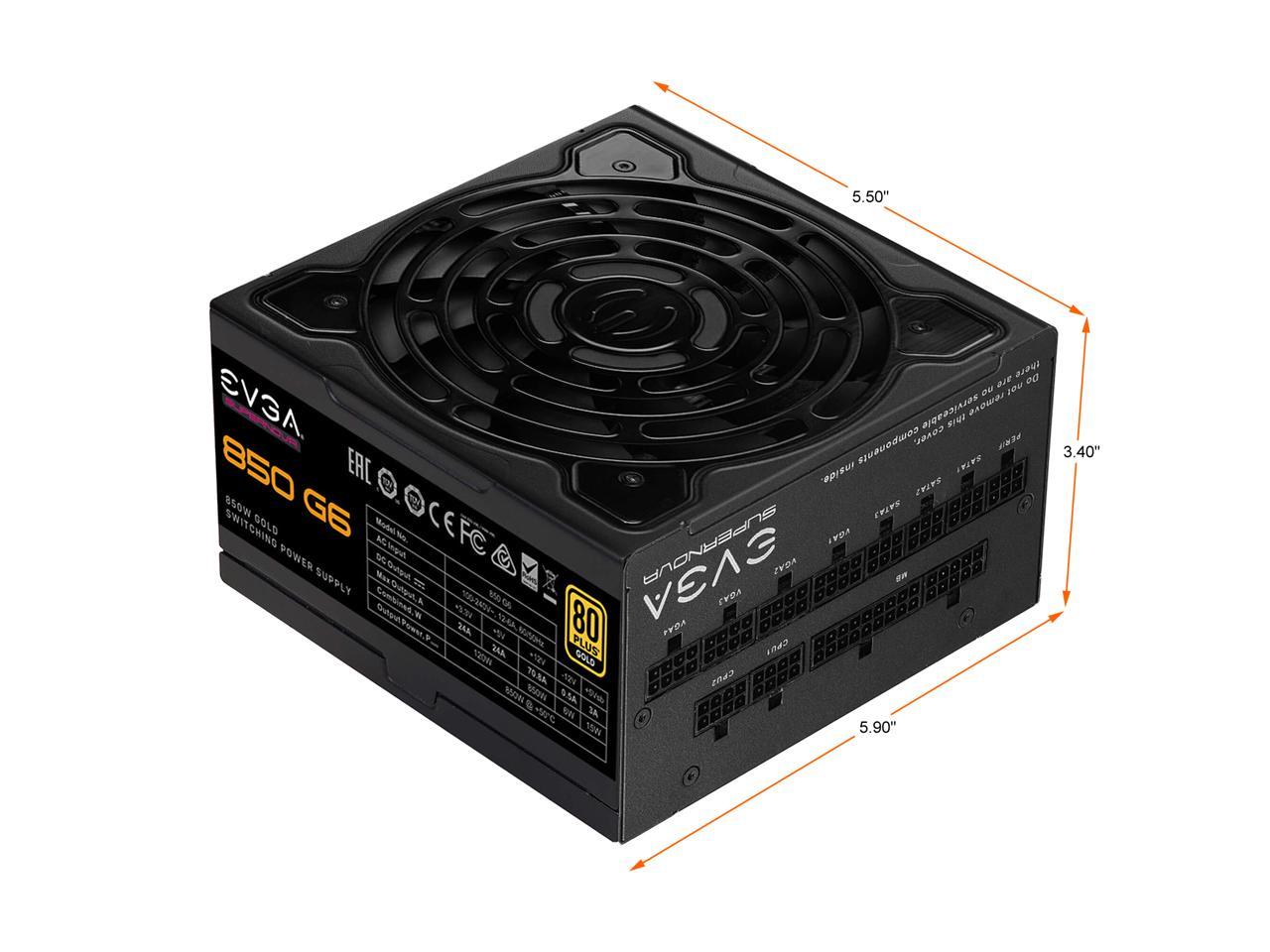

Smaller Size, Bigger Performance
The improved efficiency and voltage regulation minimizes heat, allowing the SuperNOVA G6 to be EVGA’s shortest ATX Gold-certified power supply.

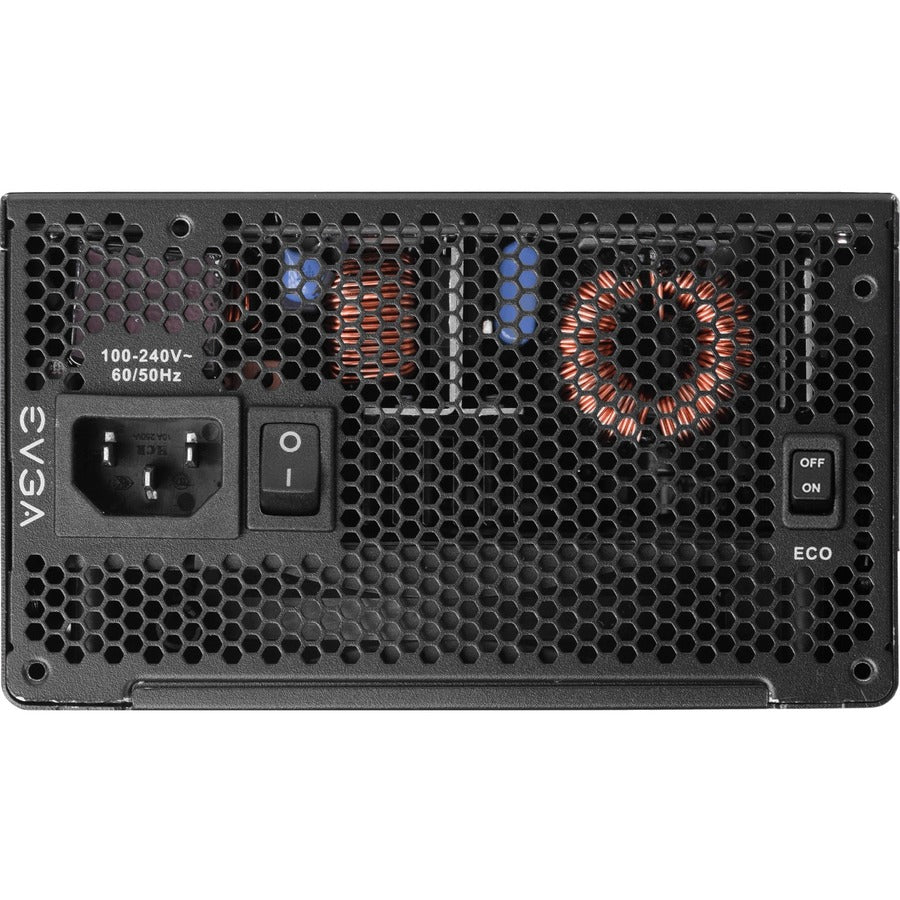

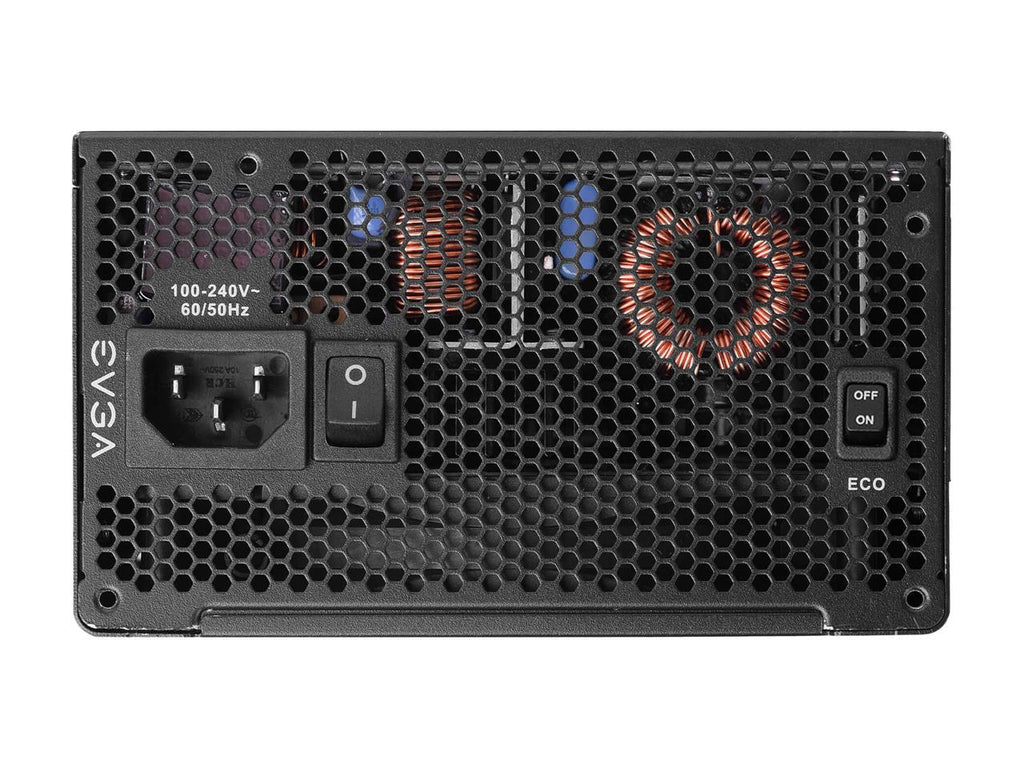

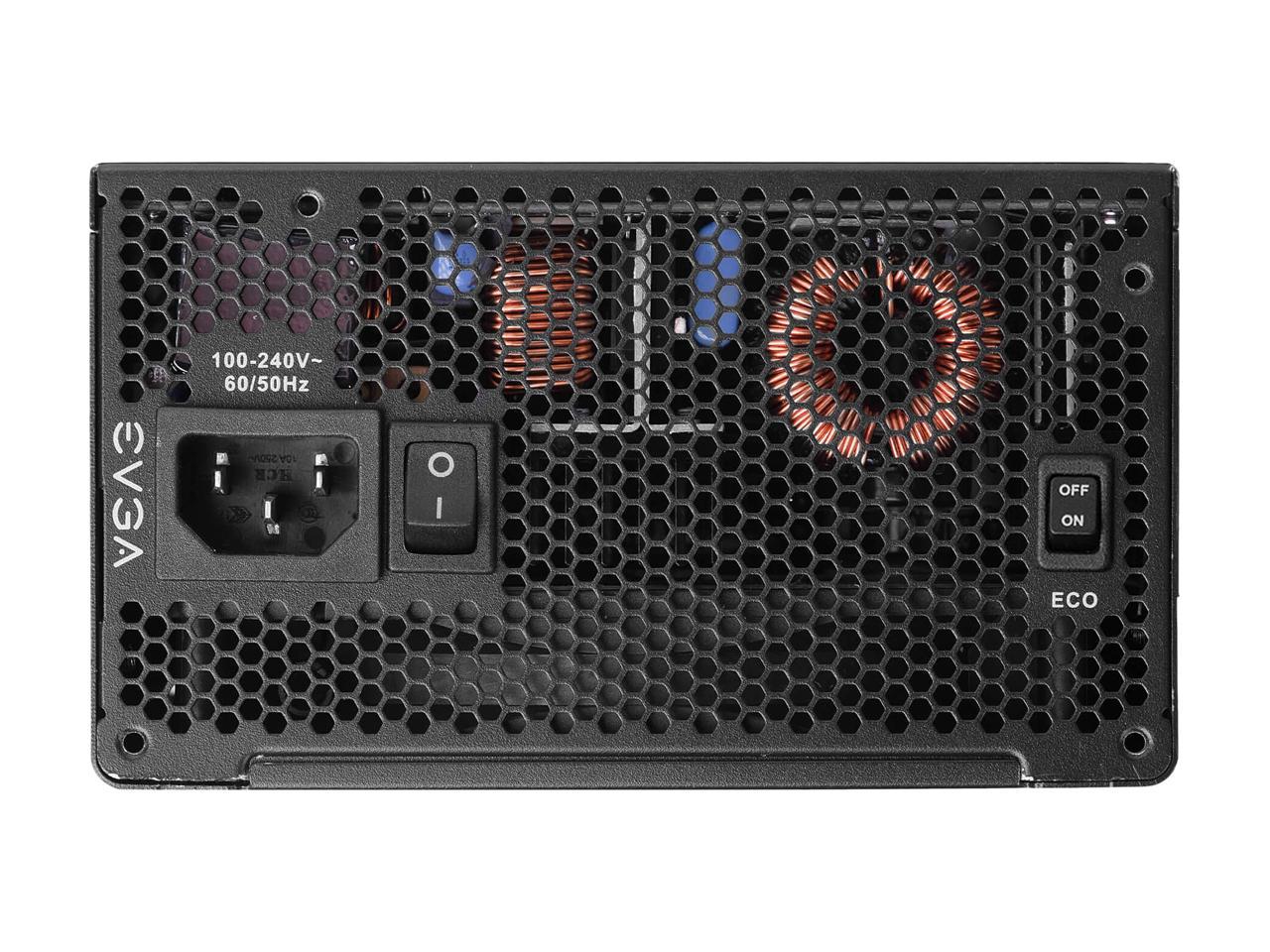

Ultra-Quiet 135mm FDB Fan with EVGA ECO Mode
To reduce noise, the SuperNOVA G6 maximizes the time the power supply stays silent or quiet at low to medium loads when ECO Mode is enabled.
Protection
- (OVP) Over Voltage Protection
- (OCP) Over Current Protection
- (SCP) Short Circuit Protection
- (UVP) Under Voltage Protection
- (OTP) Over Temperature Protection
- (Dual OPP) Over Power Protection - Hardware + Firmware
