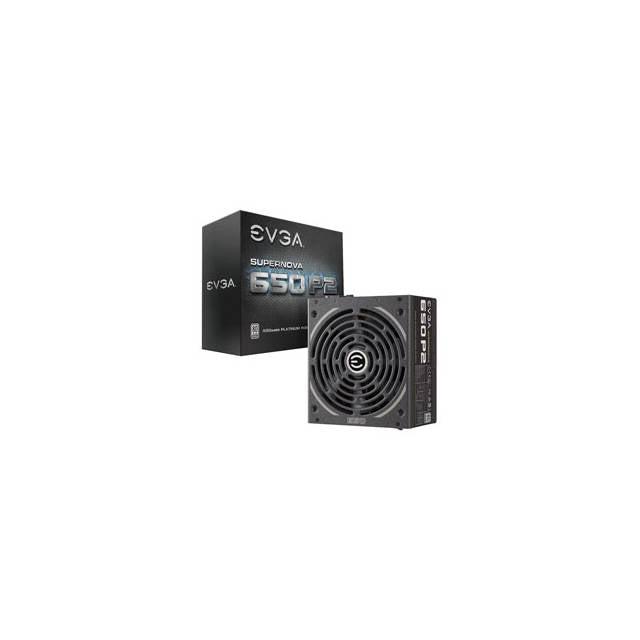

Mfr Part Number: 220-P2-0650-X1
-
Features:
- Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI & AMD Crossfire Ready
- Double Ball Bearing fan for exceptional reliability and quiet operation
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
-
Maximum Power: 650 W
-
Input:
-
Voltage: 100 ~ 240 VAC
-
Current: 10 A
-
Frequency Range: 50 ~ 60 Hz
-
Type: ATX12V / EPS12V
-
Efficiency: 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical
-
MTBF: 100,000 hours
-
Fan: 140mm Double Ball Bearing Fan
-
Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54.1A, +5VSB @ 2.5A, -12V @ 0.5A
-
Connectors: 1x 24pin ATX Main Connector, 2x 8pin (4+4) EPS (CPU) Power Connectors, 2x 8pin (6+2) PCI-Express Connectors, 2x 6pin PCI-Express Connectors, 9x SATA Connectors, 6x 4Pin Peripheral Connectors, 1x Floppy Connector
-
Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
-
Dimensions (WxLxH): 150.0 x 165.0 x 86.0 mm
-
Weight: 6.0 lbs
