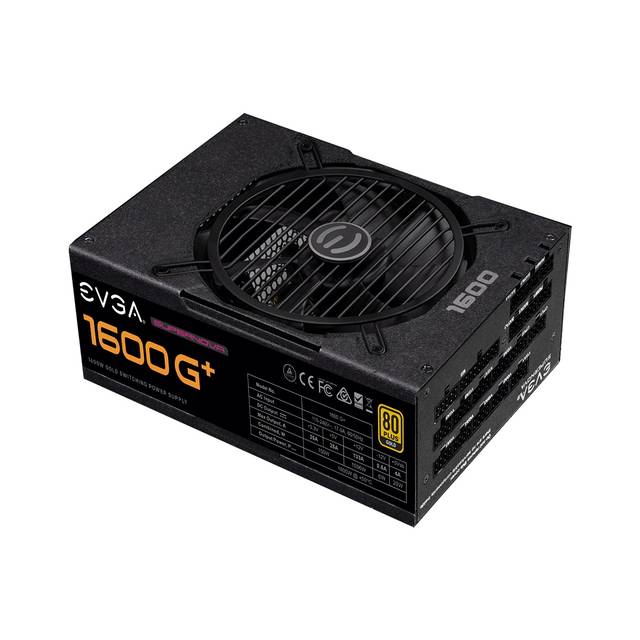

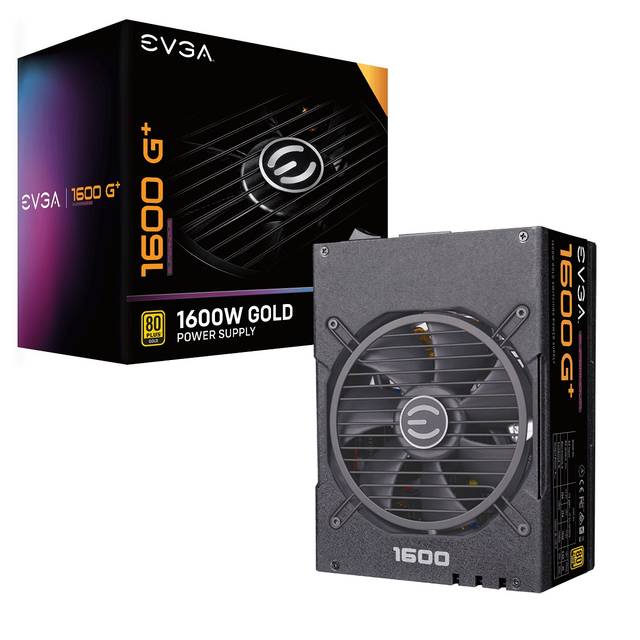

Mfr Part Number: 220-GP-1600-X1
-
Features:
-
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
-
80 PLUS Gold certified, with 90% (115VAC)/ 92% (220VAC~240VAC) efficiency or higher under typical loads
-
Fully Modular to reduce clutter and improve airflow
-
Double Ball Bearing fan for exceptional reliability and quiet operation
-
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
-
100% Japanese Capacitors ensure long-term reliability
-
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
-
DC-DC Converter improves 3.3V/5V stability
-

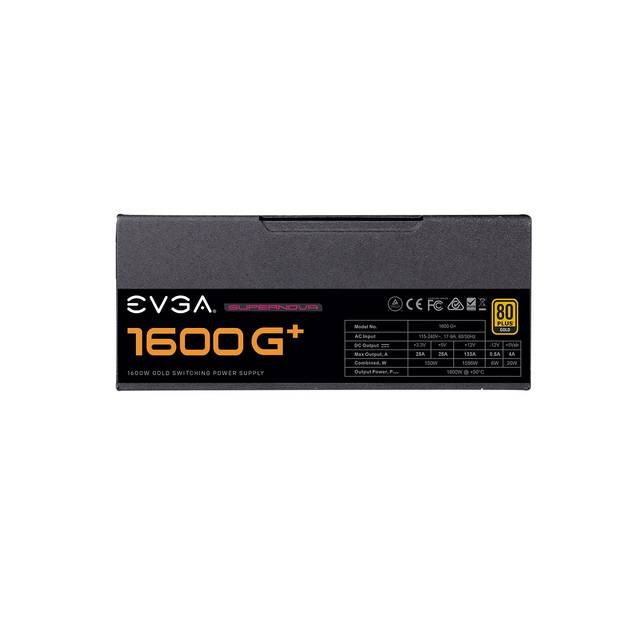

Maximum Power: 1600 W
-
Input:
-
Voltage: 115 ~ 240 V
-
Current: 17 - 9 A
-
Frequency: 60/50 Hz
-

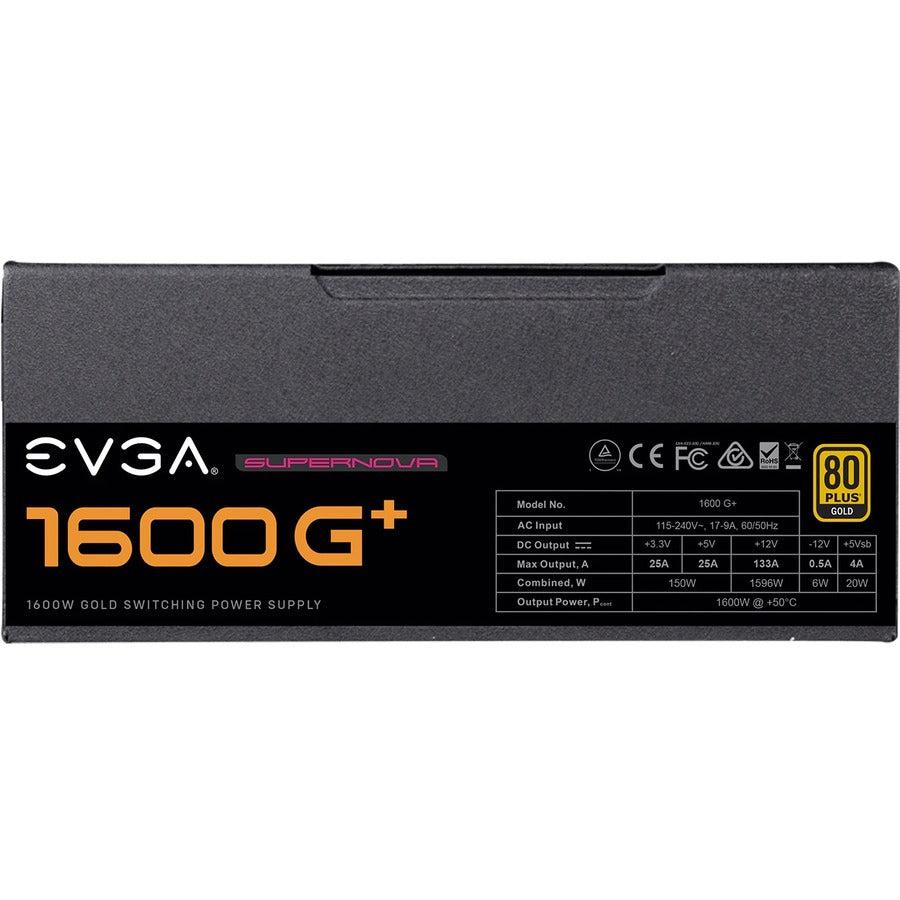

Output: +3.3V @ 25A, +5V @ 25A, +12V @ 133A, +5VSB @ 4A, -12V @ 0.5A
-

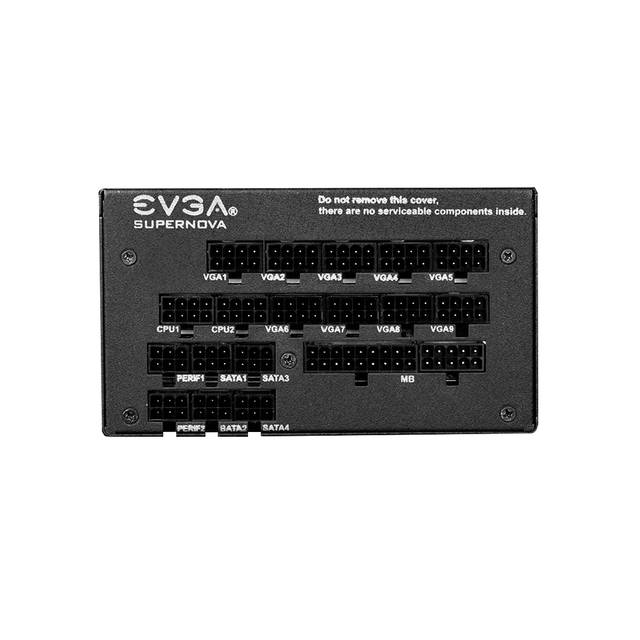

Connectors:
-
1 x 24pin ATX Connector
- 2 x 8pin (4+4) EPS (CPU) Connectors
- 14 x 8pin (6+2) PCI-Express Connectors
- 14 x SATA Connectors
- 8 x Four-Pin Peripheral Connectors
- 1x Floppy Connector
-

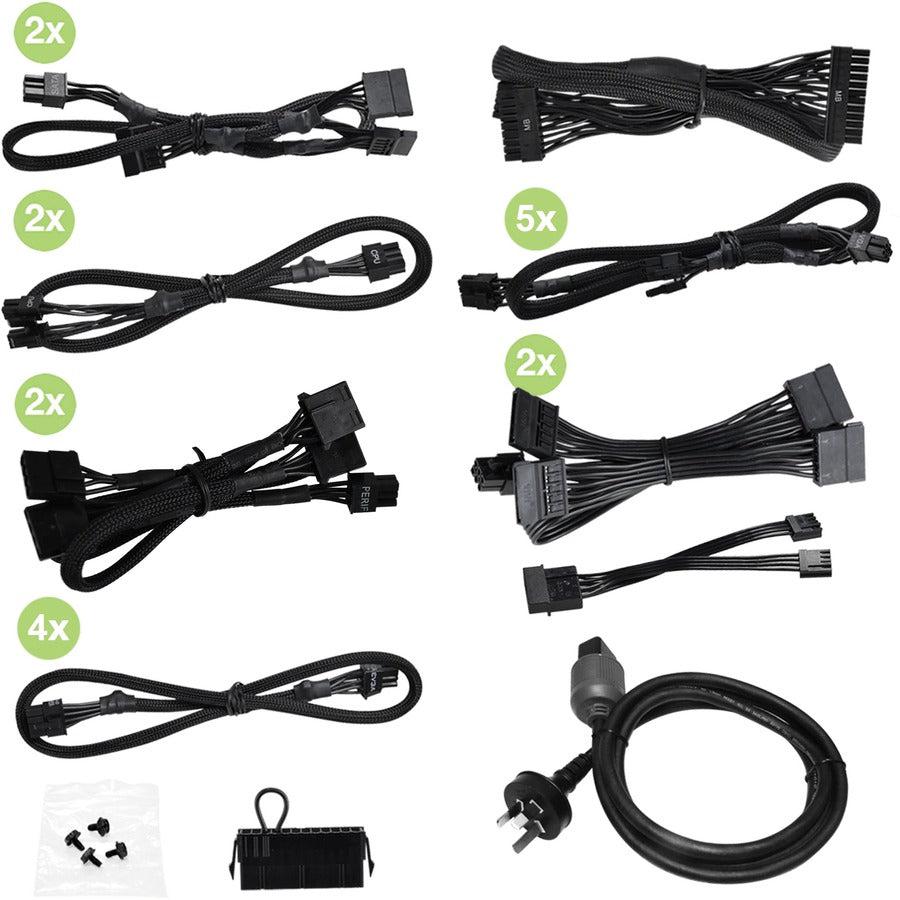

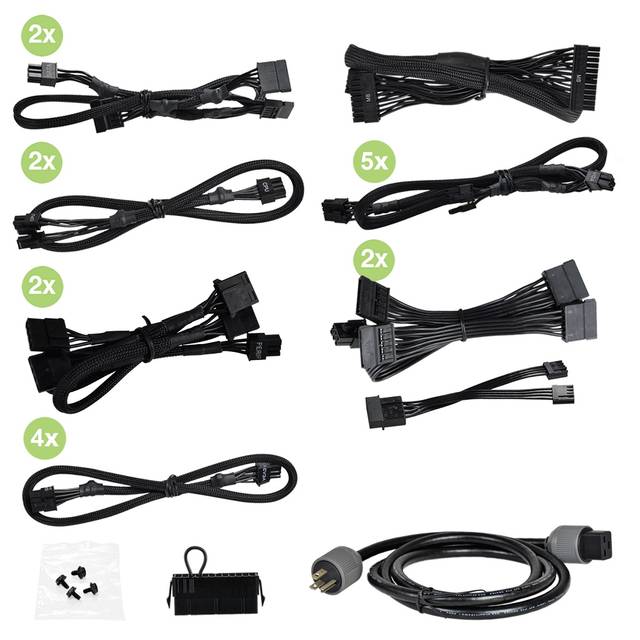

Cable Lenth:
-
ATX Cable: 1x 600mm
-
EPS Cable: 2x 750mm
-
PCIe Cable: 4x 750mm, 5x 750mm, 900mm
-
SATA Cable: 2x 550mm, 650mm, 750mm, 850mm, 2x 550mm, 650mm, 750mm
-
Four-Pin Peripheral Cable: 2x 550mm, 650mm, 750mm, 850mm
-
Floppy Adapter: 1x 100mm
-
AC Power: 1x 1800mm
-
Full Modular Cable Type
-
1x Molex to FDD
-
Approvals:
-
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
-
Compliance with ErP Lot 3 2014 Requirement
-

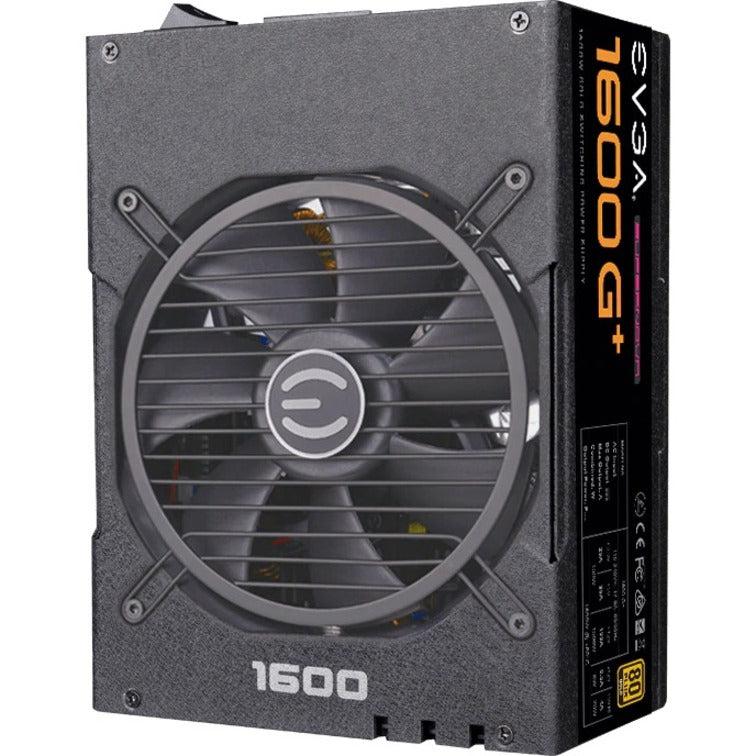

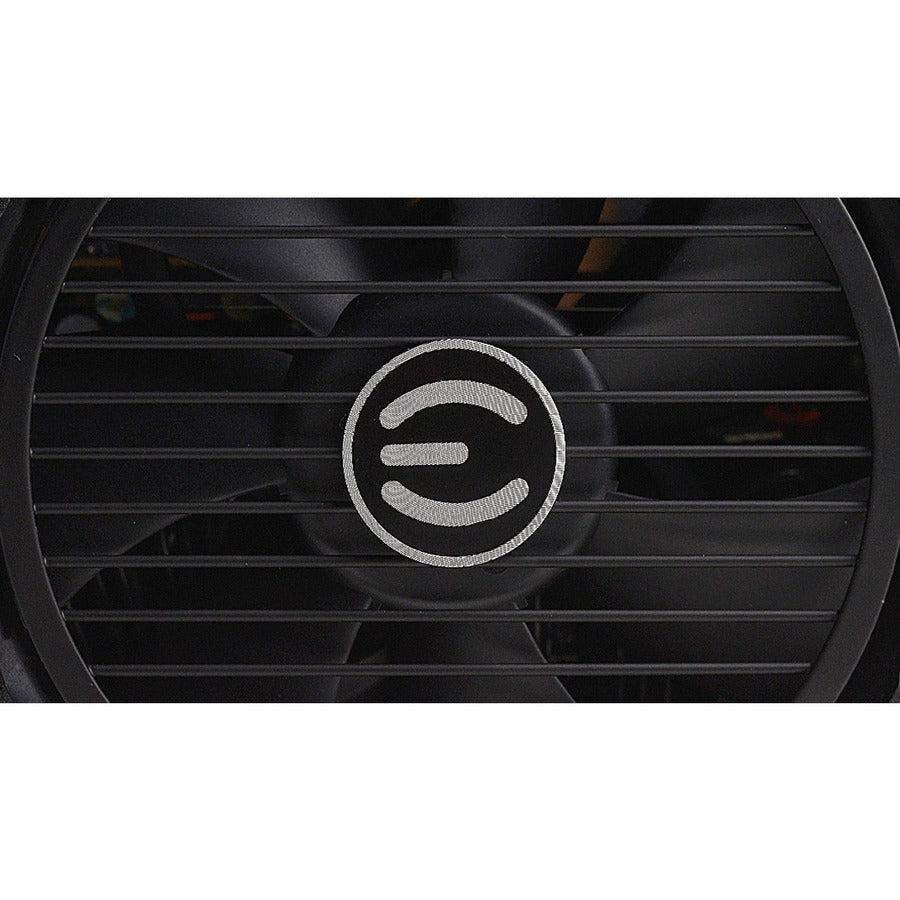

Fan Size / Bearing: 135mm Double Ball Bearing
-
Operating Temperature: 0 to 50 C
-
Japanese Capacitors: 100%
-
ECO Mode: Yes
-
MTBF: 100,000 Hours
-
Size: 86mm (H) x 150mm (W) x 200mm (L)
-
Net Weight: 10 lbs
-
Warranty: 10 Years
