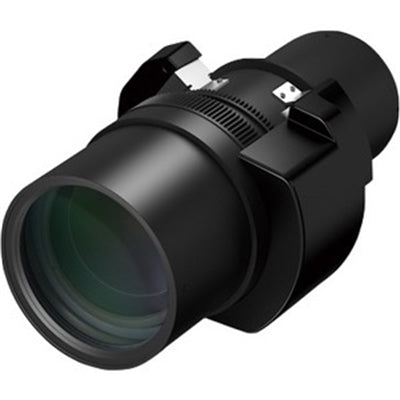

Epson ELPLM11 Middle-Throw Zoom Lens #4
The Epson ELPLM11 middle-throw zoom lens is a professional-grade interchangeable lens engineered for Epson Pro Series projectors up to 20,000 lumens. This zoom lens delivers exceptional optical performance with a 1.0–1.5x zoom ratio and F-number range of 1.8 to 2.4, making it ideal for large-venue installations, auditoriums, and corporate environments requiring flexible projection distances. With support for screen sizes up to 1000" and wide lens shift capabilities, the ELPLM11 provides installers with superior positioning flexibility and image quality for WUXGA, WXGA, and 4K EB-PQ Series projectors.
Key Features
- 1.0–1.5x zoom ratio for variable projection distances
- F-number range 1.8 to 2.4 for optimal light transmission
- Compatible with Pro Series projectors up to 20,000 lumens
- Supports screen sizes up to 1000 inches
- Wide lens shift for flexible installation positioning
- Interchangeable design for multi-projector setups
- Compatible with WUXGA, WXGA, and 4K EB-PQ Series projectors
Technical Specifications
| Specification |
Details |
| Product Name |
Middle-Throw Zoom Lens #4 |
| Model Number |
ELPLM11 |
| Part Number |
V12H004M0B |
| Manufacturer |
Epson |
| Zoom Ratio |
1.0–1.5x |
| F-Number Range |
1.8 to 2.4 |
| Maximum Screen Size |
1000 inches |
| Projector Compatibility |
Pro Series (up to 20,000 lumens), WUXGA, WXGA, EB-PQ Series 4K |
| Lens Type |
Interchangeable |
| Lens Shift |
Wide lens shift supported |
Frequently Asked Questions
What projectors are compatible with the Epson ELPLM11 lens?
The ELPLM11 is compatible with Epson Pro Series projectors up to 20,000 lumens, including WUXGA, WXGA, and 4K EB-PQ Series models. Check your projector's specifications to confirm lens compatibility before purchase.
What is the maximum screen size supported by this middle-throw zoom lens?
The Epson ELPLM11 supports screen sizes up to 1000 inches, making it suitable for large-scale installations in auditoriums, conference centers, and entertainment venues.
How does the 1.0–1.5x zoom ratio benefit my installation?
The zoom ratio provides flexibility in projection distance, allowing you to adjust image size without relocating the projector. This is especially valuable in spaces with fixed mounting locations or variable seating arrangements.
Does the ELPLM11 offer lens shift capabilities?
Yes, the ELPLM11 features wide lens shift, enabling vertical and horizontal image adjustment for optimal screen alignment without moving the projector unit itself.
