Transition Networks Network Extender
Transition Networks Ethernet Over Coax Extender With PoE+ provides the ability to quickly and easily upgrade older analog surveillance systems with modern PoE powered IP video cameras without the need to replace the wiring infrastructure. These products leverage the existing CCTV 75 ohm coax infrastructure to extend the Ethernet network and provide power to remote camera locations, saving time and money over installing new cable. These extenders communicate at near Gigabit speeds and can also be used in other applications besides surveillance to extend Ethernet networks over an existing coax infrastructure.

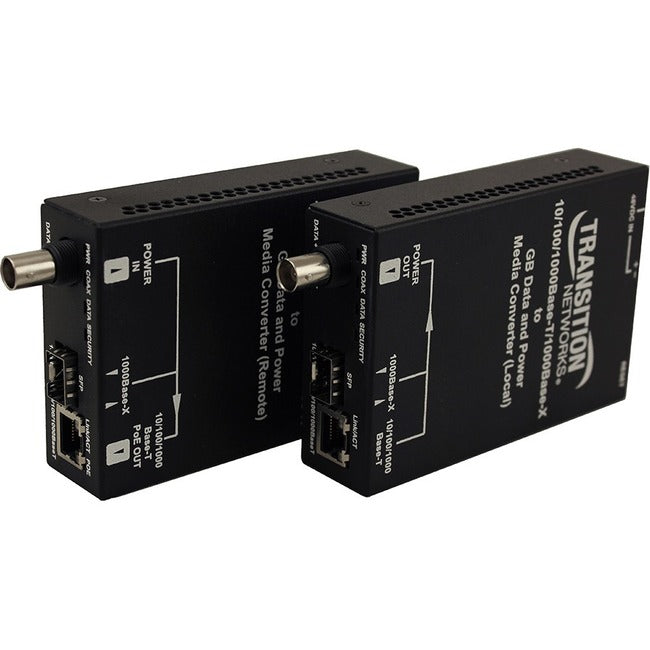

The Ethernet Over Coax Extenders with PoE+ are used as a pair of devices, with a local and remote device at opposite ends of the coax cable. The extenders provide much flexibility for either copper or fiber Ethernet connections. The Local device offers both a 10/100/1000Base-T RJ-45 and 100/1000Base-X SFP connection, and provides a Gigabit BNC connection with power over coax to the Remote device. The Remote device receives power through the PoE+ BNC connection and provides both a 10/100/1000Base-T RJ-45 and a 100/1000Base-X SFP connector output with PoE+ power for IP cameras, wireless access points or other PoE powered end devices. Power for the Local device can be supplied through a properly isolated +48VDC power source or through the designated 90 Watt power adapter. The designated power adapter is optional for providing backup power at the Remote device.
The Ethernet Over Coax Extenders With PoE+ are supplied with a web GUI, which allows password-protected access to various configuration options of both the Local and Remote devices through a single IP address. It also allows easy upgrades to firmware.
Product Type: Network Extender
Country Of Origin: United States
Brand Name: Transition Networks
Manufacturer: Transition Networks, Inc
Product Name: Network Extender
Manufacturer Part Number: EOCPD4020-110
Manufacturer Website Address: http://www.transition.com
Limited Warranty: 5 Year
Additional Information: Standards:
IEEE 802.1p
IEEE 802.1Q
IEEE 802.3
IEEE 802.3ab
IEEE 802.3af/at
IEEE 802.3az
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
Status LEDs Power, Coax Power, Coax ACT,Coax Security, Combo Port Link/ACT, PoE+
Dimensions:
Width: 3.25" [82.5 mm]
Depth: 1.25" [31.75 mm]
Height: 5.38" [136.7 mm]
Power Consumption 45 Watts (max)
Power Input 48 VDC
Ingress Protection IP30
Environment:
Operating: 0°C to +65°C
(Industrial +85°C SFP modules must be used above 50°C ambient temperature)
Storage: -40°C to 85°C
Humidity: 5% to 95% (non-condensing)
Altitude: 0 - 10,000 ft.
Weight 1.05 lbs. [0.48 kg]
Compliance:
Safety: External Power Supply: CE Mark, UL listed;
Emissions: FCC Part 15, CISPR22/EN55022 Class A;
Immunity: EN55024
Description:
(1) 10/100/1000Base-T PoE+ Port IEEE 802.3af/at
or (1) 100/1000Base-X SFP Combo Port
+ (1) 1000Base BNC Port
