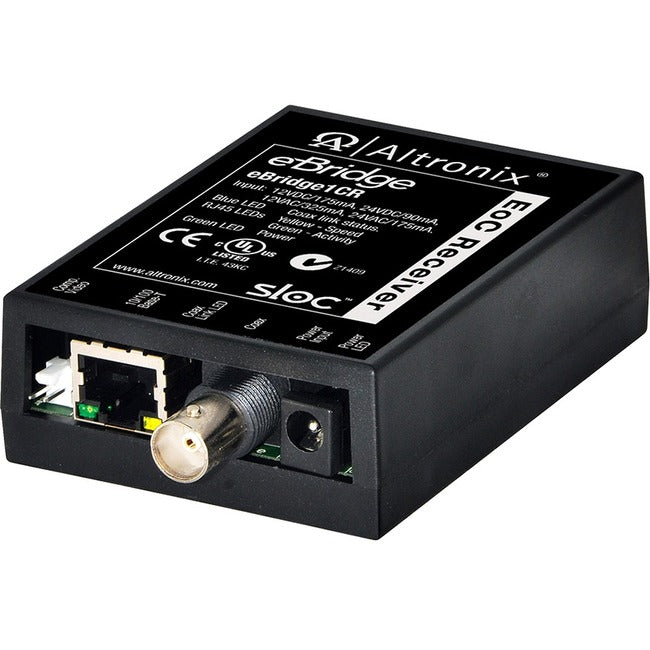

Altronix eBridge1CR - IP over Coax Receiver
The eBridge1CR is a CAT5 to Coax cable Ethernet adapter. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission over the Coax can be extended to 1500' (five times the 100m/328ft Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge1CR must be used with and eBridge1CT or a compatible Hybrid camera/device with the "sloc" technology.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports coaxial cable for laboratory and industrial environment requiring up to 500 meter coverage and low bandwidth
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Can be placed on Desktop surface for standalone installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Form Factor: Desktop
Manufacturer: Altronix Corporation
Product Model: eBridge1CR
Product Name: eBridge1CR - IP over Coax Receiver
Product Line: eBridge
Manufacturer Part Number: EBRIDGE1CR
Manufacturer Website Address: http://www.altronix.com
Package Contents:
- eBridge1CR - IP over Coax Receiver
- Composite Video Cables
- 2 x Power Connectors
Limited Warranty: Lifetime
Weight (Approximate): 3.36 oz
