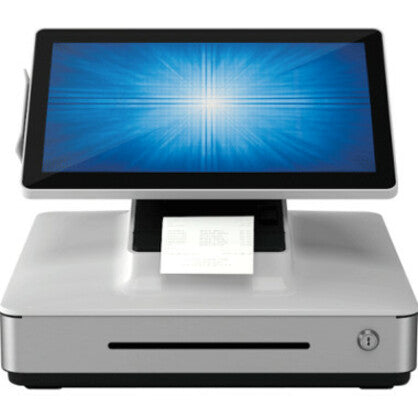

Elo PayPoint Plus POS Terminal
PayPoint® Plus for Windows®
PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel® Coffee Lake Core™ i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Large Display
PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

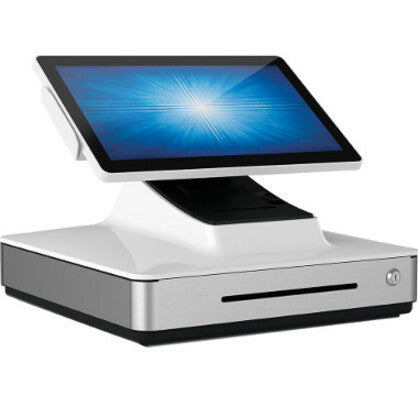

Rotating Display Head
Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.
Integrated Peripherals
Printer
The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.
Barcode Scanner
The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example-EasyDL™ enables users to read government-issued identification cards in US and Canada.
Cash Drawer
The full size industry-standard cash drawer with 3-position lock offers two layouts-five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.
MSR
The MagTek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.
3-inch Printer
PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics which includes futurePRNT Software - making setup a breeze. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. It can even be configured for ESC/POS mode emulation. Reliability comes first - this printer has been tested to MCBF of 60 million lines.

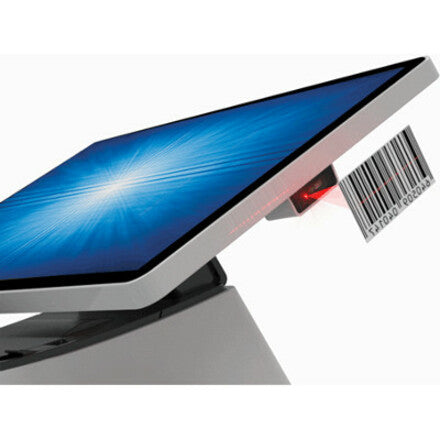

Barcode Scanner
2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell which includes Honeywell's EZConfig Cloud for Scanning - simplifying the input of barcode scanner configurations and firmware updates. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL™ to scan and parse data from drivers licenses in the United States and Canada.

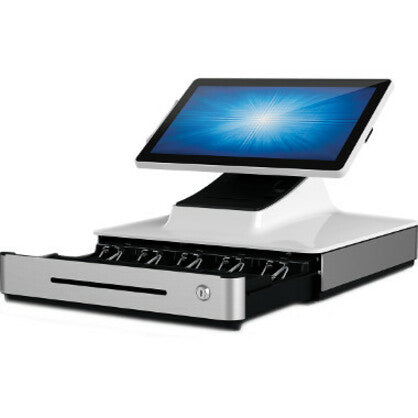

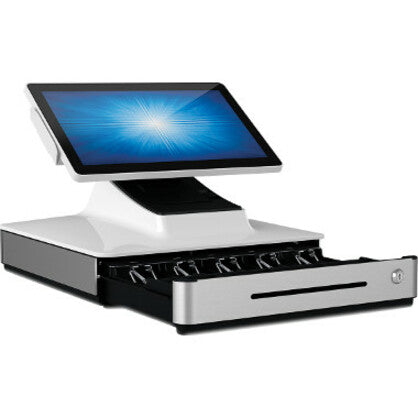

Full Size Cash Drawer
The full size 16-inch industry-standard cash drawer offers a 3-position lock and the ability to add second cash drawer through an I/O port.
- Touchscreen interface empowers quick access
- Meet and exceed your business needs with intel core i5 2.10 GHz processor
- The ultra modern interface that Windows 10 offers is well suited with any hardware or software that you are presently using
- 15.6" screen size empowers smooth visuals
- 128 GB SSD provides enough space for all your files
- Built-in 8 GB DDR4 SDRAM memory for a crisp and detail display
Product Type: POS Terminal
Product Color: Black
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Name: PayPoint Plus POS Terminal
Product Line: PayPoint Plus
Manufacturer Part Number: E548895
Manufacturer Website Address: http://www.elotouch.com
Package Contents:
- PayPoint Plus POS Terminal
- Power cable
- 1 x Receipt paper roll
- 2 x Cash drawer keys
- Quick Installation Guide
- RJ45 to DB9 serial cable
Limited Warranty: 3 Year
Weight (Approximate): 22.47 lb
