1790L 17" Open Frame Touchscreen (Rev B) | Elo®

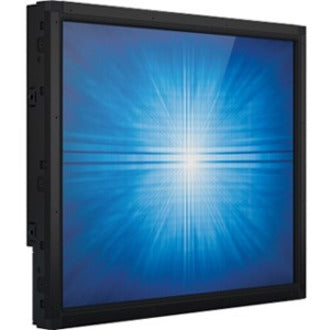

The Elo 1790L 17-inch open-frame touchscreen display provides an industrial-grade solution, perfect for OEMs and systems integrators. It is crafted with IntelliTouch Surface Acoustic Wave (SAW) technology, ensuring a reliable single-touch capability.
Features
-
IntelliTouch SAW Technology: Provides precise single-touch response, ideal for demanding environments.
-
Industrial-Grade Durability: Designed for use in commercial settings, ensuring long-lasting operation.
-
LED Backlit Display: Energy-efficient LED backlighting enhances visibility while reducing power consumption.
-
Open Frame Design: Facilitates custom integrations into various kiosk and panel applications.
Technical Specifications
| Display Size |
17 inches |
| Resolution |
1280 x 1024 |
| Aspect Ratio |
5:4 |
| Brightness |
250 nits |
| Touch Technology |
IntelliTouch SAW |
| Input Ports |
HDMI, VGA, DisplayPort |
| Touch Interface |
USB, RS-232 |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
FAQs
What environments are best suited for this touchscreen?
This touchscreen is ideal for industrial and commercial settings, including kiosks, point of sale systems, and interactive signage.
Does it support multi-touch functionality?
No, this model supports single-touch input.
Can it be integrated with modern operating systems?
Yes, the Elo 1790L is compatible with most modern operating systems through its USB and RS-232 interfaces.
