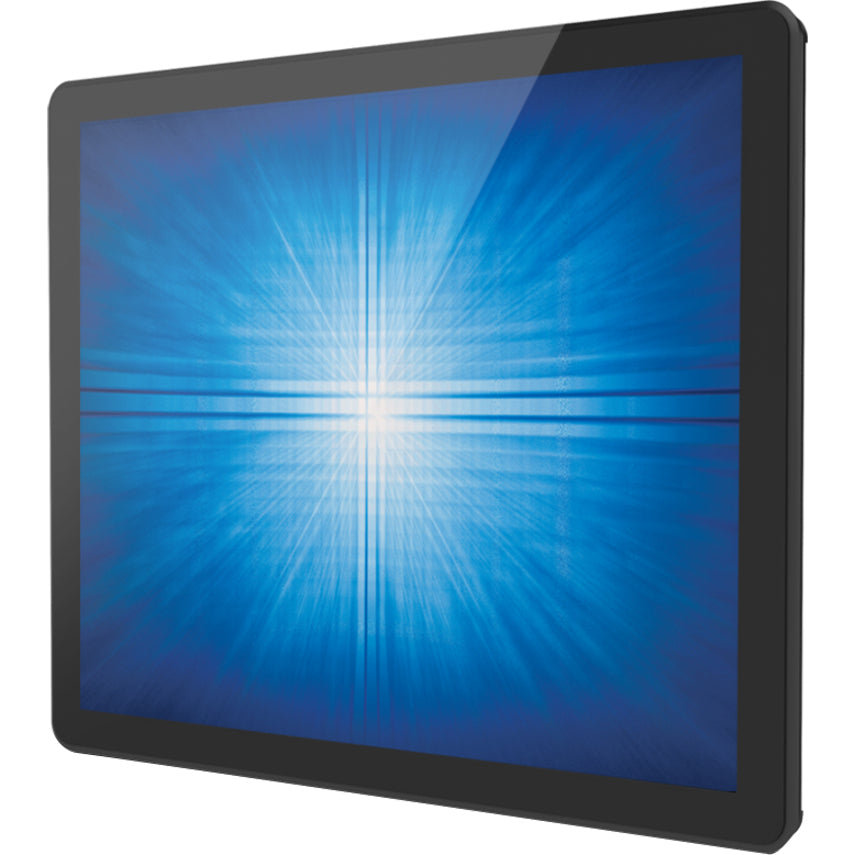

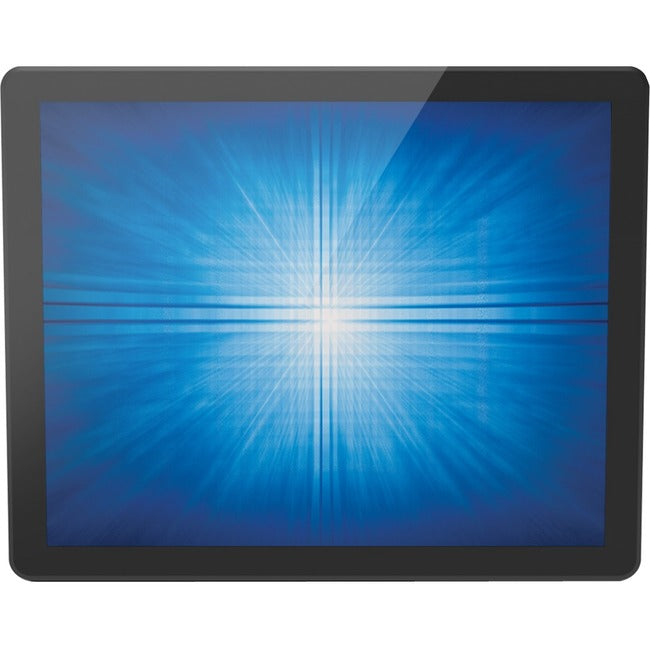

This open frame touchscreen display is perfect for kiosk manufacturers, industrial integrators, and OEM designers who need reliable embedded touch solutions. Our Elo Touch 1291L delivers:
-
Industrial-grade PCAP touchscreen that provides precise multi-touch functionality
-
Open frame LCD design for seamless integration into custom applications
-
Elo touch solutions reliability ensuring consistent performance in demanding environments
-
TouchPro projected capacitive technology for responsive, accurate touch response
Key Features
-
12-inch projected capacitive touchscreen with multi-touch support up to 10 points
-
Open frame mounting design enabling flexible installation options
- Optimized for kiosk and embedded applications with industrial-grade construction
- Consistent LCD display performance with LED backlight technology
-
USB interface connectivity for plug-and-play installation
-
Bezel-free design maximizing screen real estate
-
Wide temperature operating range for diverse deployment environments
Technical Specifications
| Manufacturer |
Elo Touch Solutions, Inc. |
| Model Number |
E331595 / 1291L |
| Type |
Open Frame Touchscreen Display |
| Display Size |
12.1-inch diagonal |
| Touch Technology |
TouchPro Projected Capacitive (PCAP) |
| Resolution |
1024 x 768 XGA |
| Aspect Ratio |
4:3 |
| Backlight |
LED backlight technology |
| Brightness |
350 cd/m² |
| Contrast Ratio |
700:1 |
| Viewing Angle |
140°/120° (H/V) |
| Touch Points |
Up to 10 simultaneous touch points |
| Interface |
USB for touch, VGA/DVI for video |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
10% to 90% non-condensing |

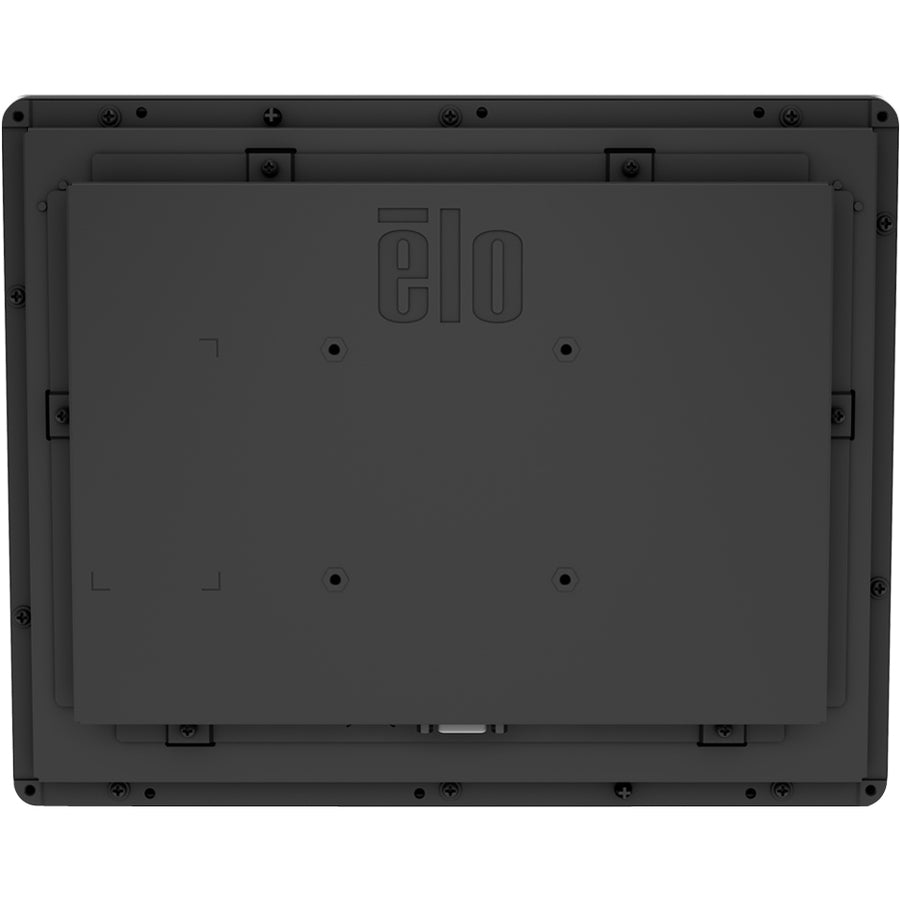

| Mounting |
Open frame design with mounting holes |
| Power Consumption |
12W typical |
| Dimensions |
10.75" x 8.46" x 1.38" (273 x 215 x 35mm) |
Frequently Asked Questions
Q: What makes this open frame touchscreen display suitable for kiosk applications?
A: The Elo Touch 1291L features a bezel-free open frame design with industrial-grade construction, making it perfect for seamless integration into custom kiosks, point-of-sale terminals, and embedded systems requiring reliable touch interaction.
Q: How does PCAP technology benefit industrial touchscreen applications?
A: TouchPro projected capacitive technology provides superior touch sensitivity, supports multi-touch gestures up to 10 points, and operates reliably in challenging environments — ideal for interactive displays and industrial control panels.
Q: What connectivity options does this LCD touchscreen display offer?
A: The system includes separate USB interface for touch functionality and VGA/DVI video inputs, ensuring compatibility with various host systems and simplified integration into existing infrastructure.
Q: Can this industrial touchscreen monitor operate in harsh environments?
A: Yes. This industrial-grade touchscreen operates reliably from 0°C to 50°C with 10-90% humidity tolerance, making it suitable for manufacturing floors, outdoor kiosks, and demanding commercial applications.
Q: What are the primary applications for this open frame display?
A: Perfect for embedded touchscreen solutions including interactive kiosks, point-of-sale systems, industrial control panels, gaming machines, and custom OEM applications requiring reliable touch input and compact form factor.
Open Frame Touchscreen Display with PCAP technology. 12-inch industrial LCD monitor with TouchPro for kiosk and embedded applications.
