Eizo Radiforce Rx660-Bk 29.9" Wqsxga Led Lcd Monitor - 16:10 - Black, White

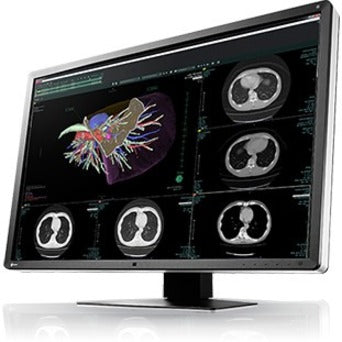

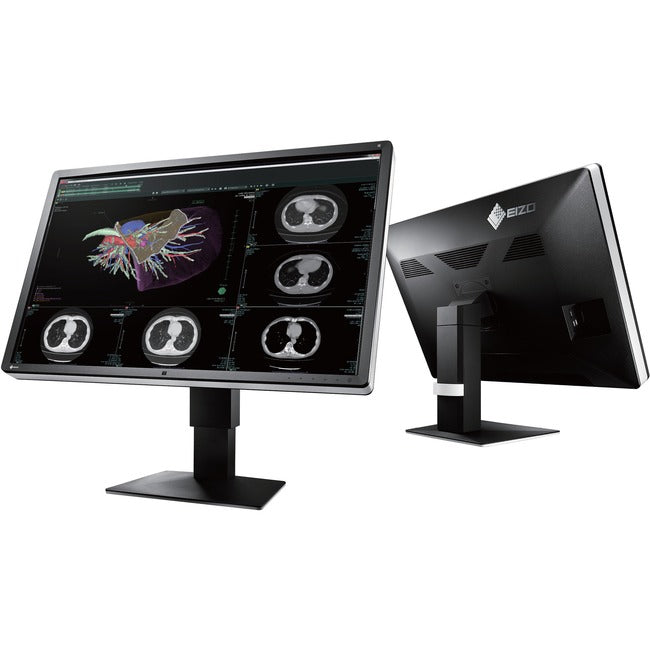

EIZO RadiForce RX660-BK 29.9" WQSXGA LED LCD Monitor - 16:10 - Black, White

Evolve Your Image Reading

As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce RX660 and bundled RadiCS LE software.

Quick Information
Referencing

The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen it as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports, patient charts, and other information.

Barrier-Free Workstyle

With the Switch-and-Go function USB switching is done within the monitor. This enables users to use a single keyboard and mouse across two PCs. Users can easily work on either PC by simply moving the mouse cursor across the screens. This enhances work efficiency and creates a cleaner workspace.

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored . This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.270 cycles/mm) the MTF increases by approximately 51%.

Create the Ideal Environment

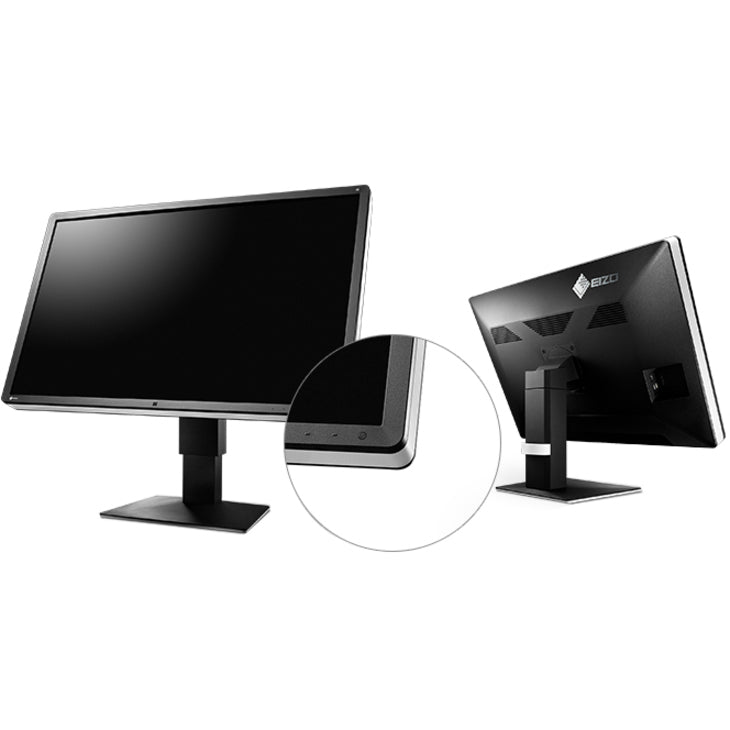

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.

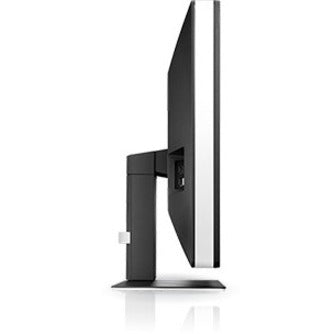

Save Work Space with Sleek Cabinet Design

Compared to its predecessor, the monitor's width and depth were reduced by 9.5 mm and 56.5 mm respectively. In addition, the size of the power supply was greatly reduced and now comes built into the monitor. This results in a monitor that takes up 23% less space, giving you more room for other tasks. It is also 6 kg lighter than the previous model for ease of installation.

Hassle-Free Multi-Monitor Configuration

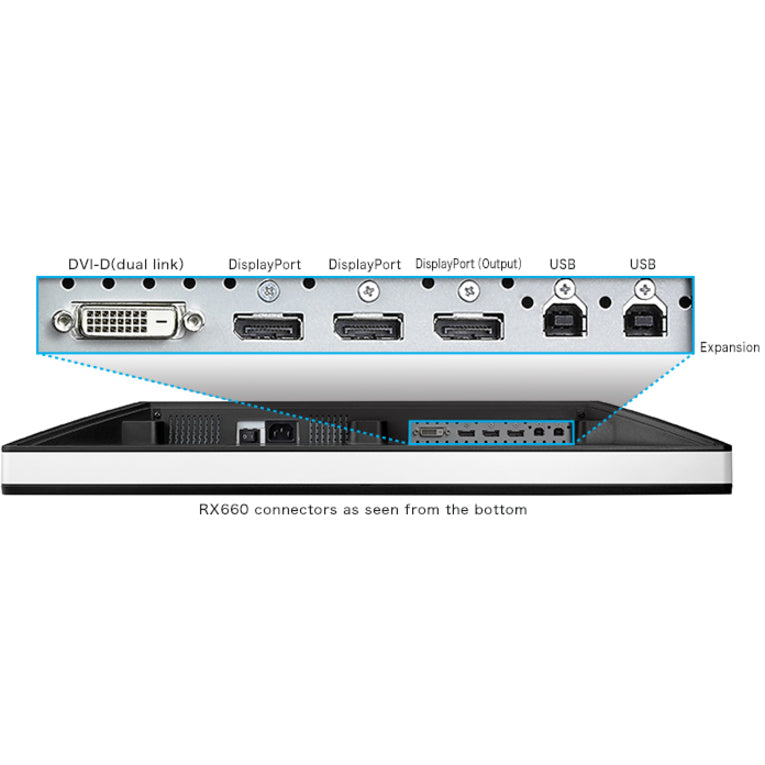

The monitor is equipped with DisplayPort 1.2 input and output terminals. Using a single cable connected to the input terminal, the monitor displays 6 megapixel resolution. In addition, using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.

Seamlessly View Images

The monitor is equipped with Picture by Picture (PbyP) to allow you to view input from two separate video signals on a single screen. In addition, the monitor's slim bezels offers a more comfortable multi-monitor layout for viewing images side-by-side for seamless viewing.

• Aspect ratio of 16:10 delivers a viewing area that works well for home and office


• The 29.9" monitor highlights WQSXGA display with resolution up to 3280 x 2048 pixels


• 1,500:1 contrast ratio for a convenient and enjoyable viewing experience


• DisplayPort interface provides efficient and reliable results through a single connectivity


• View your content easily in well lit areas with 1000 Nit brightness


• 25 ms response time provides flicker-free video and images for your viewing pleasure


• VESA mount compatibility offers a convenient and desired mounting solution


• LED backlight technology provides for industry-leading low power consumption and less hazardous materials

Product Type: LCD Monitor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Weight With Stand (Approximate): 31.31 lb
Vesa Mount Compatible: Yes
Country Of Origin: Japan
Color: White
Product Series: Multi
Brand Name: EIZO
Manufacturer: EIZO
Product Model: RX660-BK
Product Name: RadiForce Multi RX660-BK Widescreen LCD Monitor
Product Line: RadiForce
Manufacturer Part Number: RX660-BK
Manufacturer Website Address: http://www.eizo.com
Package Contents:

• RadiForce Multi RX660-BK Widescreen LCD Monitor
• AC Power Cord
• Signal Cables (DVI-D - DVI-D [Dual Link Supported], DisplayPort - 2x DisplayPort, Short DisplayPort - DisplayPort)
• 2 x USB Cable
• Cable Cover
• Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual) instructions for Use
