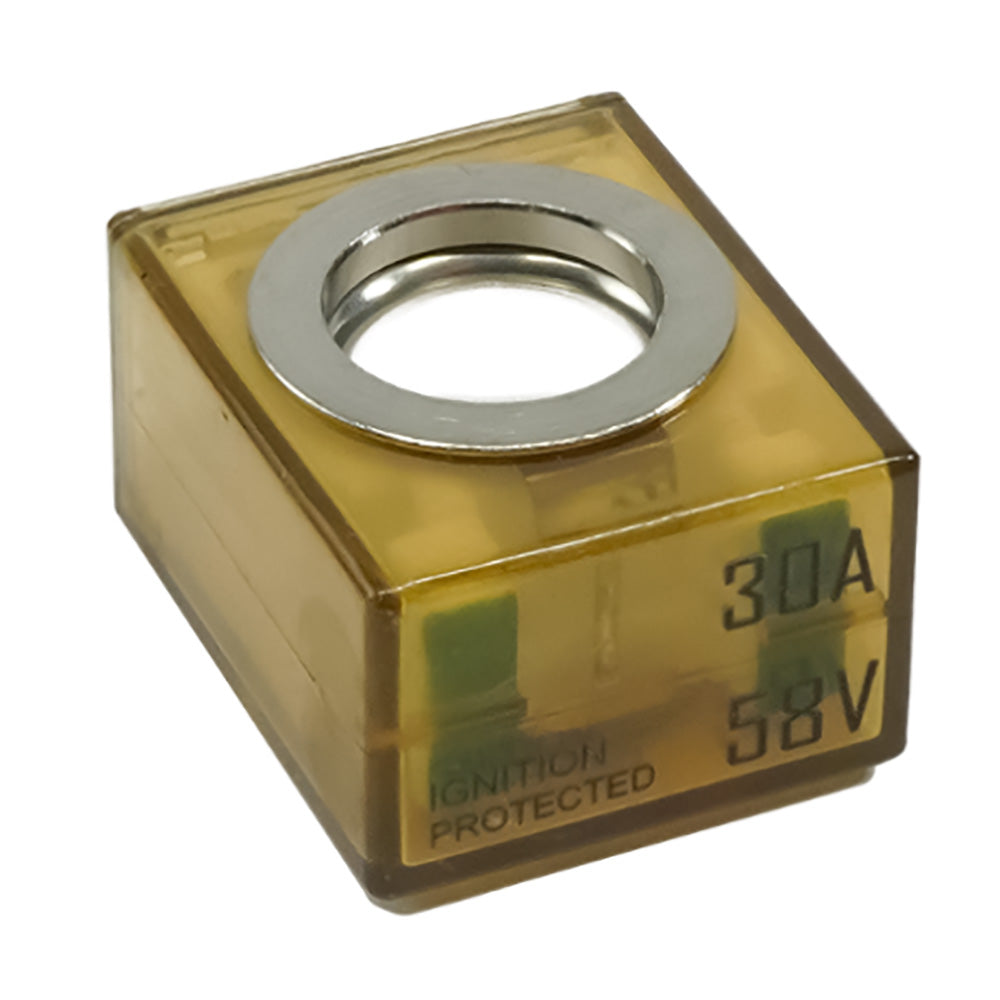

MRBF Terminal Fuse - 30 Amp
- Transparent easy visual of fuse status
- Ignition-protected SAE/J1171-ISO8846
- High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
- Color-coded for easy ID of amperage rating
Features:
- Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
- High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
- Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 58 Vdc Rating: easily supports 12 to 48V nominal applications.
- High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty: We stand behind our product's ability to meet your needs.
Specifications:
- Continuous Current (Amps): 30
- Max Voltage (VDC): 58
- Interrupt Rating @ 14 VDC (Amps): 10,000
- Interrupt Rating @ 48Vdc (Amps): 5,000
- Interrupt Rating @ 58Vdc (Amps): 2,000
- Ingress Protection: IP66
Manufacturer Part Number: 3603-030
