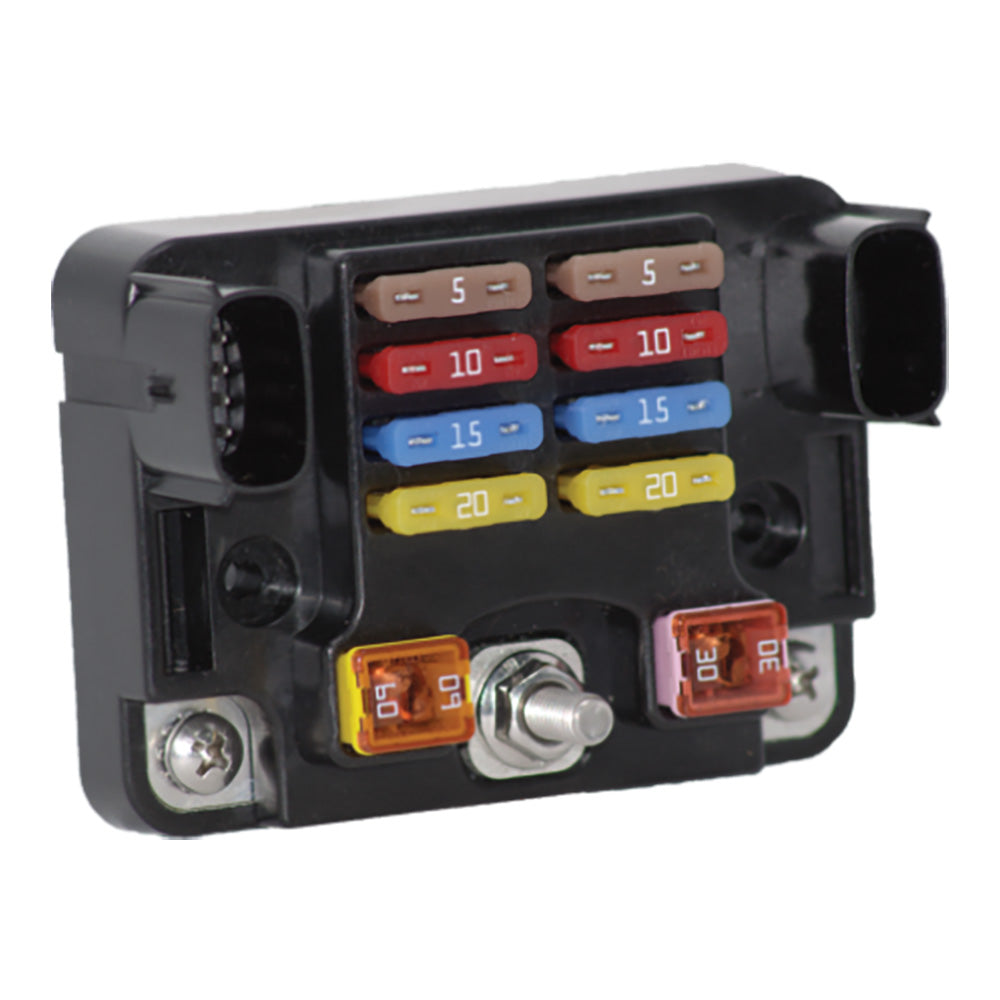

Egis 8 + 2 Fuse Block

8 + 2 Fuse Block

Applications:

• Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
• Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
• Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product

Features:

• Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
• Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
• 4 Year Industry Leading Warranty

Specifications:

• Total Continuous Current (AMPS): 200 AMPS
• Max Current Per ATO Fuse (AMPS): 22 AMPS
• Voltage Range (V DC): 8-36V DC
• Max Current Per LP J Case Fuse (AMPS): 50 AMPS
• Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS
• Max Wire Gauge, MX-150 Connector: 14 AWG
