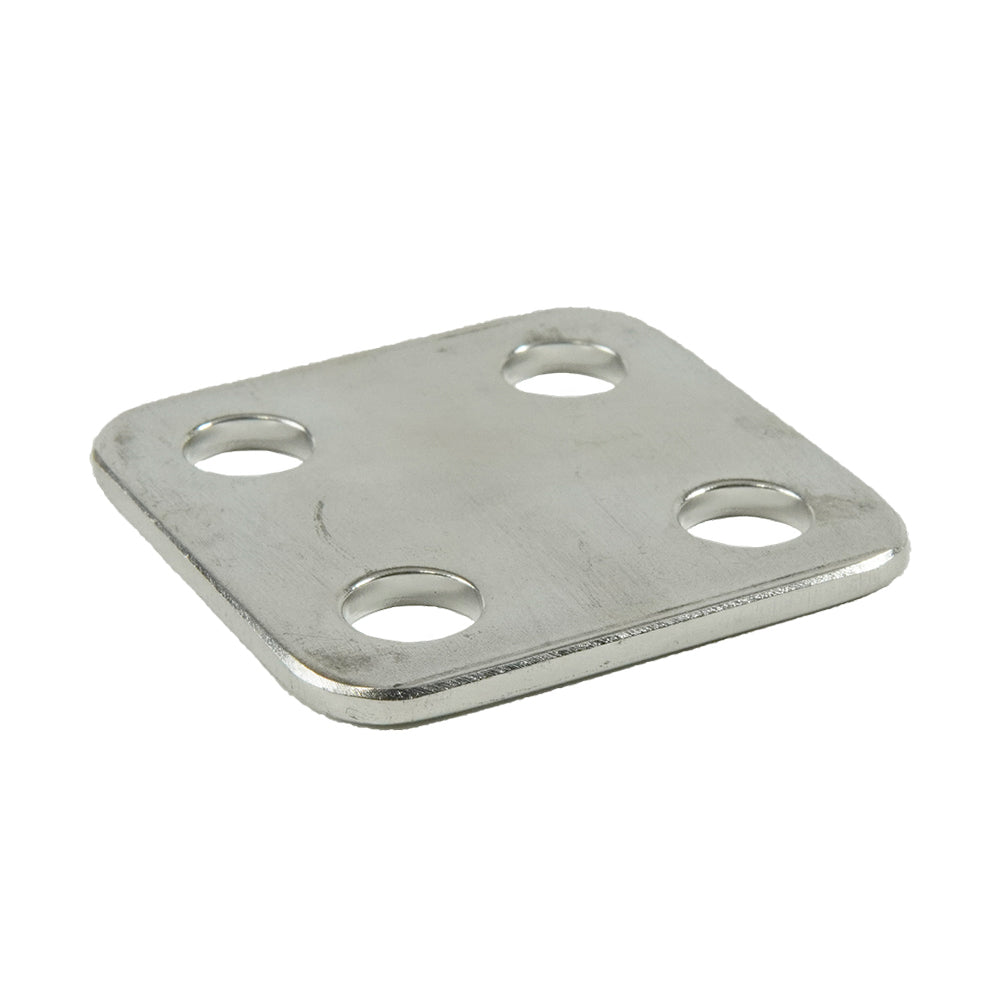

4 Hole Quad Shaped Busbar Connector
Link Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.
Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.
Specifications:
- Continuous Current (Amps): 500
- Max Voltage (Vdc): 72
- Material: Tin Plated Copper
- Size: 90mm x 90mm
- Thickness: 2.8 mm (1/8")
- Terminal Stud Hole Size: 10.5mm (3/8")
Manufacturer Part Number: 8794
