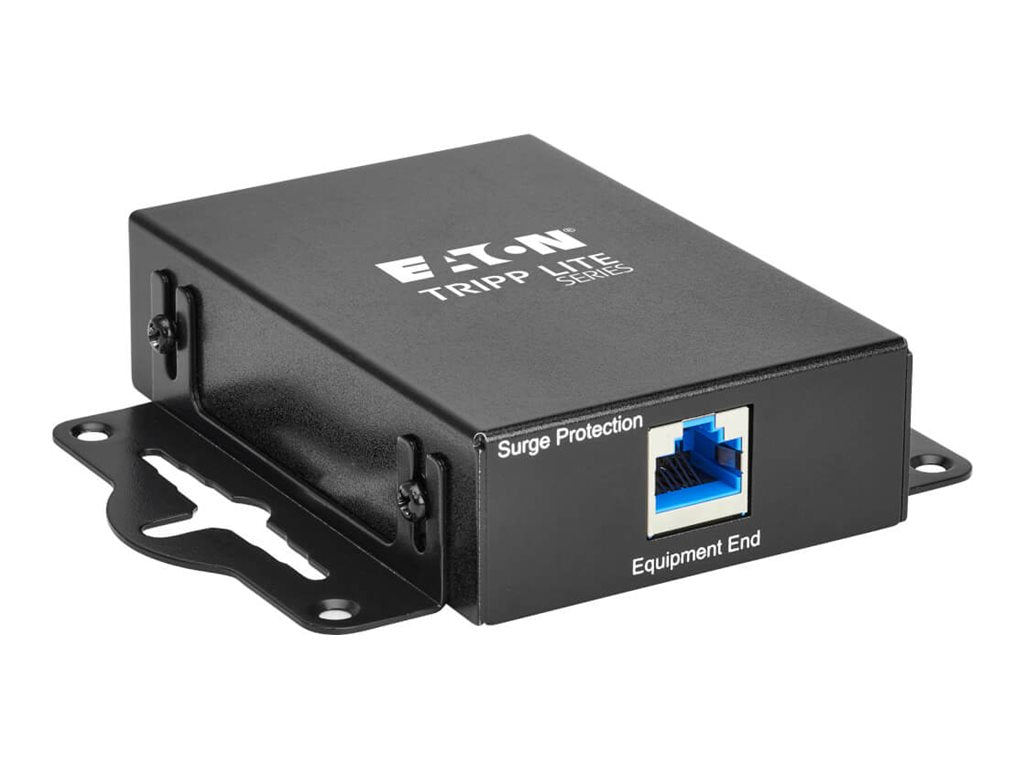

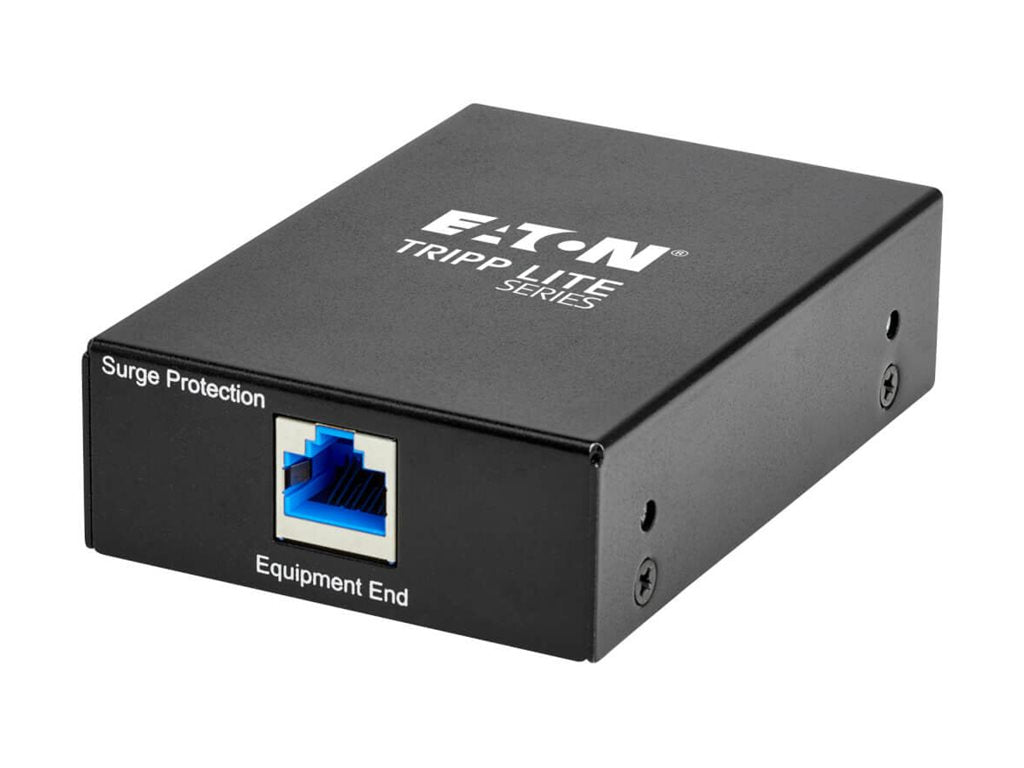

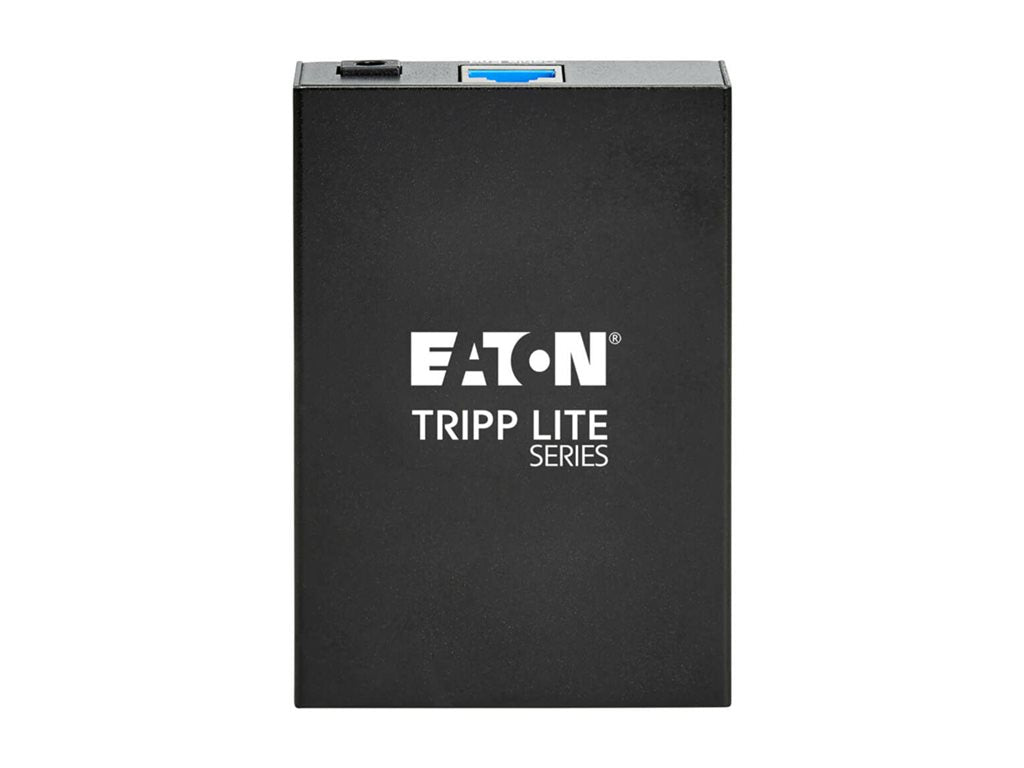

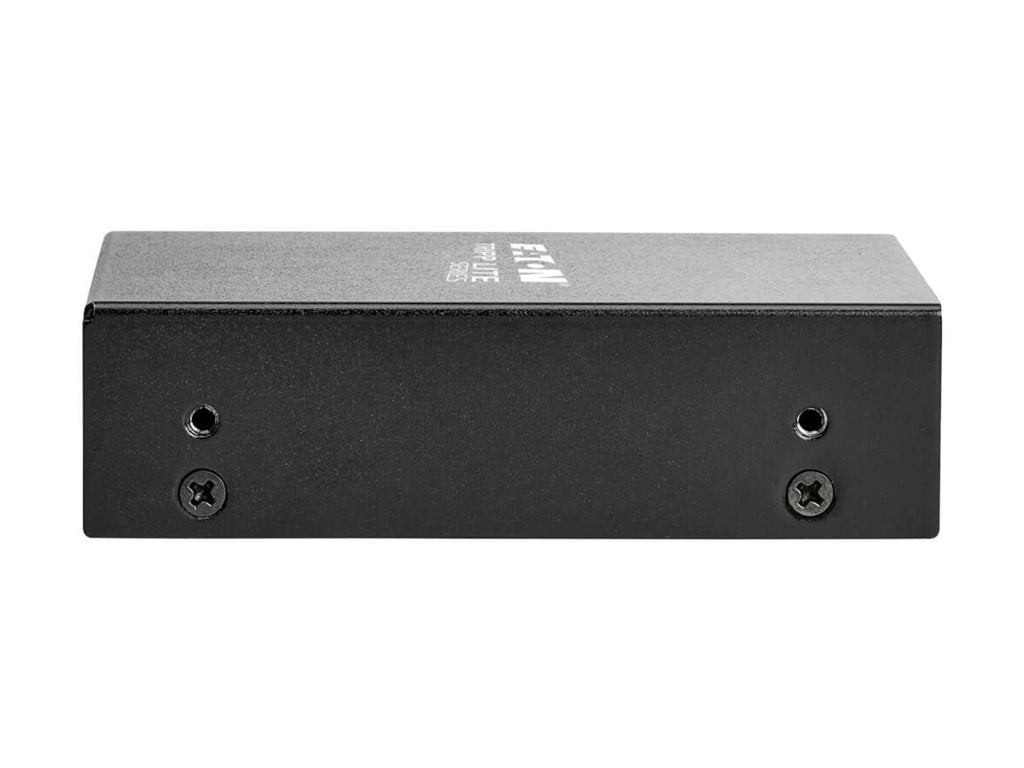

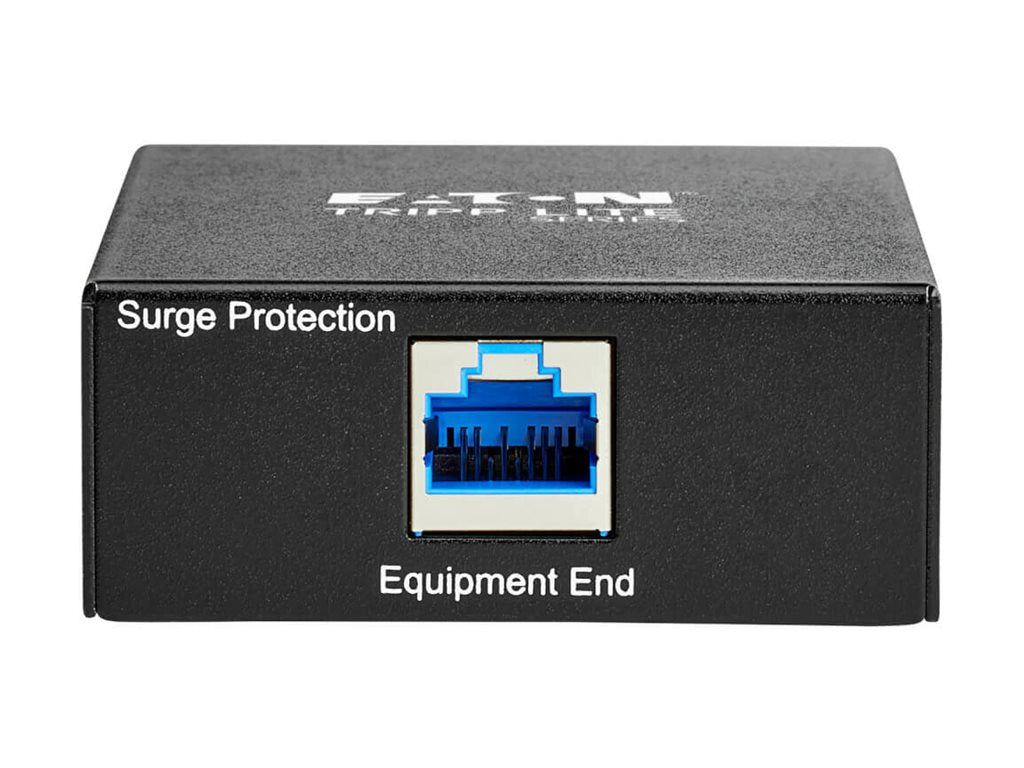

Eaton Tripp Lite Series In-Line PoE Surge Protector - 1 Gbps, IEC Compliant, TAA - PoE surge protector - output connectors: 1 - black - TAA Compliant
-
Reliable surge protection
In-Line PoE Surge Protector offers effective surge suppression with a surge response time of 1 ns, ensuring rapid response to voltage spikes.
-
Compliant design
Meets various compliance standards including IEC 61000-4-2, IEC 61000-4-5, and RoHS, ensuring safety and environmental responsibility.
-
Versatile connectivity
Equipped with an RJ-45 connector for Gigabit LAN, it features one input and one output line for straightforward integration into network systems.
-
Robust environmental performance
Designed to operate within a 0-85% humidity range, the surge protector functions effectively in varied environmental conditions.
-
Enhanced lightning protection
Offers multiple levels of lightning protection, including up to 30 kV ESD protection and 5 kA lightning protection, reducing the risk of damage.

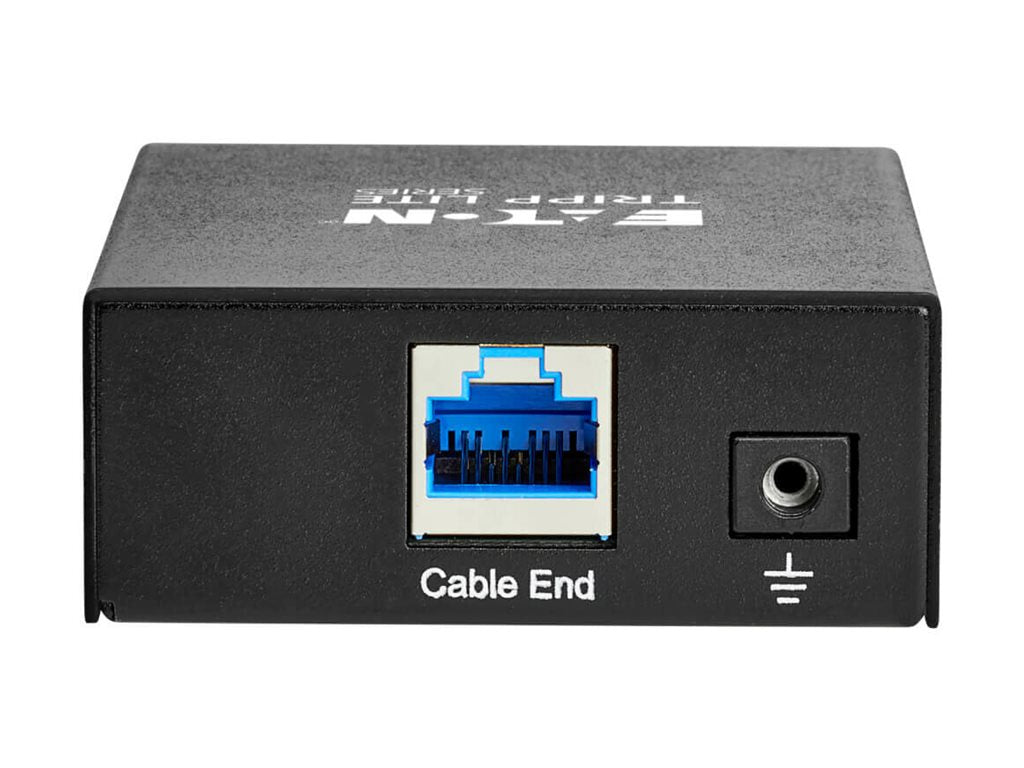

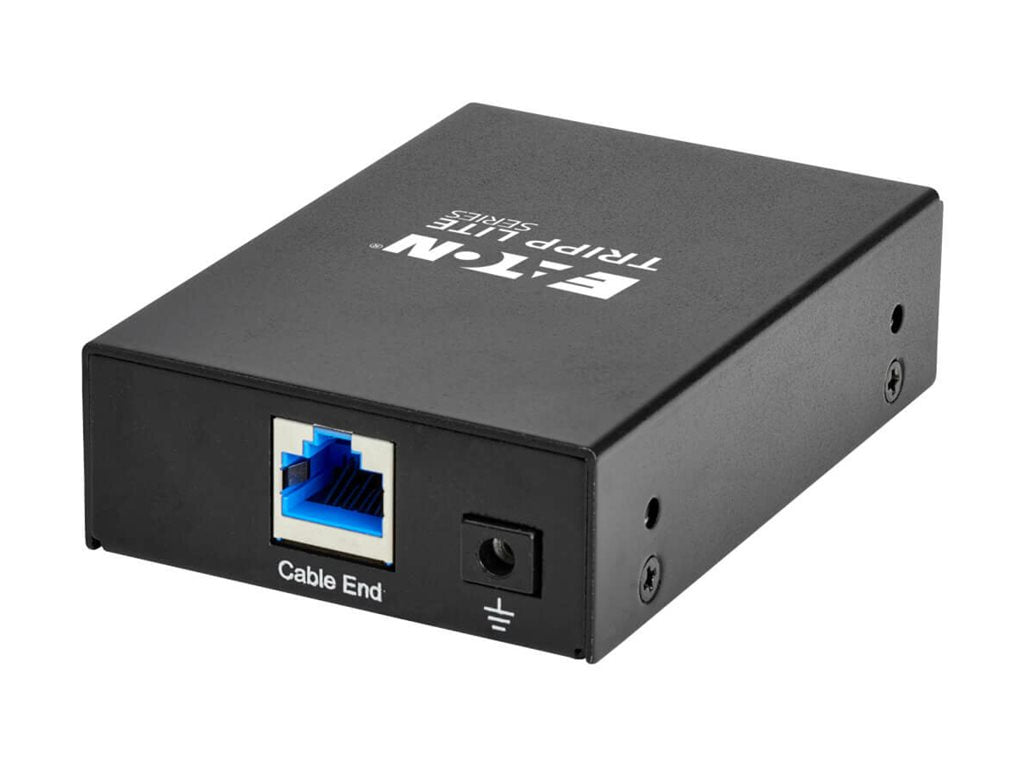

Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-POE-1 protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source and network equipment using Cat5e/6 cables.
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Both mid-span and end-span PoE are supported. The B110-SP-POE-1 meets the following IEC/EN regulations: IEC 61000-4-2 / IEC 61000-4-5 (ESD) 30kV (Air, Contact) and EN 61000-4-5 5kA / 4kV.

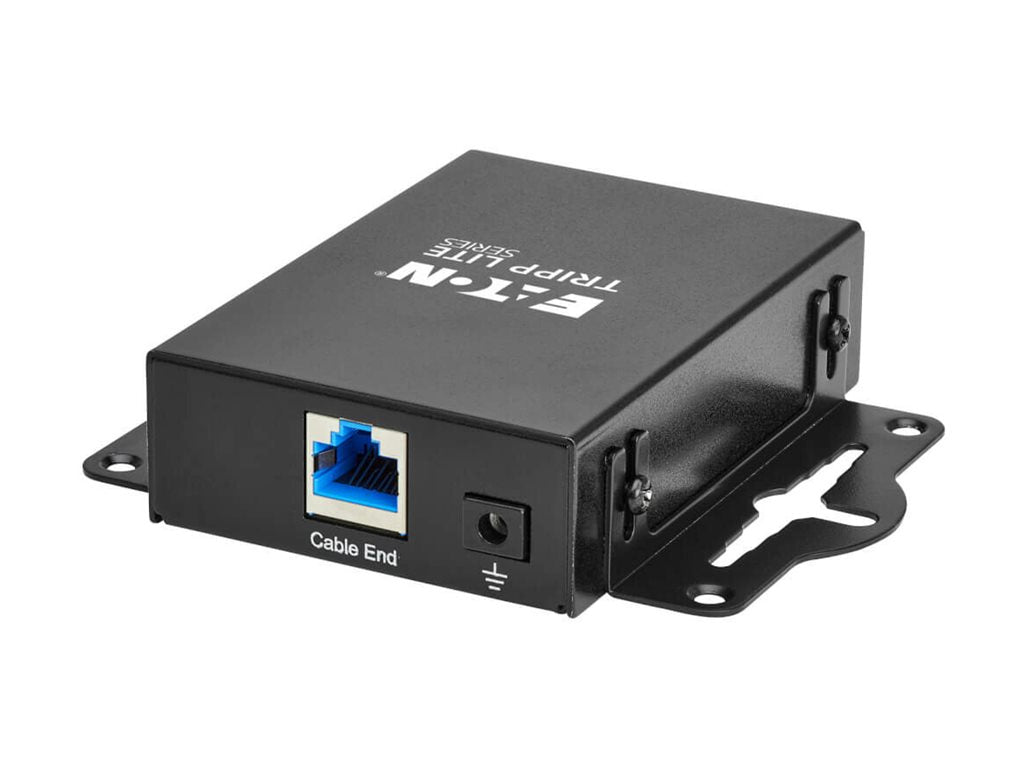

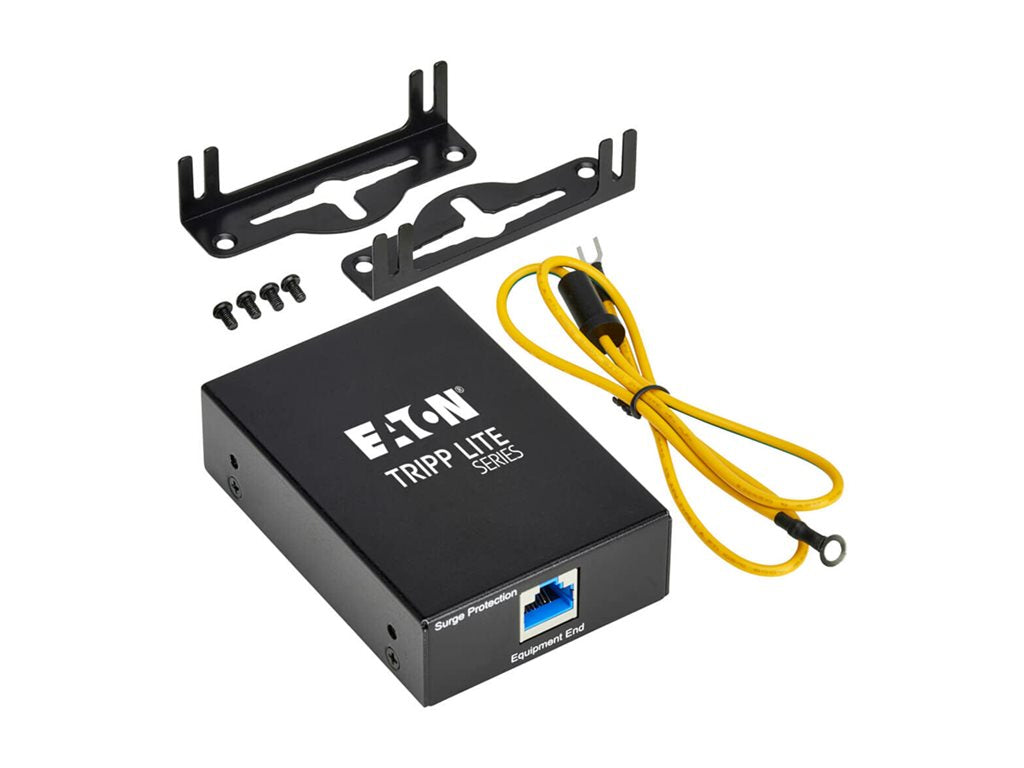

This PoE in-line surge protector meets 802.3af and 802.3at IEEE standards, while supporting data transmission speeds up to 1 Gbps. No software or external power supply is required. The compact housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-POE-1 and the equipment it is protecting is no more than 300 feet (91 meters).
The B110-SP-POE-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Easy to connect between PoE source and device using standard Cat5e/6 cabling
- Rapid reaction time under 1 ns helps prevent damage from power surges
- Supports 802.3af/802.3at IEEE standards and data transmission speeds up to 1 Gbps
- Plug-and-play operation with no software required for easy, immediate installation
- This product is covered by a 2-year limited warranty
