Eaton Tripp Lite series DisplayPort to HDMI 3-Port Multi-Monitor Splitter 8K/4K 60Hz DP 1.4 TAA - Video/audio splitter - 3 x HDMI - desktop - TAA Compliant
-
Versatile connectivity
This splitter offers three HDMI outputs, allowing multiple monitors to display content simultaneously for enhanced productivity or entertainment.
-
High-resolution support
Capable of supporting video resolutions up to 3840 x 2160 at 60 Hz, ensuring that every detail is clear and vibrant.
-
Durable design

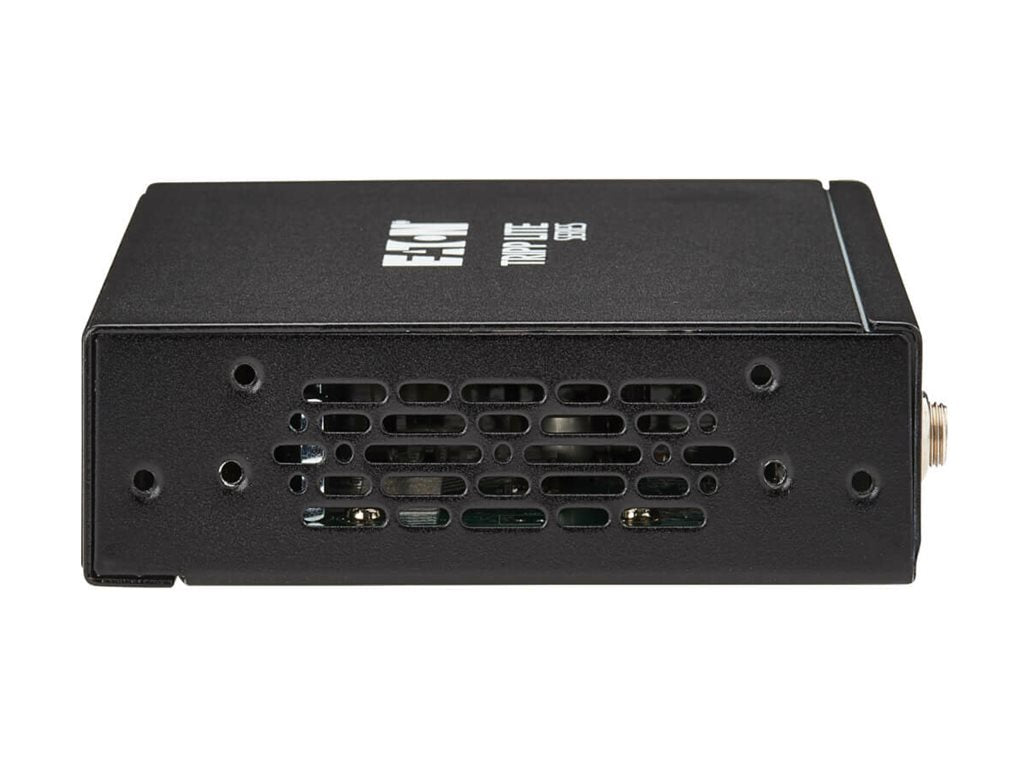

Constructed with a rugged metal housing, this splitter is designed to withstand regular use in demanding environments, ensuring reliable performance.
-
Efficient power delivery
With power over cable technology, this device streamlines your setup by reducing the need for additional power sources.
-
User-friendly features

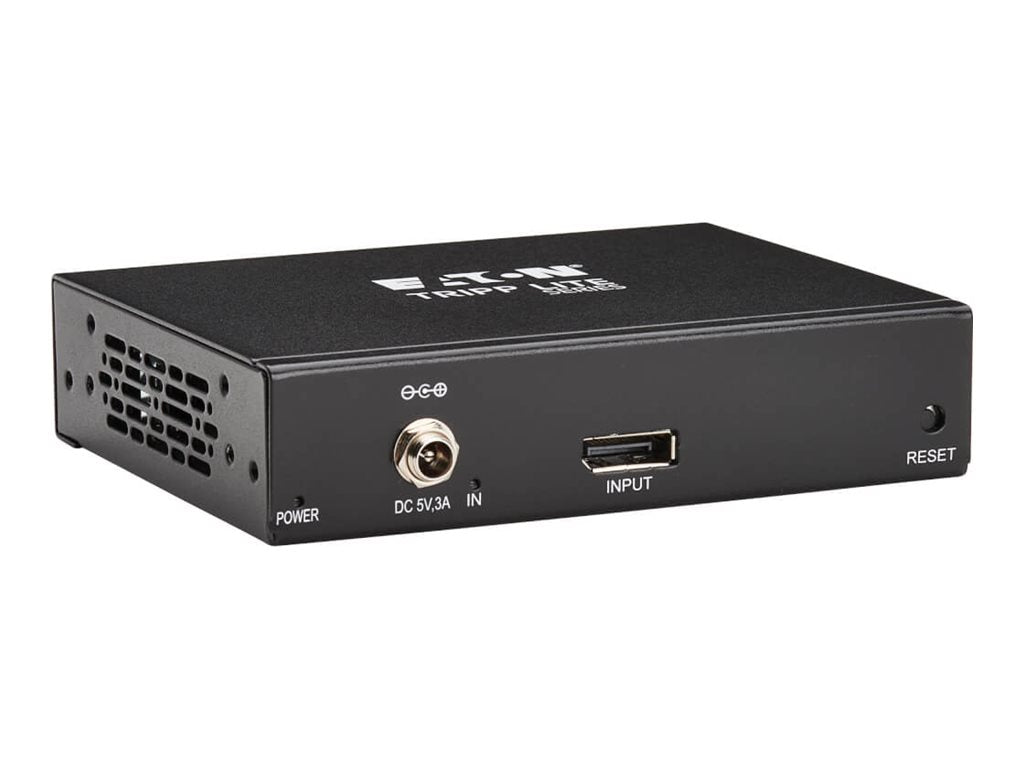

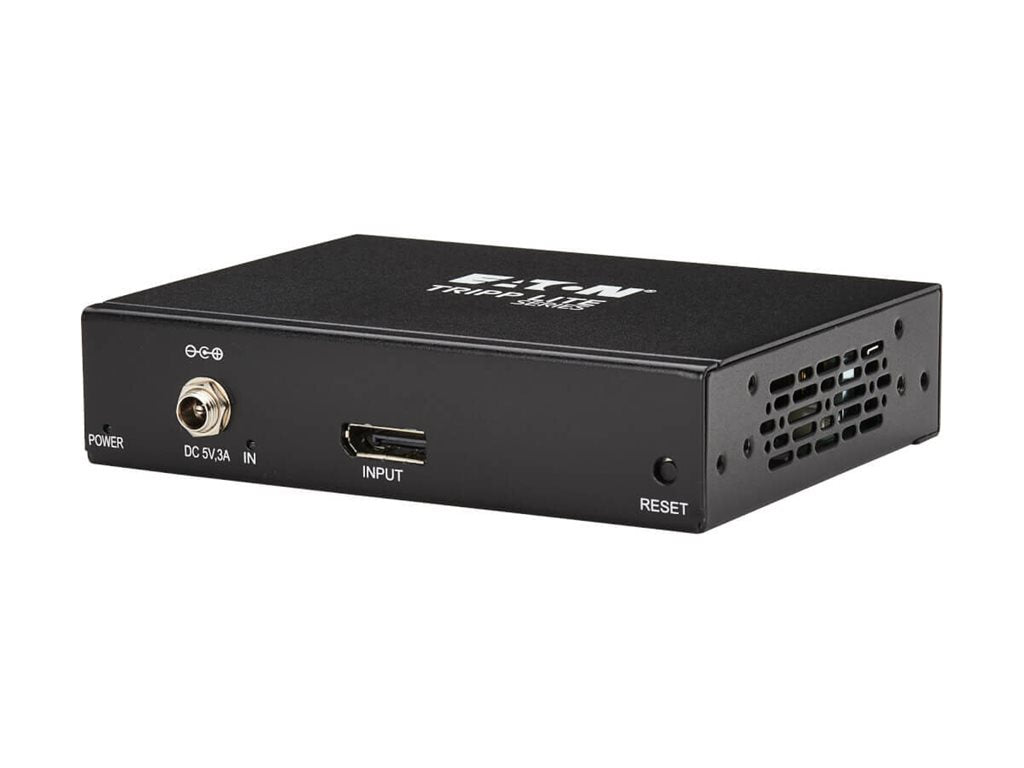

The Plug-and-Play functionality makes installation simple, while the reset button provides easy troubleshooting if any issues arise.

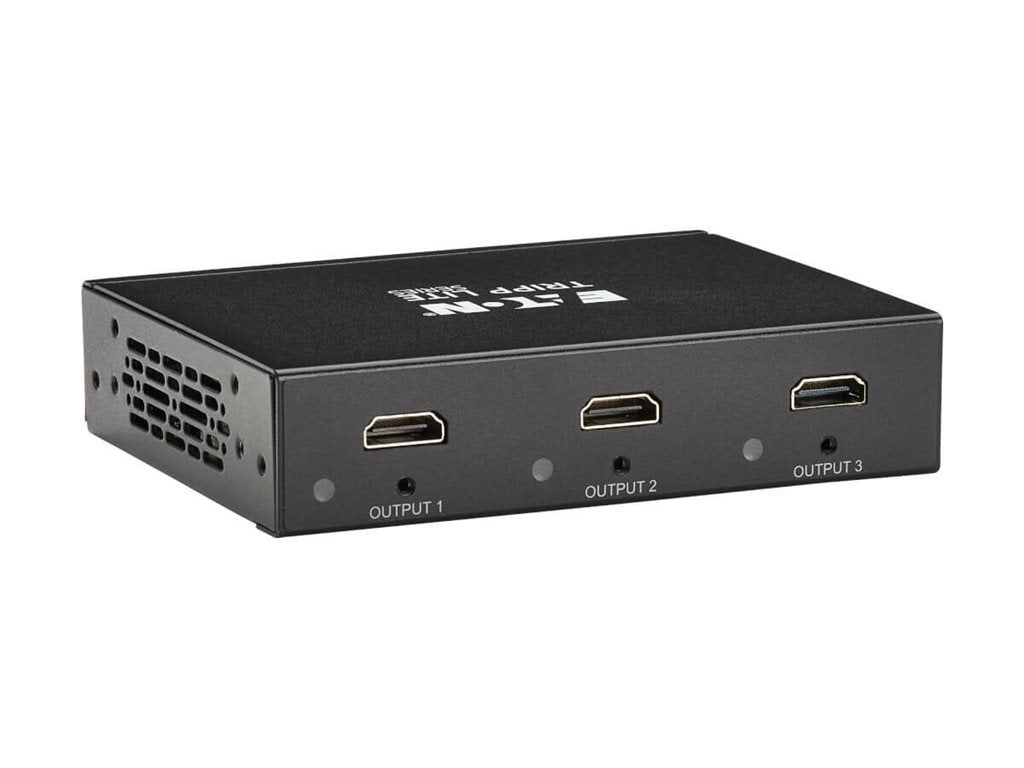

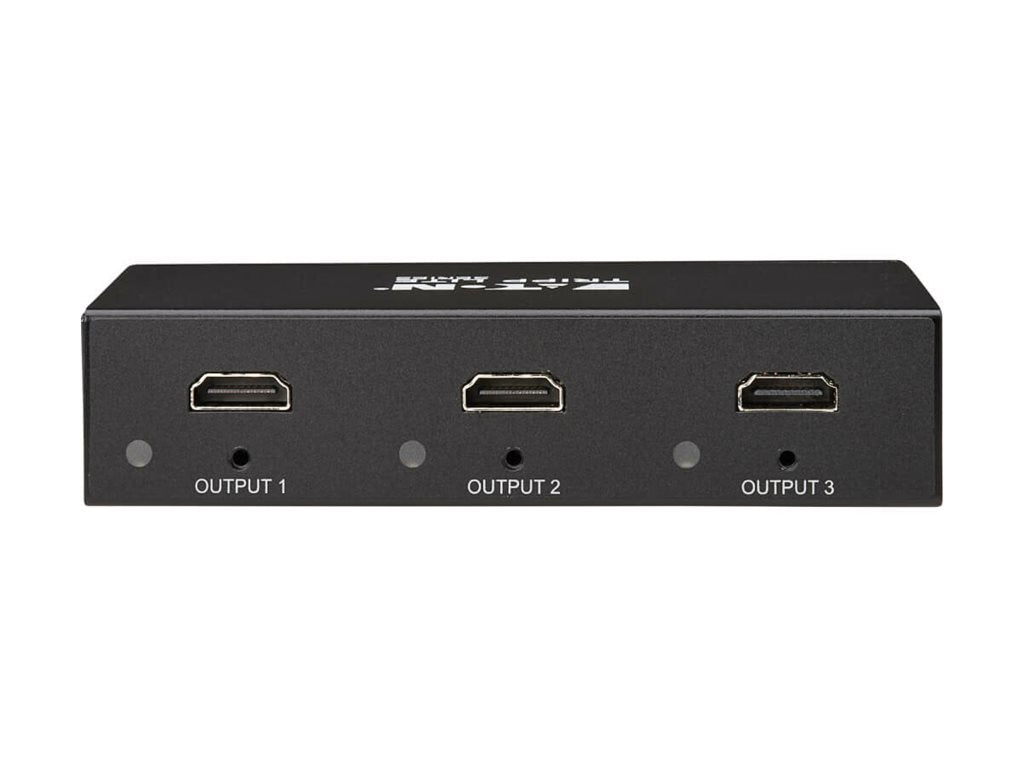

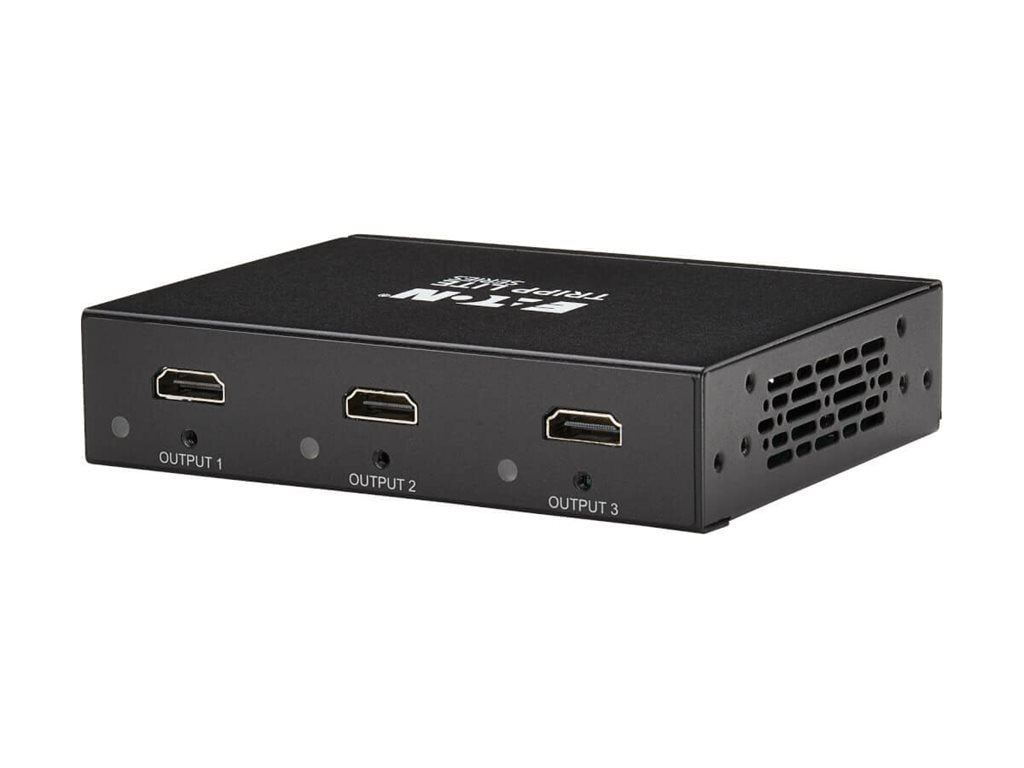

This multi-display splitter connects three 4K or 8K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156-003-H8K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations. By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect three monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across all monitors or combine all monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
The B156-003-H8K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 16-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 11520 x 2160 at 60 Hz (3x1 vertical configuration) and 3840 x 6480 at 60 Hz (1x3 horizontal configuration). The B156-003-H8K is compliant with HDMI 2.0 standards and is backward compatible with previous versions.

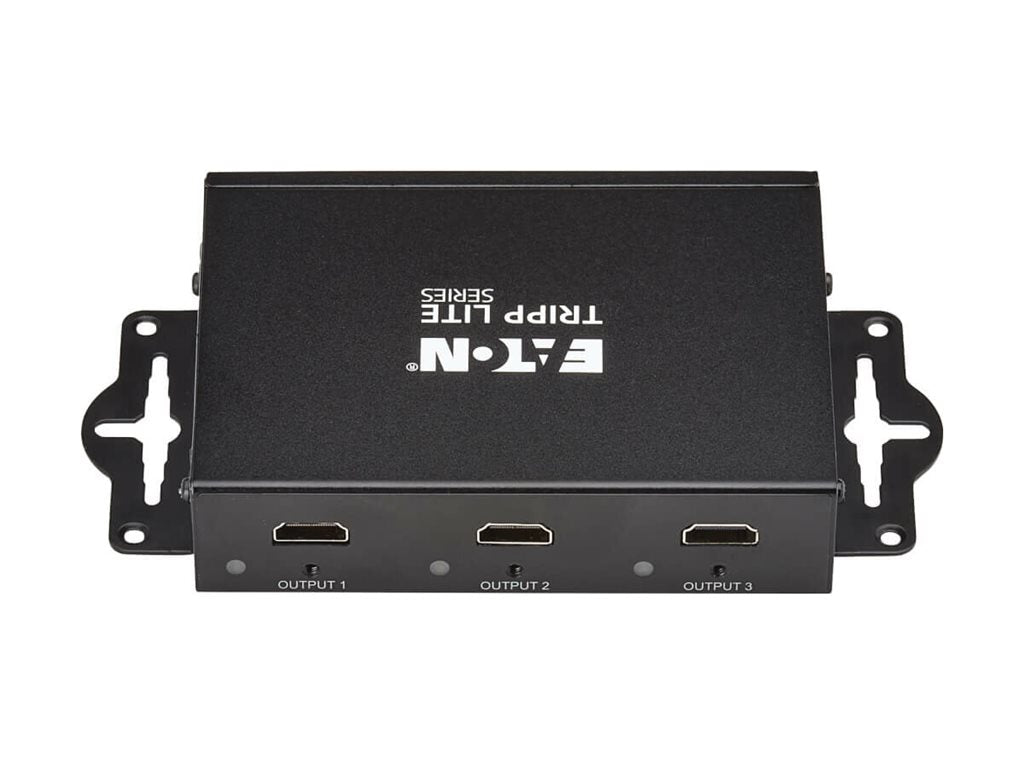

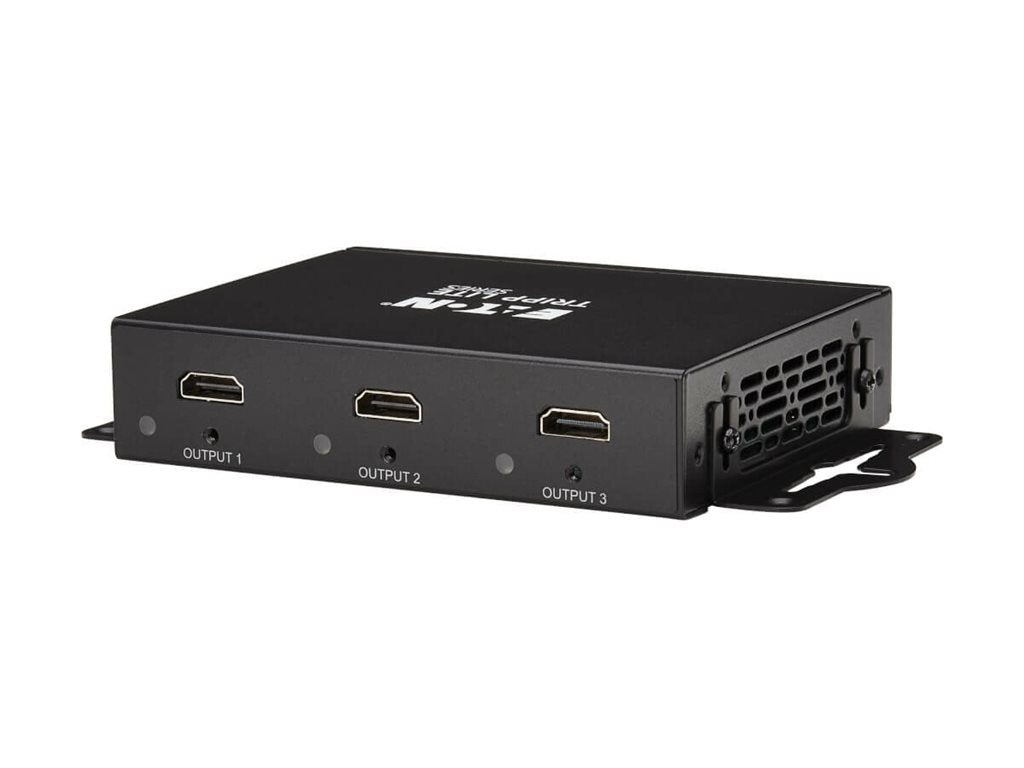

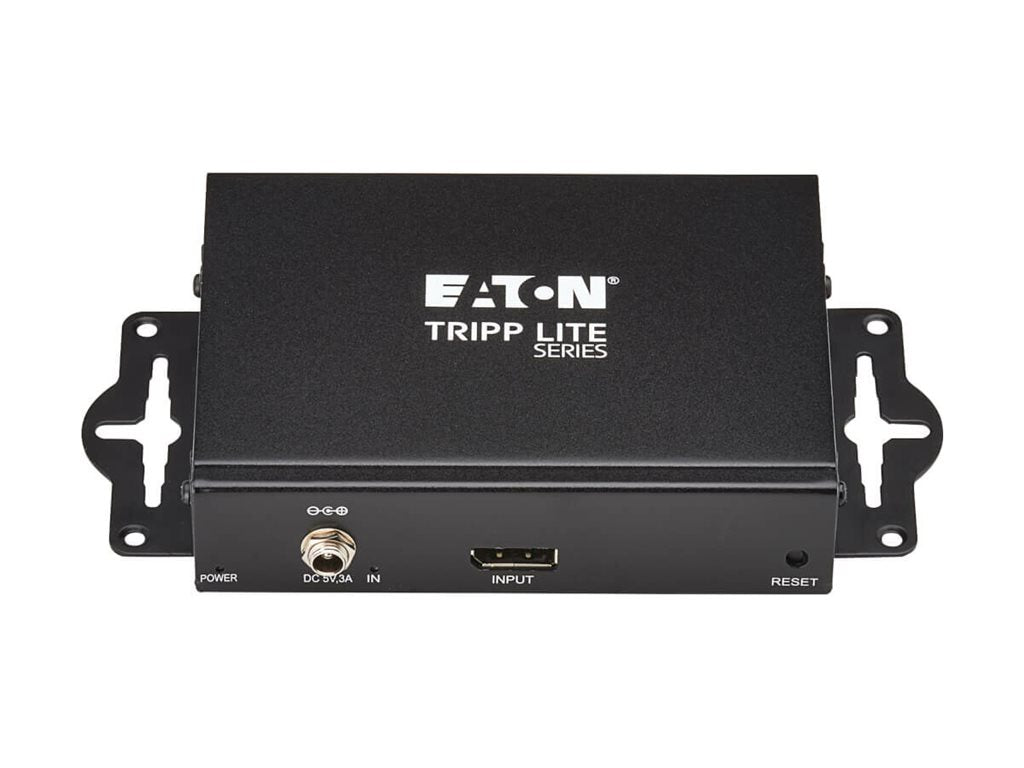

The B156-003-H8K supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. HDCP 2.3 encryption allows you to stream 4K content with no complications. Just connect your source device and your monitors with user-supplied HDMI cables up to 15 feet (4.6 meters). No software or drivers are needed. Plug the included external power supply into a compatible AC outlet. Four international plug adapters (North America, Europe, U.K., Australia) are also included. Rugged metal enclosure comes with detachable brackets for mounting on a level surface. The B156-003-H8K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Transmits in mirrored, extended and video wall modes for advanced digital signage
- Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
- Complies with HDMI 2.0 standards and backward compatible with earlier versions
- Ready for plug-and-play operation with no additional software or drivers needed
- This product is covered by a 1-year limited warranty
