Eaton Tripp Lite series DisplayPort to DisplayPort 2-Port Multi-Monitor Splitter 8K/4K 60Hz DP 1.4 TAA - Video/audio splitter - 2 x DisplayPort - desktop - TAA Compliant
-
High-performance video splitter
This video/audio splitter allows for the simultaneous connection of two displays, enhancing productivity and user experience.
-
Robust design
Constructed with a rugged metal housing, this product is built to withstand everyday usage while maintaining reliability.
-
Extensive compatibility
Supports a range of standards including HDCP 1.4 and HDCP 2.3, ensuring compatibility with various devices and media.
-
Advanced display features
Offers features such as HDR support, 4:4:4 chroma subsampling, and video wall support for intricate visuals.
-
Efficient power usage
With a power consumption operational rate of only 26.5 W, this splitter effectively manages energy without sacrificing performance.

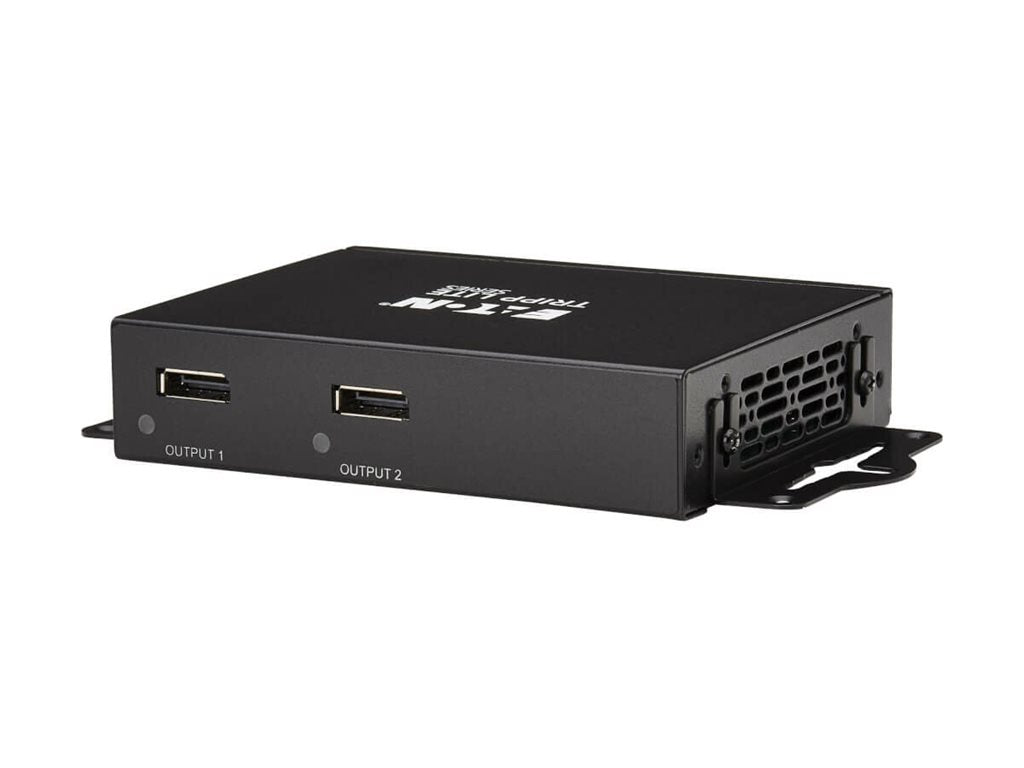

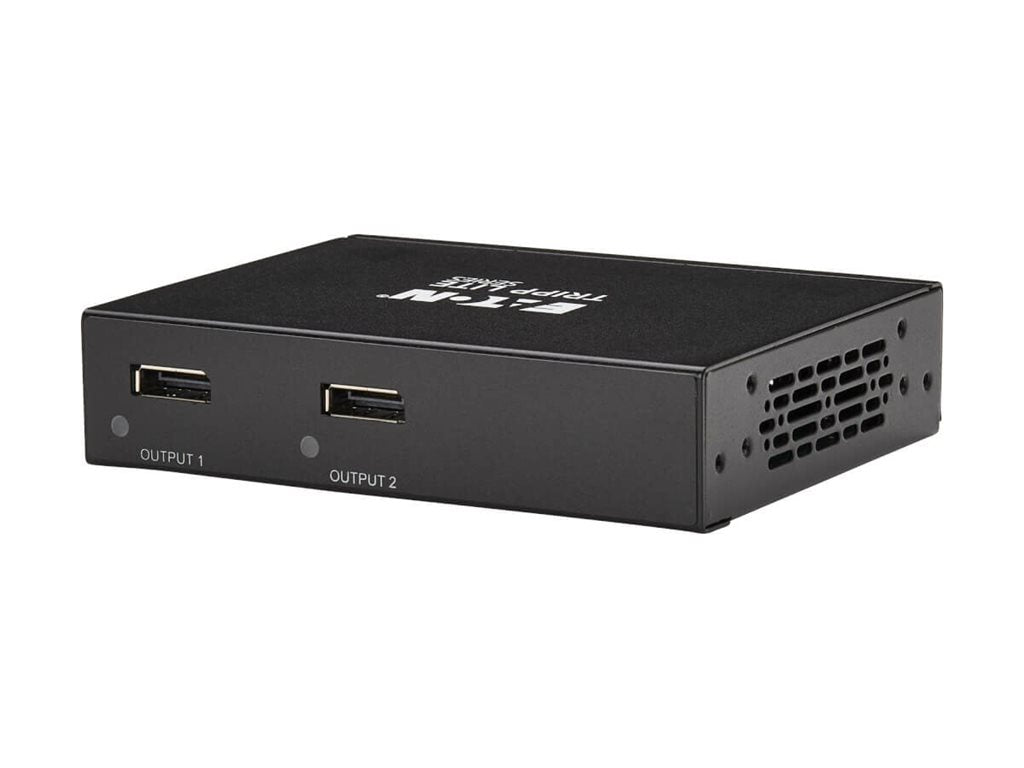

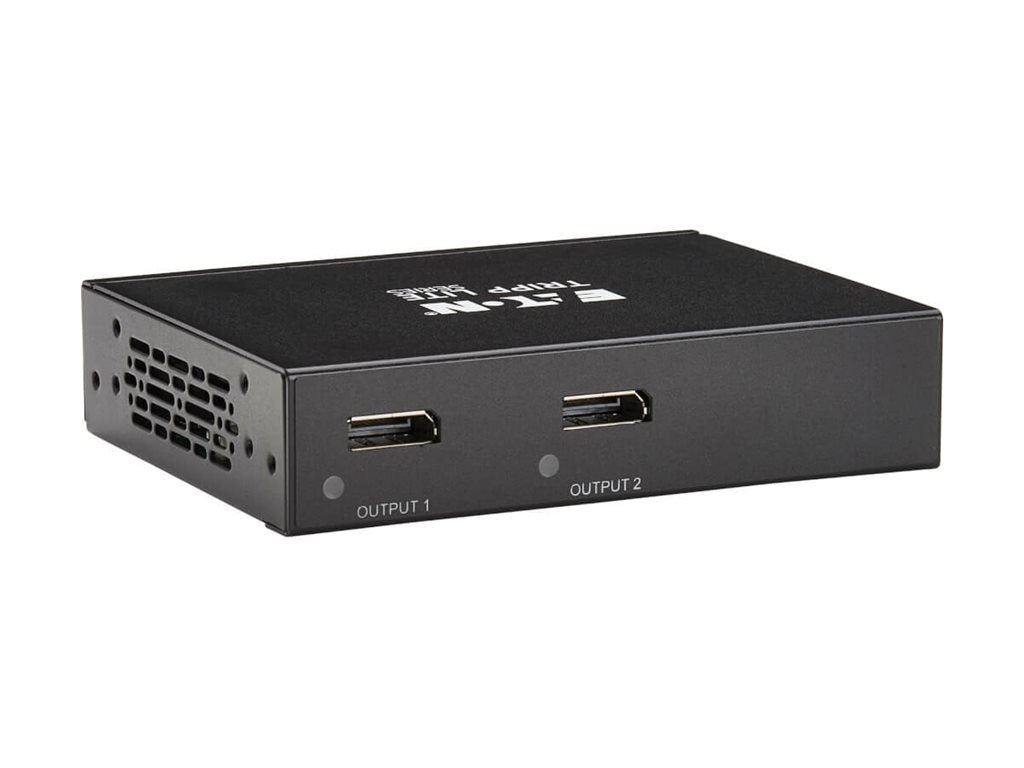

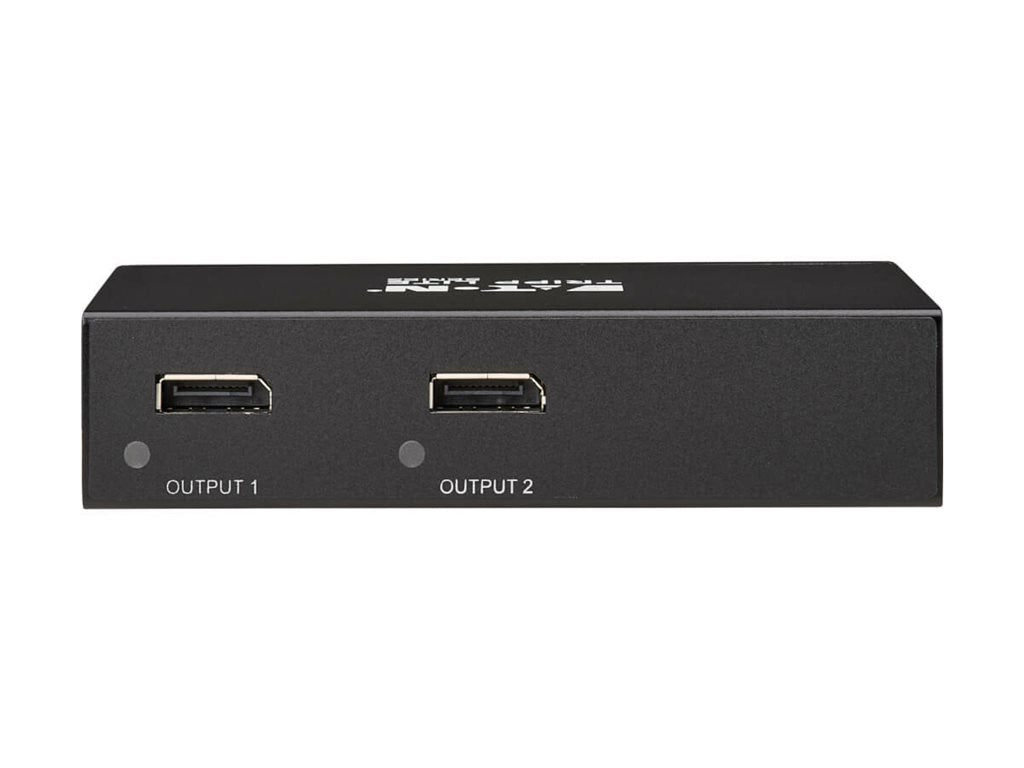

This multi-display splitter connects two 4K or 8K DisplayPort monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156-002-8K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations. By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect two monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across both monitors or combine both monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
The B156-002-8K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 12-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 7680 x 2160 at 60 Hz (2x1 vertical configuration) and 3840 x 4320 at 60 Hz (1x2 horizontal configuration). The B156-002-8K is compliant with DisplayPort 1.4 standards and is backward compatible with previous versions. The B156-002-8K supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no complications. This splitter also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

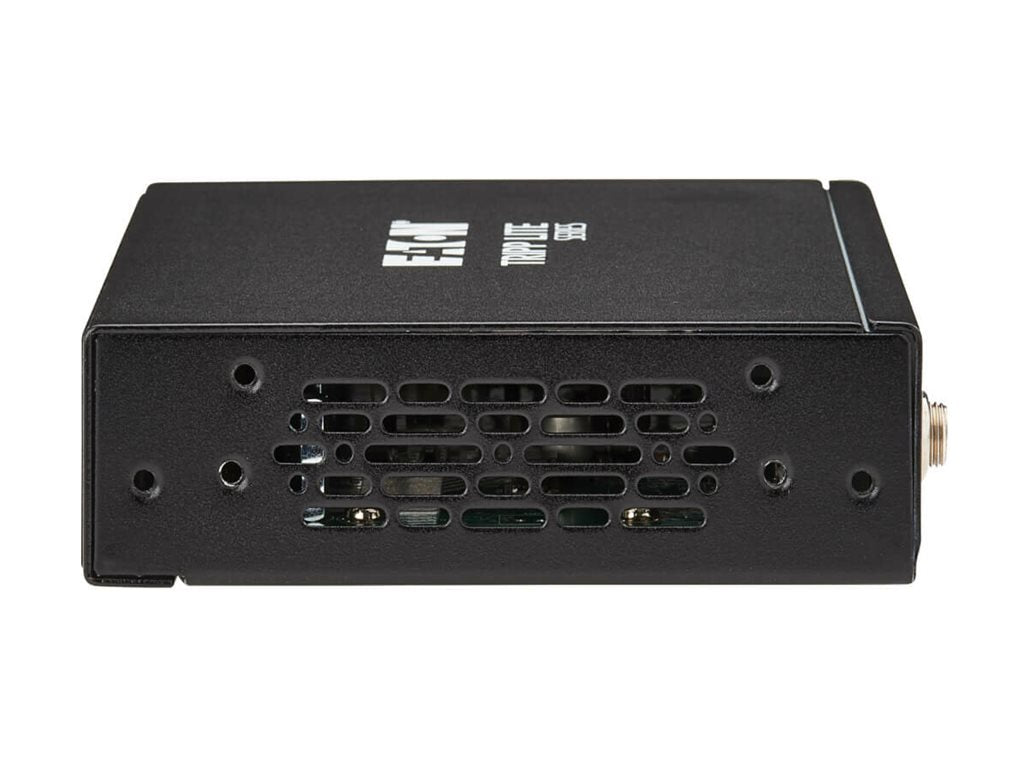

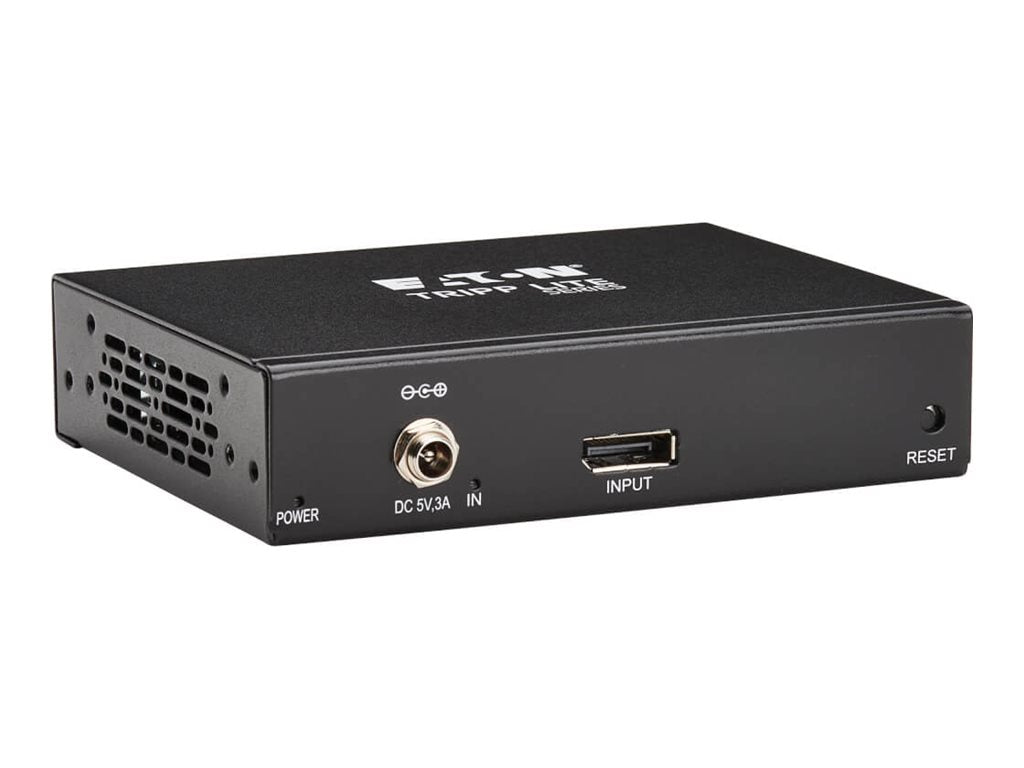

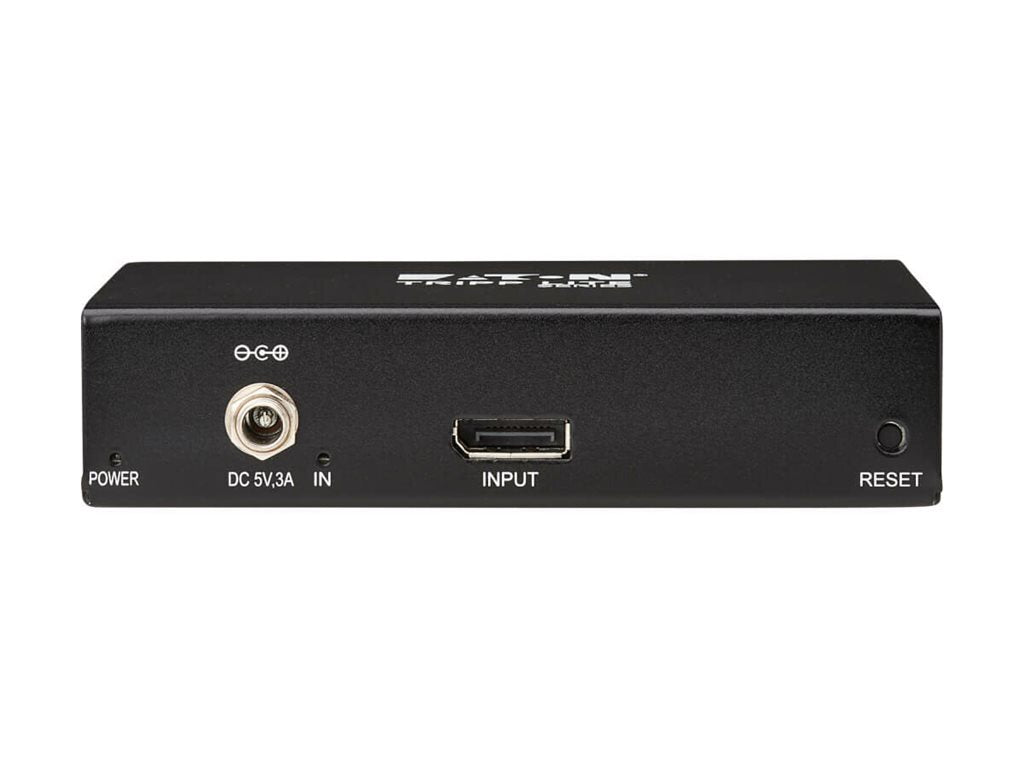

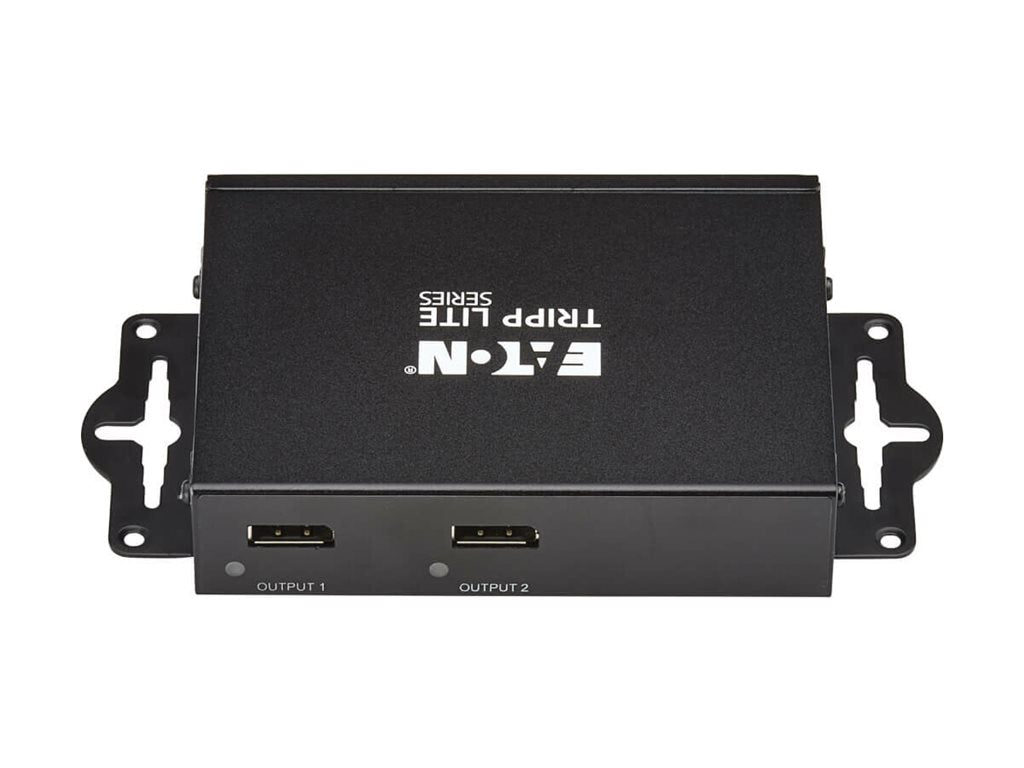

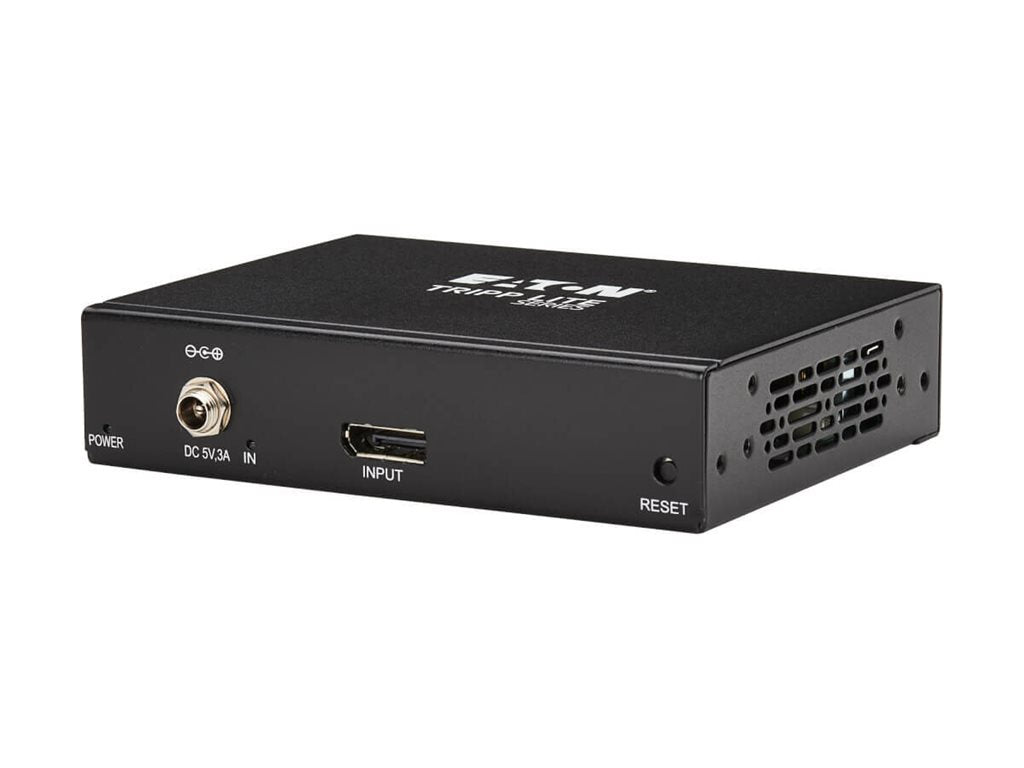

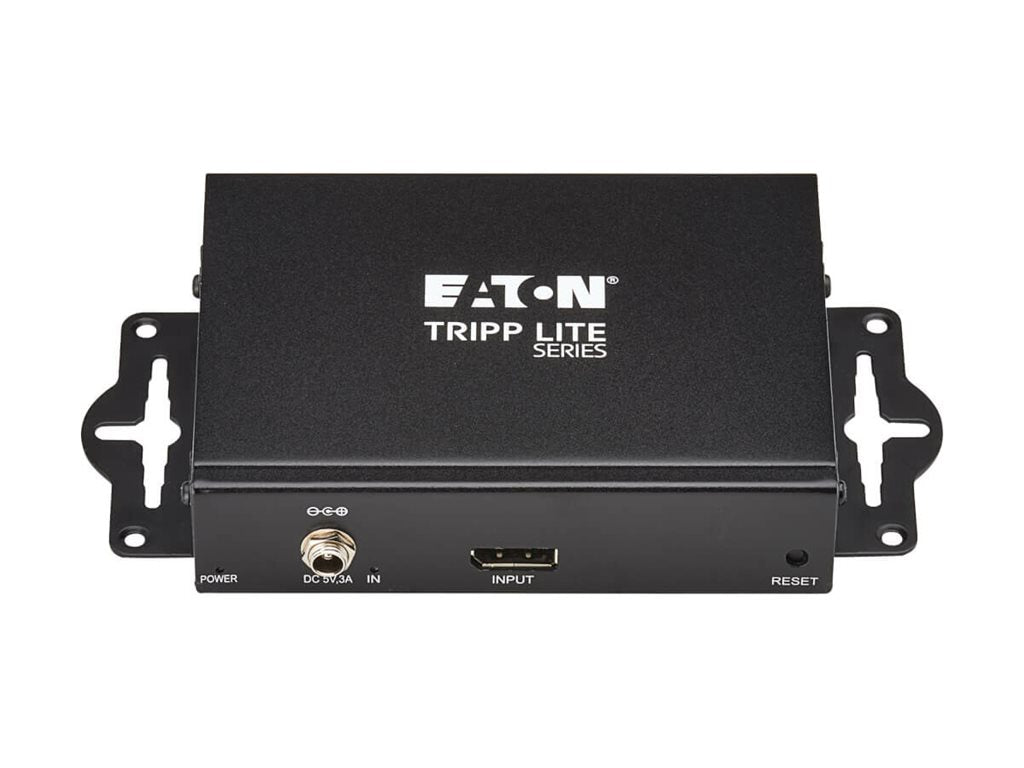

Just connect your source device and your monitors with user-supplied DisplayPort cables up to 15 feet (4.6 meters). No software or drivers are needed. Plug the included external power supply into a compatible AC outlet. Four international plug adapters (North America, Europe, U.K., Australia) are also included. Rugged metal enclosure comes with detachable brackets for mounting on a level surface. The B156-002-8K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
- Transmits 8K Video Using DisplayPort Cabling
- : When in video wall mode, it is recommended to use monitors of the same brand and model to ensure full functionality.
- Supports HDR and 4:4:4 for the Sharpest Video Possible
- Designed for Plug-and-Play Convenience
- TAA-Compliant for GSA Schedule Purchases
