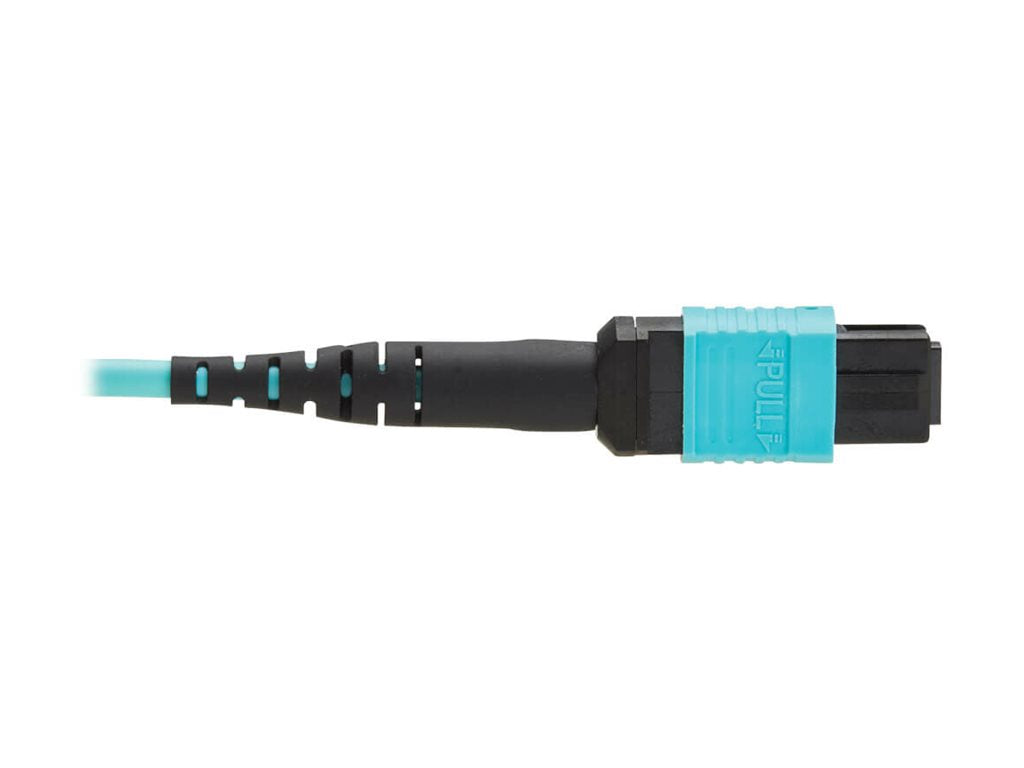

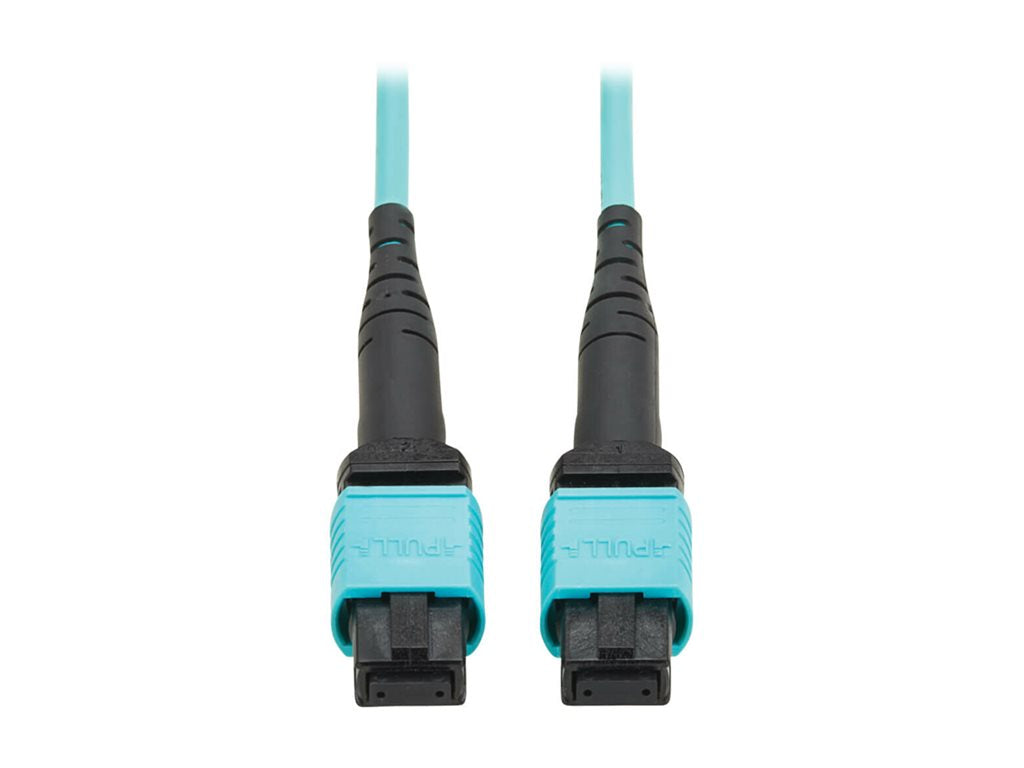

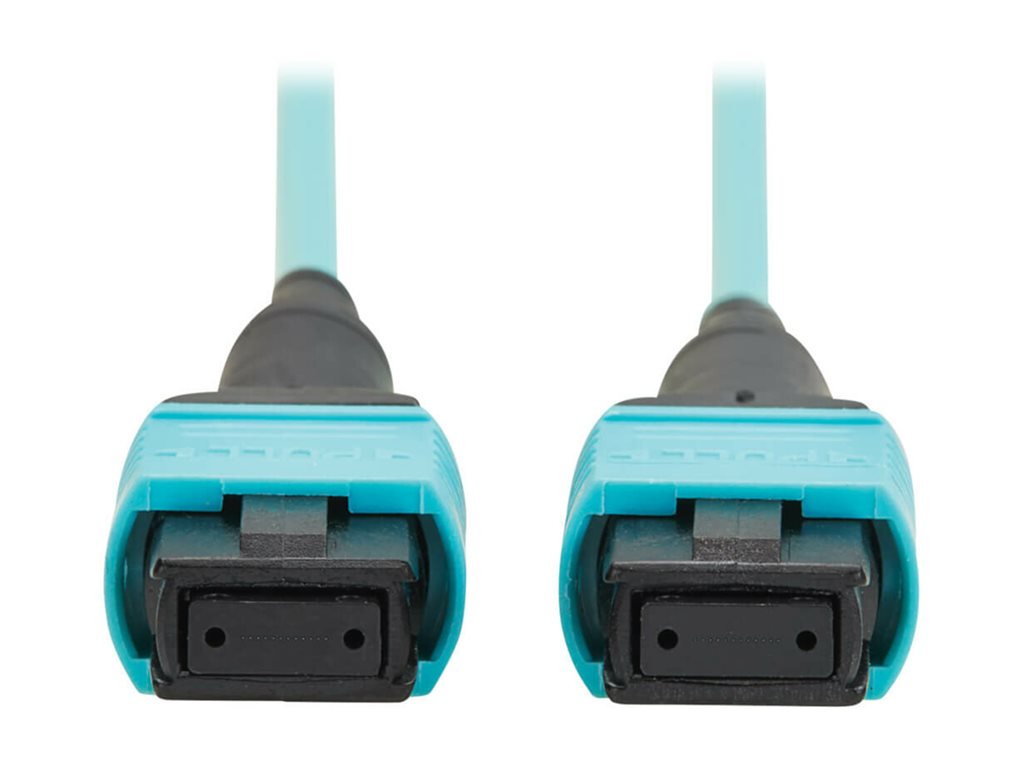

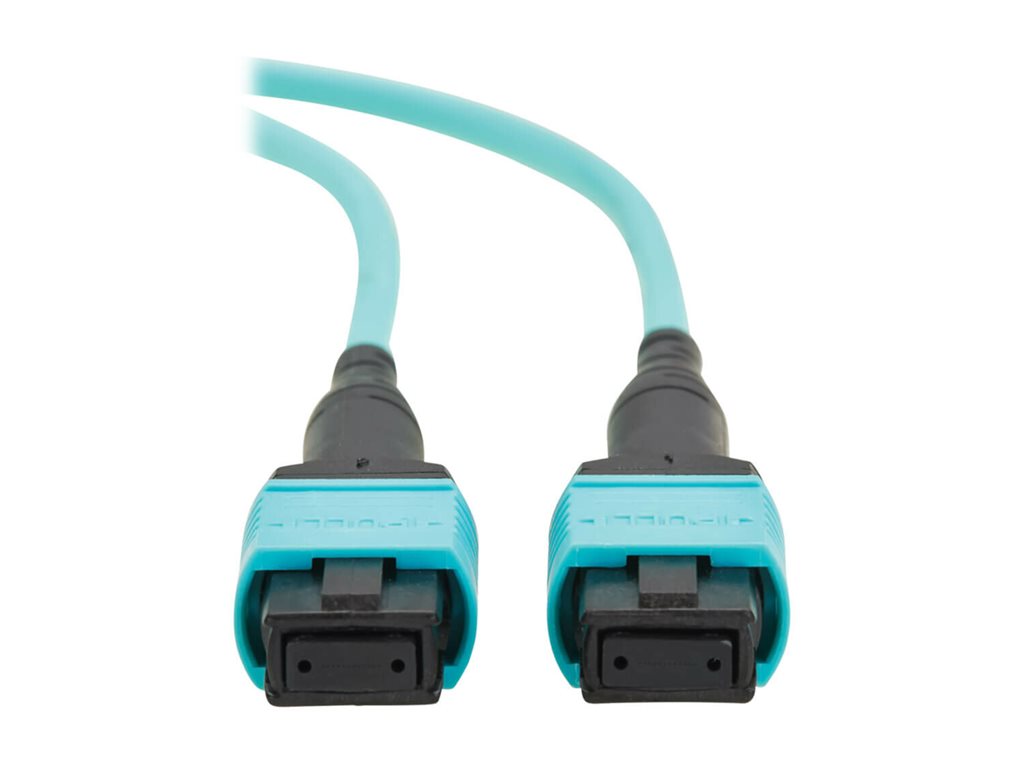

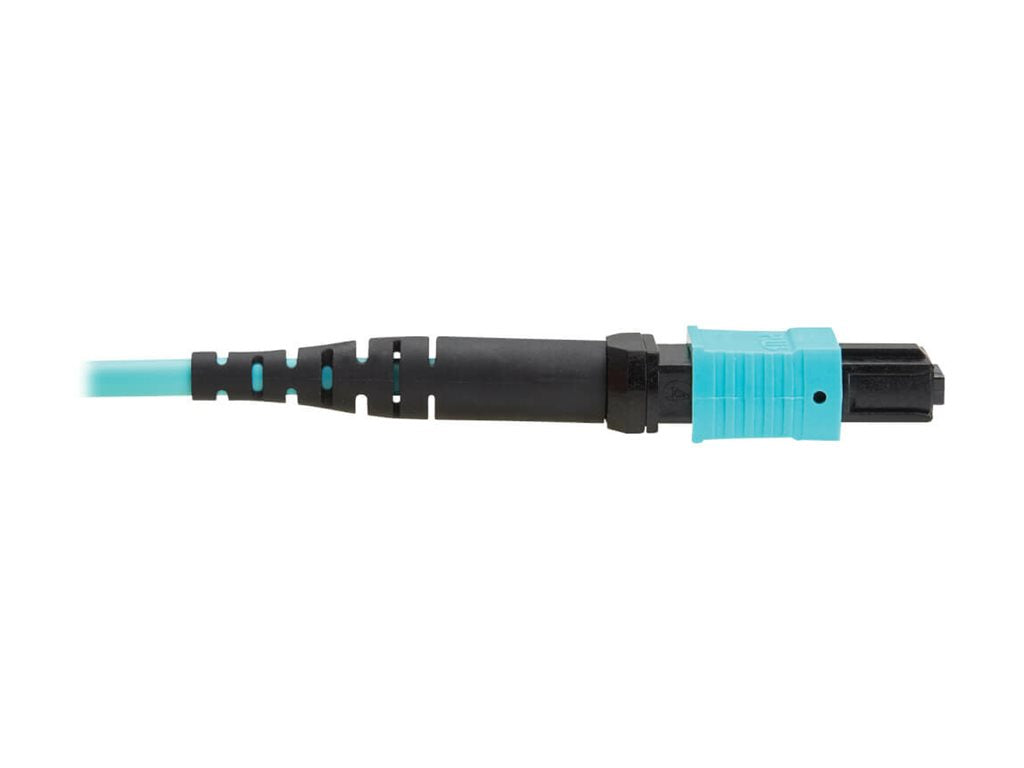

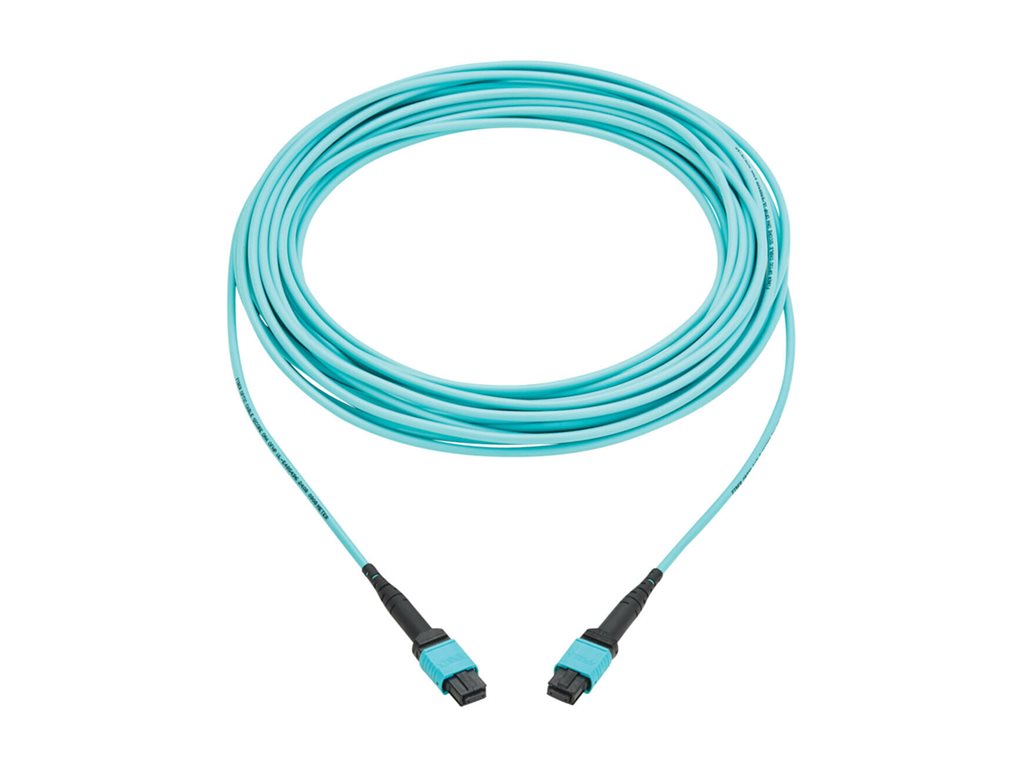

Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable 12F MPO/MPO-PC F/F Type-B Polarity OFNP Aqua 10M TAA - Network cable - TAA Compliant - MPO-12 type-B multi-mode (F) to MPO-12/PC multi-mode (F) - 10 m - 0.1 in - fiber optic - 50 / 125 micron - OM4 - OFNP - aqua
-
High-performance transmission
With a bandwidth capacity of up to 400 Gbps, this network cable facilitates rapid data transfer suitable for high-demand applications.
-
Minimal signal loss
The cable boasts a low insertion loss of 0.6 dB and a return loss of 35 dB, ensuring efficient and reliable data communication.
-
Flexible installation options
Designed with a bending radius of 10 mm for static and 20 mm for dynamic environments, this cable allows for versatile installation in tight spaces.
-
Robust environmental suitability
Capable of operating in temperatures between -20°C and 70°C, the cable is suitable for various environmental conditions.
-
Compliant with industry standards
This product adheres to essential standards such as RoHS, REACH, and is TAA-compliant, making it an ideal choice for professional use.
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-10M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- This product is covered by a Lifetime limited warranty
