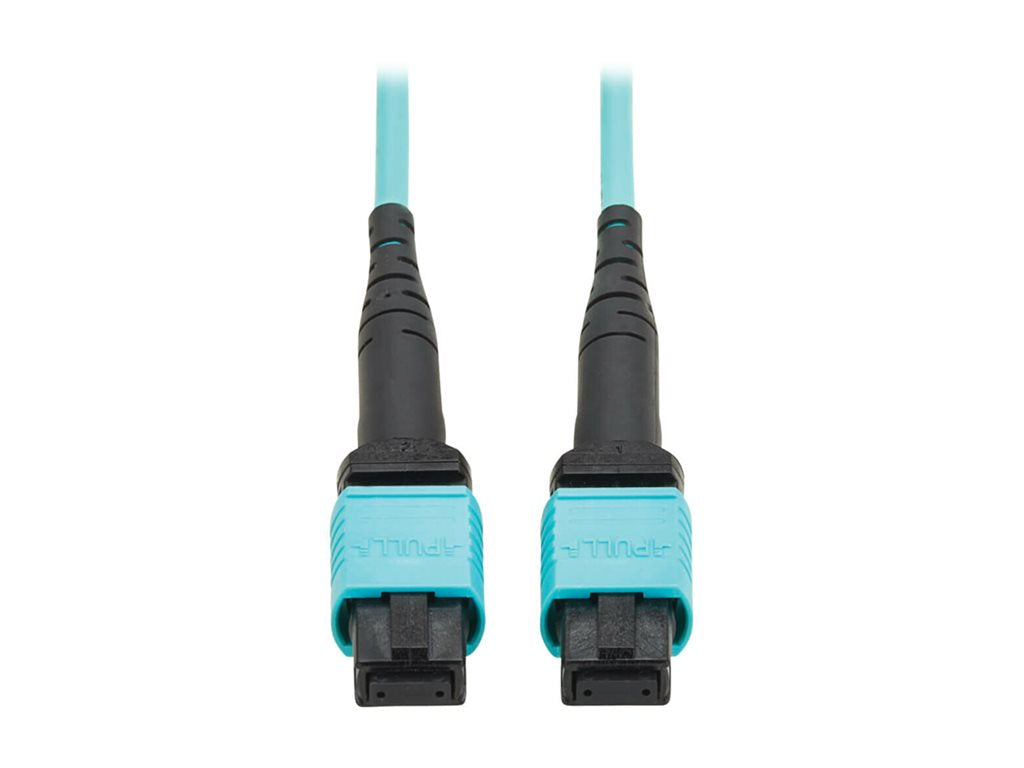

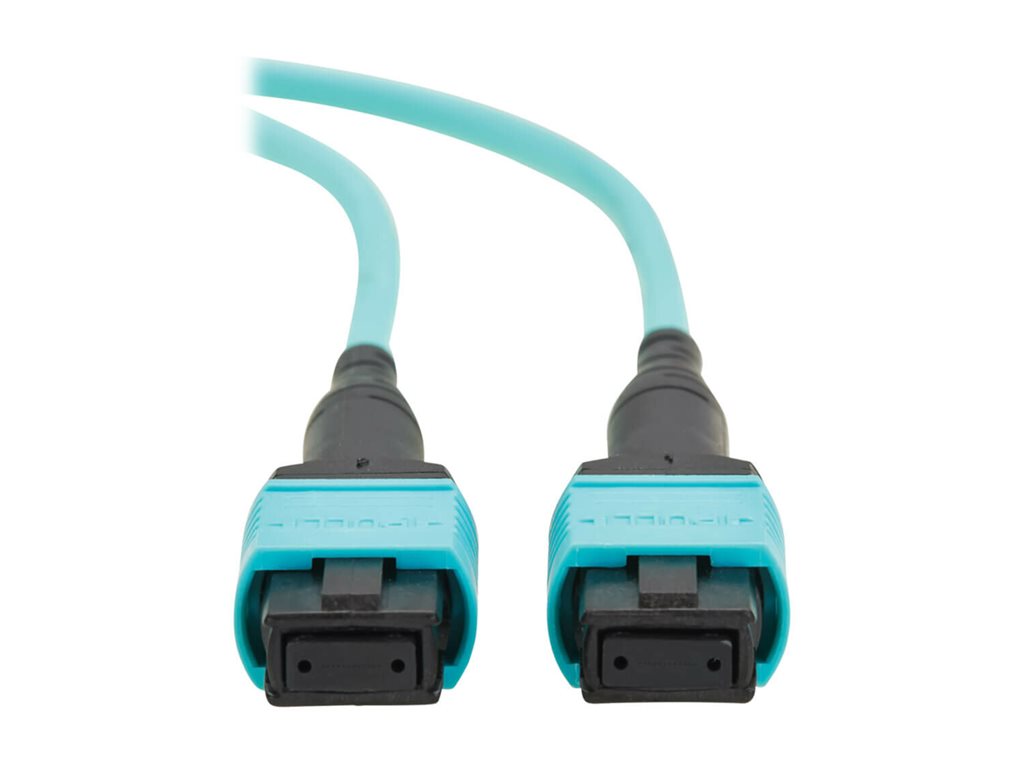

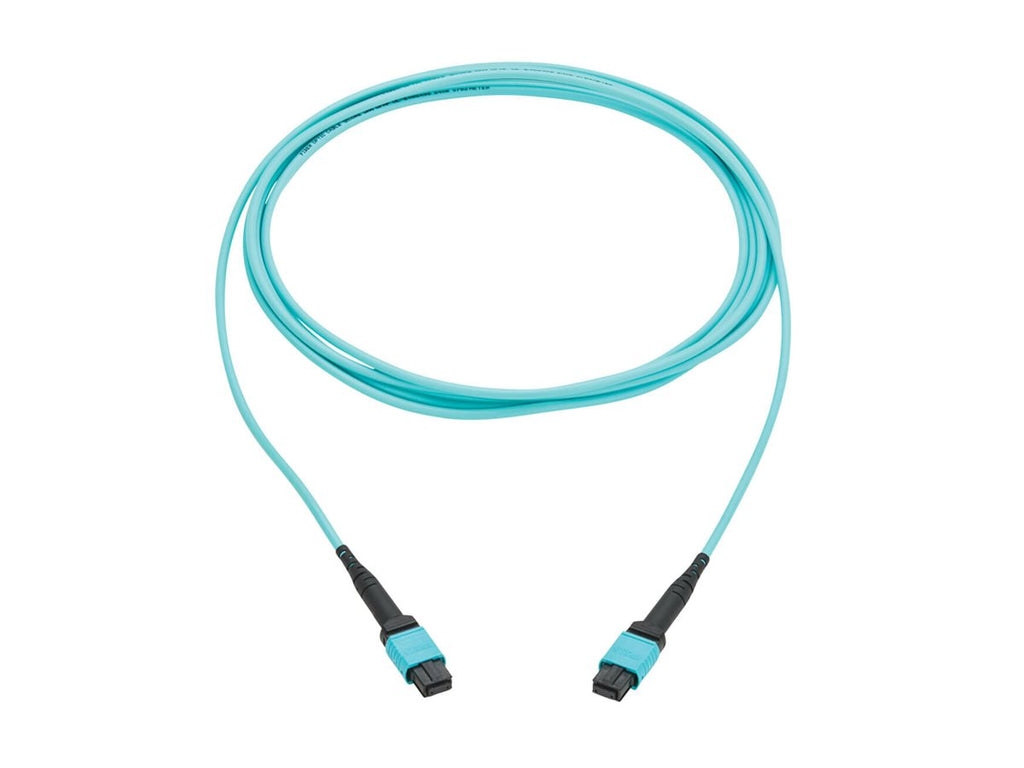

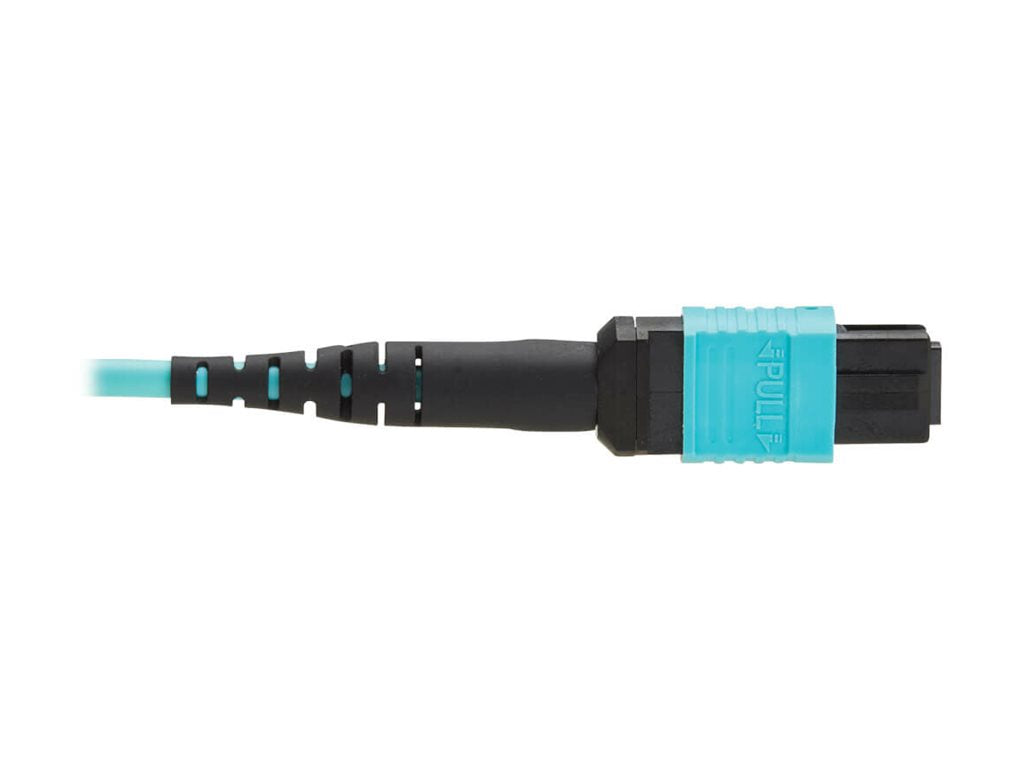

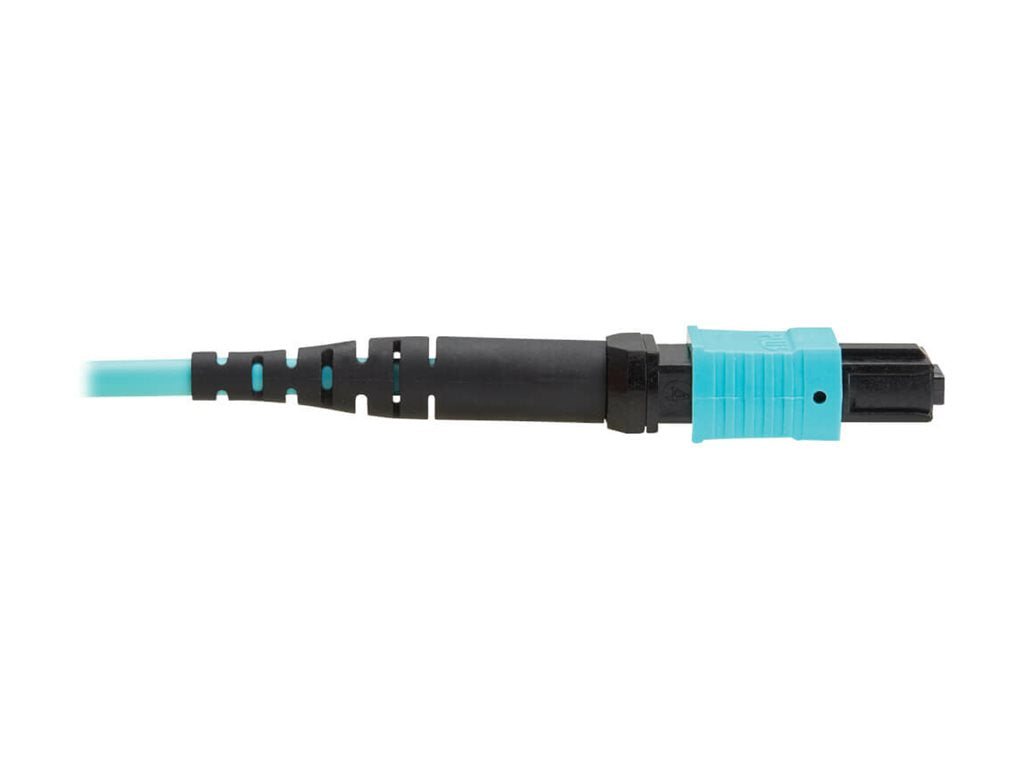

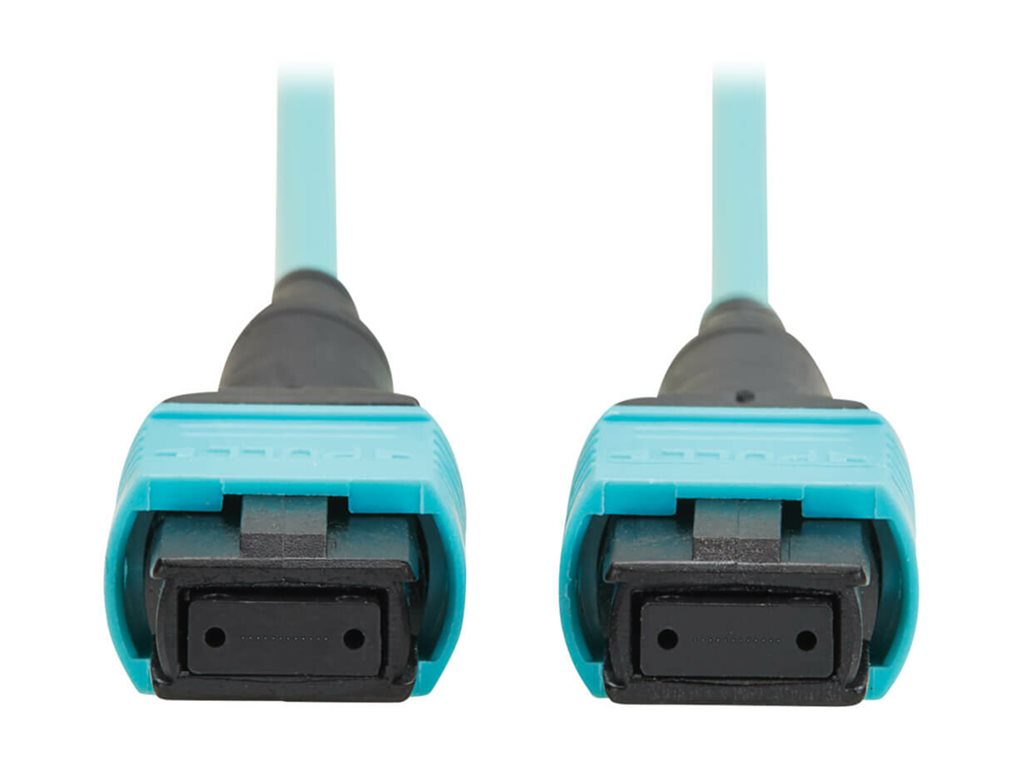

Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable 12F MPO/MPO-PC F/F Type-B Polarity OFNP Aqua 5M TAA - Network cable - TAA Compliant - MPO-12 type-B multi-mode (F) to MPO-12/PC multi-mode (F) - 5 m - 0.1 in - fiber optic - 50 / 125 micron - OM4 - OFNP - aqua
-
High-speed performance
The cable supports data transmission up to 400 Gbps, enabling fast and efficient communication. This makes it suitable for high-demand applications in data centers and network infrastructures.
-
Robust design
The cable features a PVC jacket that provides protection against environmental factors while maintaining a minimum bending radius of 10 mm (static) and 20 mm (dynamic), ensuring flexibility and durability during installation.
-
Reliable connectivity
Equipped with MPO-12 type-B and MPO-12/PC connectors, both of which are female, the cable allows for reliable connections in network environments. This design enhances compatibility with various networking equipment.
-
Low signal loss
With an insertion loss of just 0.6 dB and a return loss of 35 dB, the cable minimizes signal degradation, ensuring that data integrity is maintained during transmission over long distances.
-
Environmentally compliant
Adhering to RoHS and REACH standards, the Eaton Tripp Lite Series cable reflects a commitment to environmental safety and sustainability, making it a responsible choice for modern networking solutions.
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-05M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- This product is covered by a Lifetime limited warranty
