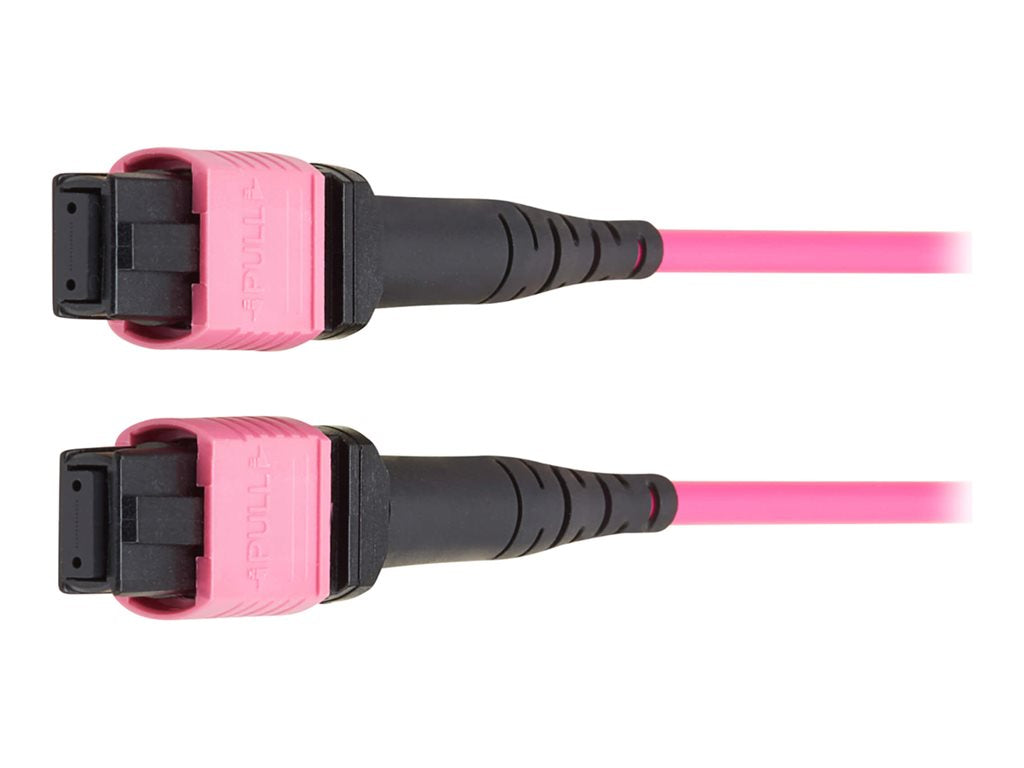

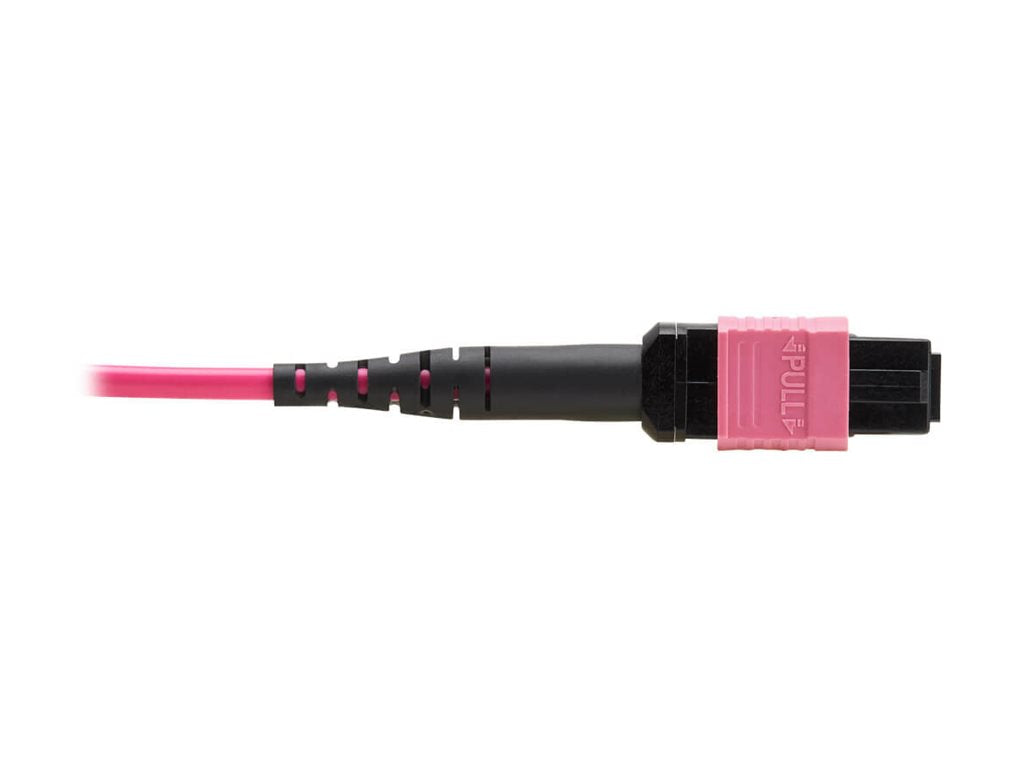

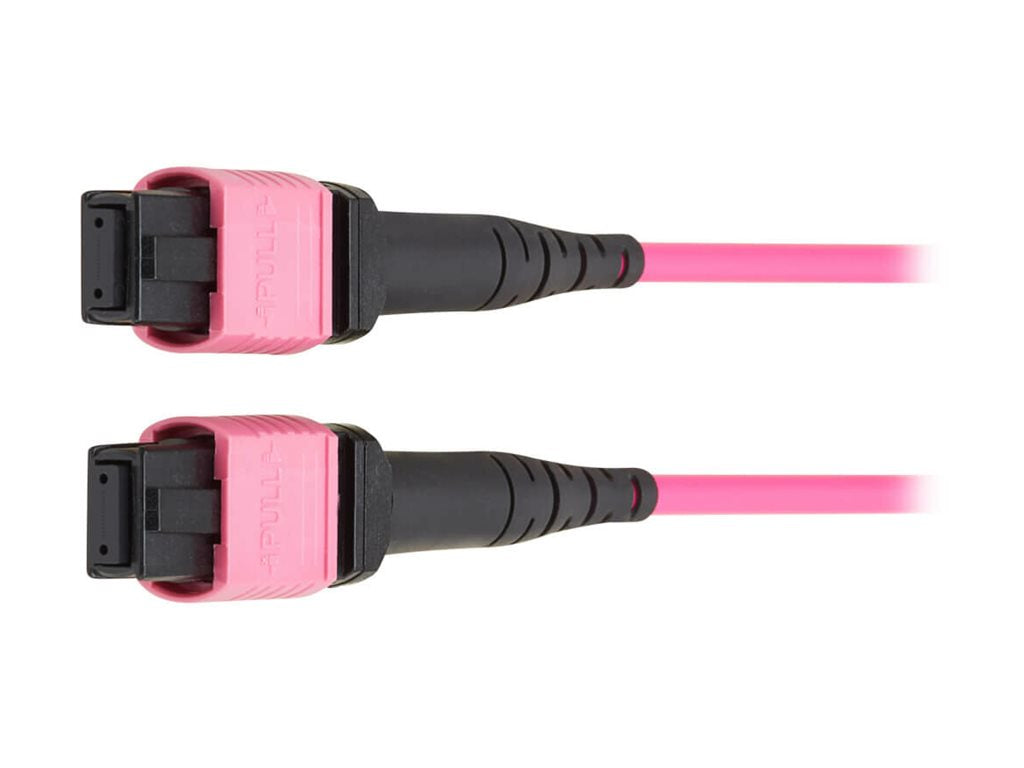

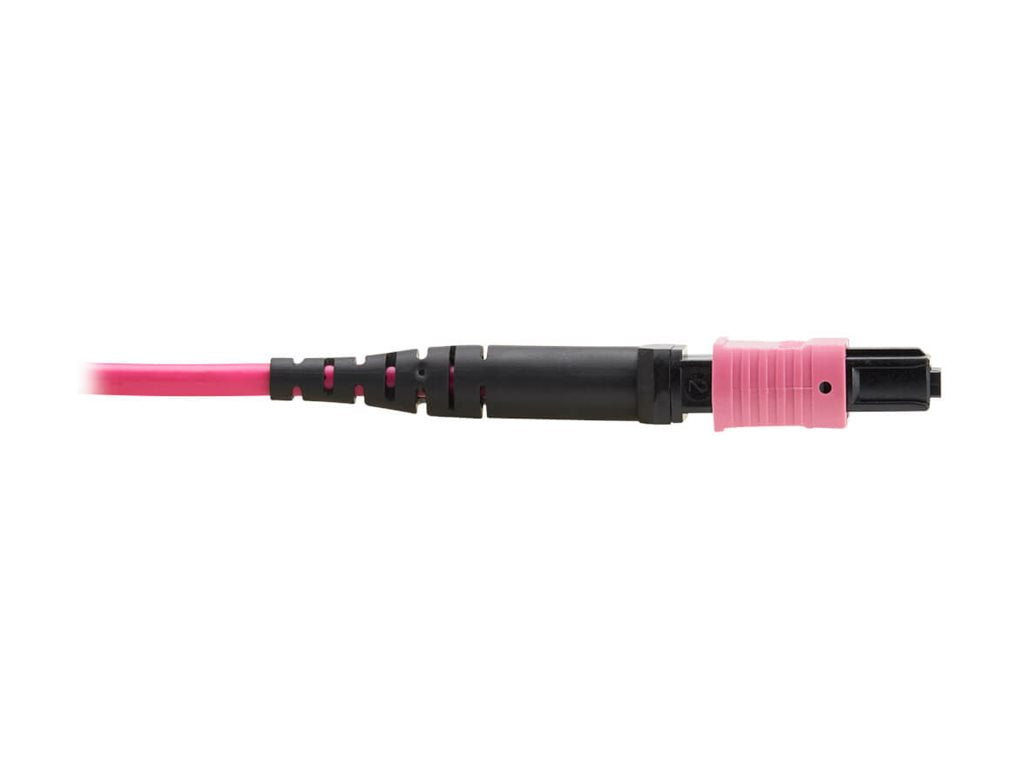

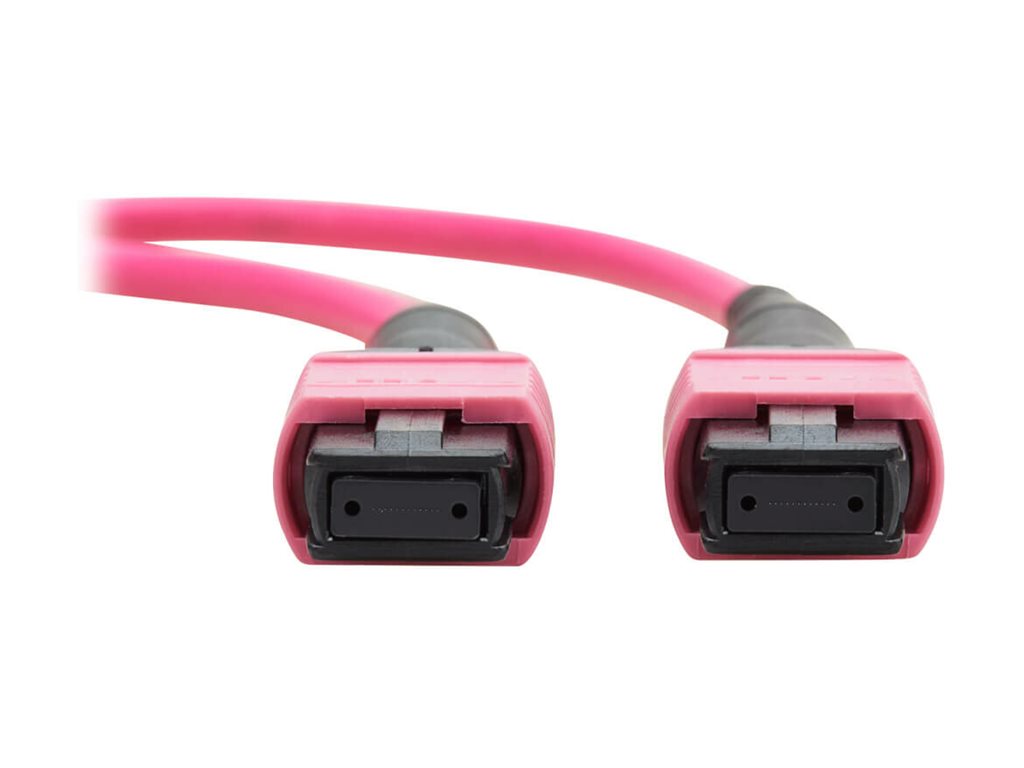

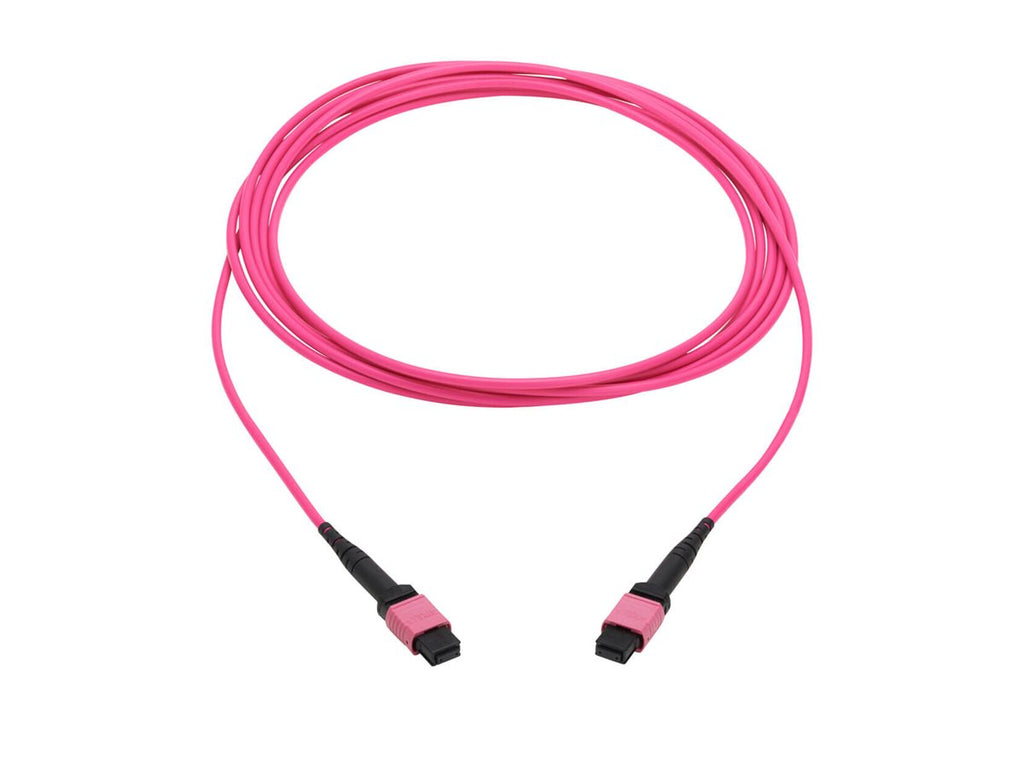

Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable 12F MPO/MPO-PC F/F Type-B Polarity OFNP Magenta 4M TAA - Network cable - TAA Compliant - MPO-12 type-B multi-mode (F) to MPO-12/PC multi-mode (F) - 4 m - 0.1 in - fiber optic - 50 / 125 micron - OM4 - OFNP - aqua
-
High performance with low loss
This fiber optic cable is engineered for speed and efficiency, supporting data transfer rates of up to 400 Gbps while maintaining a low insertion loss of just 0.6 dB.
-
Versatile installation options
The cable's bending radius is designed for flexibility, allowing for dynamic installation with a radius of 20 mm and static scenarios at 10 mm, accommodating various setups.
-
Robust construction for longevity
Constructed with a PVC jacket, this cable endures wear and tear while ensuring compliance with ROHS and REACH environmental standards.
-
Temperature resilience
Capable of functioning in a wide operating temperature range from -20 °C to 70 °C, this cable maintains performance across diverse environmental conditions.
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-04M-12MTA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Magenta OFNP jacket allows easy ID in a crowded switch or patch panel
- This product is covered by a Lifetime limited warranty
