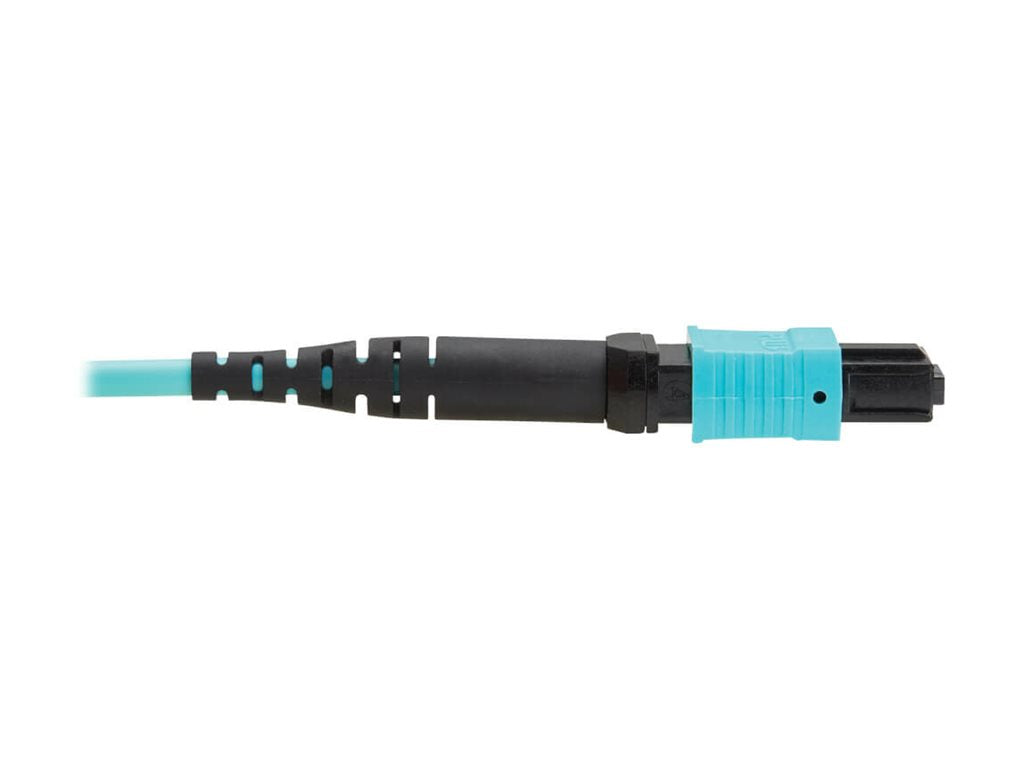

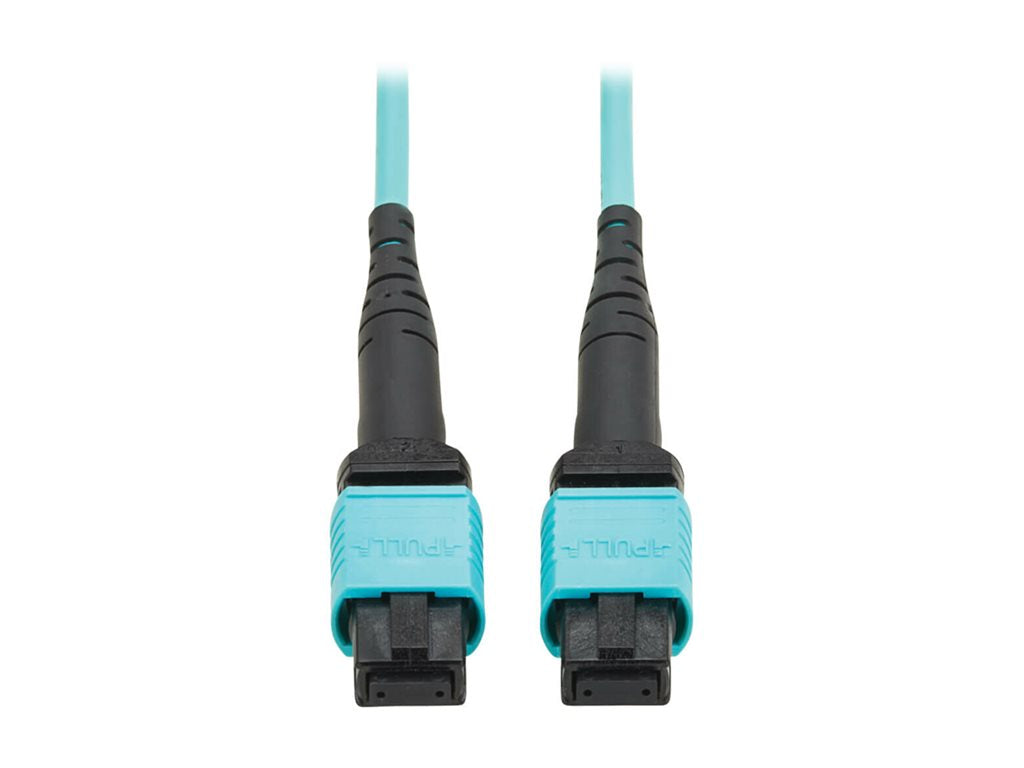

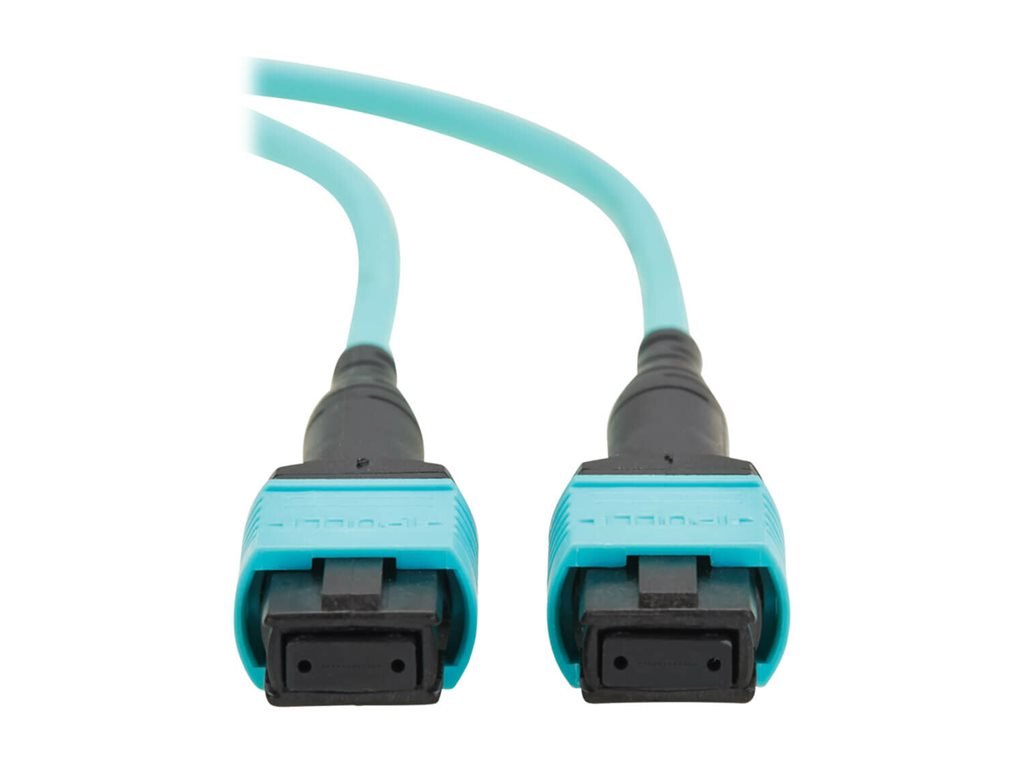

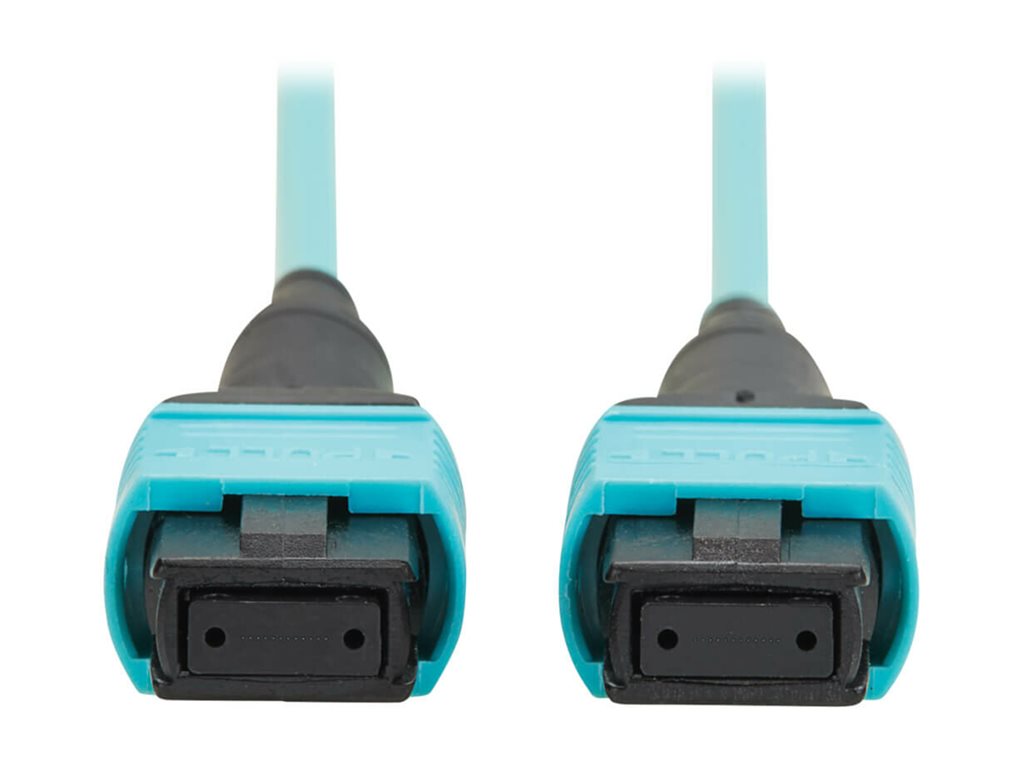

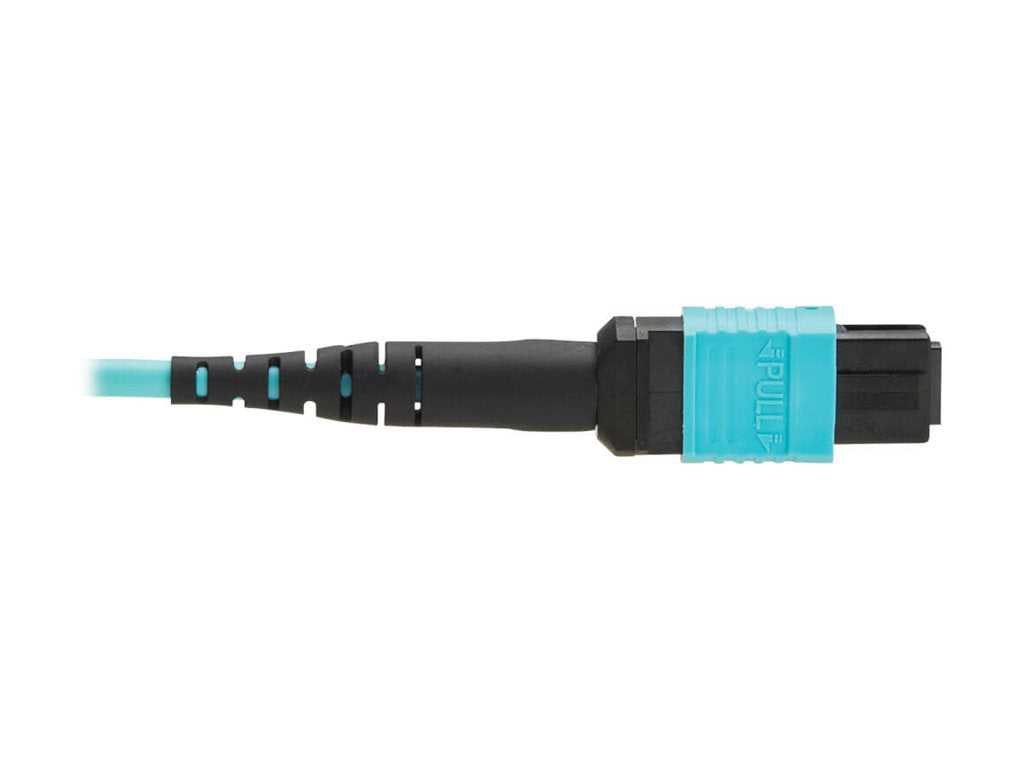

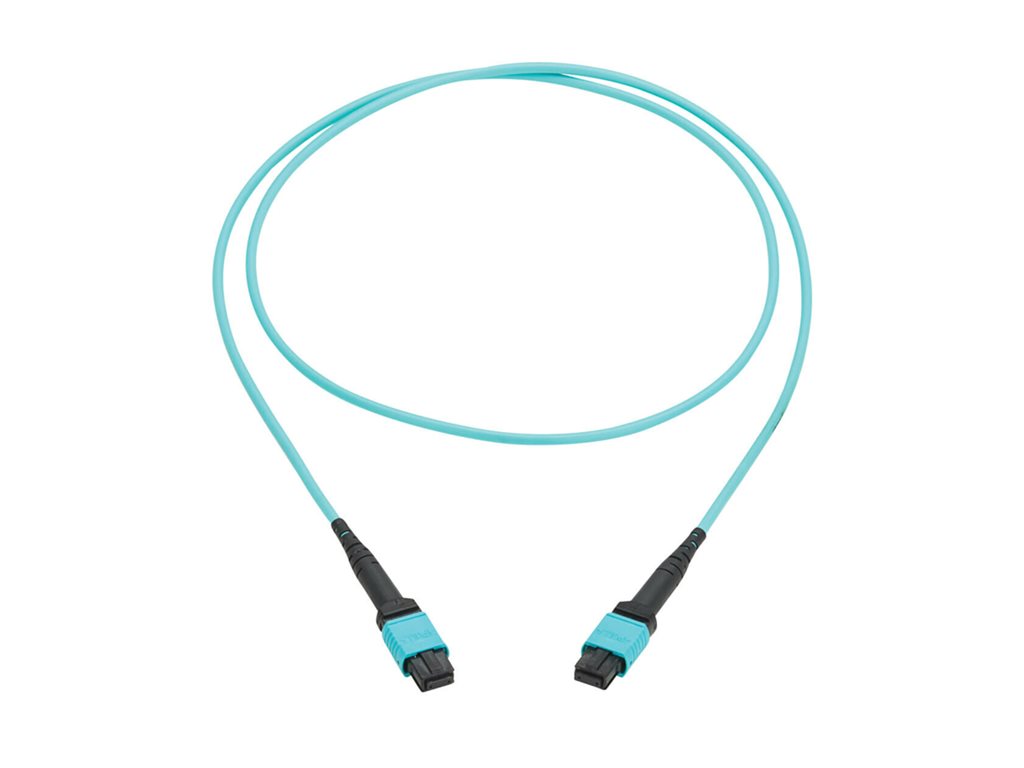

Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable 12F MPO/MPO-PC F/F Type-B Polarity OFNP Aqua 2M TAA - Network cable - TAA Compliant - MPO-12 type-B multi-mode (F) to MPO-12/PC multi-mode (F) - 2.01 m - 0.1 in - fiber optic - 50 / 125 micron - OM4 - OFNP - aqua
-
Connectivity
The Eaton Tripp Lite Series network cable is engineered to deliver reliable connectivity with multi-mode fiber optics, supporting demanding networking environments.
-
Loss Specifications
With a low insertion loss of 0.6 dB and high return loss of 35 dB, this cable is designed to ensure efficient data transmission with minimal signal degradation.
-
Installation Options
The cable’s bending radius of 10mm static and 20mm dynamic allows for versatile installation, making it suitable for various environments and applications.
-
Construction
Featuring a robust PVC jacket, the cable operates effectively within a temperature range of -20°C to 70°C, ensuring durability in diverse conditions.
-
Environmental Compliance
This cable meets RoHS and REACH standards, emphasizing a commitment to environmental safety throughout its lifecycle.
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-02M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
- This product is covered by a Lifetime limited warranty
