HDMI Fiber Extender Terminations for MPO Fiber Optic Cable

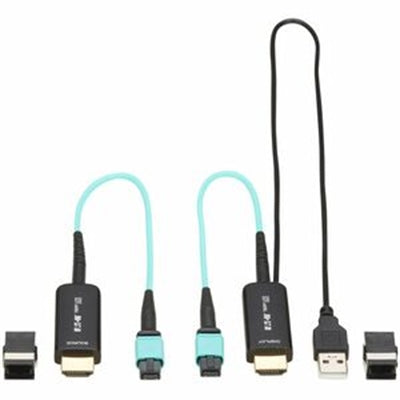

The Eaton Tripp Lite P568-000-FBR HDMI fiber extender is a professional-grade termination kit designed for organizations that need to transmit Ultra HD 4K video signals over extended distances without signal degradation. This HDMI fiber extender kit supports 4K resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDR technology, making it ideal for data centers, medical imaging facilities, military surveillance systems, and security operations where source and display devices are located up to 328 feet (100 meters) apart. The kit includes HDMI fiber extender terminations with male MPO connectors and adapters for seamless integration with OM3 multimode fiber optic cables, delivering crystal-clear video quality over long distances without copper cable limitations.
Key Features
- Extends 4K 60 Hz video signals up to 328 feet (100 meters) over OM3 fiber optic cable
- Supports Ultra HD resolutions up to 3840 x 2160 with 18 Gbps bandwidth
- HDR (High Dynamic Range) support for enhanced color depth and contrast
- Male MPO connectors for direct connection to N844A-Series multimode fiber cables
- Includes MPO adapters for flexible fiber optic connectivity
- LSZH (Low Smoke Zero Halogen) jacket for fire safety compliance
- Ideal for data centers, medical imaging, stereoscopic 3D, military surveillance, and security systems
- Eliminates EMI/RFI interference inherent to long copper HDMI runs
Technical Specifications
| Specification |
Details |
| Manufacturer |
Eaton Tripp Lite |
| Part Number |
P568-000-FBR |
| Product Type |
HDMI Fiber Extender Termination Kit |
| Maximum Distance |
328 feet (100 meters) |
| Video Resolution |
4K Ultra HD (3840 x 2160) at 60 Hz |
| Bandwidth |
18 Gbps |
| Fiber Type |
OM3 Multimode |
| Connector Type |
Male MPO |
| Cable Jacket |
LSZH (Low Smoke Zero Halogen) |
| HDR Support |
Yes |
| Compatible Cables |
N844A-Series MPO Fiber Optic Cables |
Frequently Asked Questions
What is an HDMI fiber extender and why do I need one?
An HDMI fiber extender transmits digital video signals over fiber optic cable instead of traditional copper HDMI cables. Fiber optic technology eliminates electromagnetic interference and allows you to extend 4K video signals up to 328 feet without signal loss, making it essential for large data centers, broadcast facilities, and security installations where long-distance video transmission is required.
Can this HDMI fiber extender kit support 4K 60 Hz video?
Yes, the P568-000-FBR HDMI fiber extender fully supports 4K 60 Hz video at 3840 x 2160 resolution with 18 Gbps bandwidth and HDR support, delivering professional-quality video for demanding applications like medical imaging, surveillance, and stereoscopic 3D systems.
What type of fiber optic cable does this HDMI extender termination kit use?
This HDMI fiber extender termination kit is designed for OM3 multimode fiber optic cable with MPO connectors. The kit includes male MPO connectors and adapters for connection to compatible N844A-Series multimode fiber cables, ensuring reliable long-distance video transmission.
Is the P568-000-FBR suitable for data center and security applications?
Absolutely. The HDMI fiber extender is specifically recommended for data centers, medical imaging, military surveillance, and security systems where equipment is located far apart. Its LSZH jacket provides fire safety compliance, and the fiber optic design eliminates EMI/RFI interference common in copper installations.
