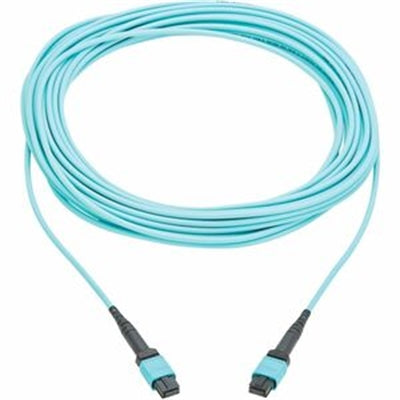

OM4 100G Multimode Fiber Optic Cable – 10m MPO/MPO-PC
The Eaton Tripp Lite OM4 100G fiber optic cable delivers enterprise-grade connectivity for high-speed data center and campus network deployments. This 12-fiber MPO/MPO-PC female-to-female cable spans 10 meters with Type-A polarity configuration, engineered for straight-through fiber applications requiring maximum bandwidth and reliability. Built with OFNP plenum-rated aqua jacket construction, it supports 40/100 GbE Ethernet while maintaining backward compatibility with 10 Gb, 25 Gb, and 40 Gb networks—making it ideal for high-density wiring closets, server rooms, and enterprise infrastructure upgrades.
Key Features
-
100G Multimode 50/125 OM4 – Maximum bandwidth for next-generation data center speeds
-
12-Fiber MPO/MPO-PC Connectors – Female-to-female configuration for seamless integration
-
Type-A Polarity – Ensures correct signal routing in straight-through applications
-
OFNP Plenum-Rated Jacket – Safe for installation in air-handling spaces and suspended ceilings
-
Aqua Color Coding – Industry-standard identification for multimode fiber systems
-
10 Meter Length (32.8 ft.) – Optimal for rack-to-rack and cabinet-to-cabinet connectivity
-
Backward Compatible – Supports 10 Gb, 25 Gb, 40 Gb, and 100 Gb Ethernet standards
-
High-Density Data Center Ready – Compact MPO design maximizes port density
Technical Specifications
| Specification |
Details |
| Manufacturer |
Eaton (Tripp Lite) |
| Part Number |
N845A-10M-12TAA |
| Fiber Type |
Multimode 50/125 OM4 |
| Connector Type |
MPO/MPO-PC Female-to-Female |
| Fiber Count |
12-Fiber |
| Polarity |
Type-A |
| Cable Length |
10 m (32.8 ft.) |
| Jacket Material |
OFNP Plenum-Rated |
| Jacket Color |
Aqua |
| Supported Speeds |
10 Gb, 25 Gb, 40 Gb, 100 Gb Ethernet |
| Application |
Data Center, Enterprise Campus Networks |
| Compliance |
TAA Compliant |
Frequently Asked Questions
What is OM4 multimode fiber used for?
OM4 multimode fiber is designed for high-speed, short-to-medium distance applications in data centers and enterprise networks. It supports 100 Gb Ethernet over distances up to 150 meters, making it ideal for interconnecting servers, switches, and storage systems within campus environments.
What does OFNP plenum-rated mean?
OFNP (Optical Fiber Non-Conductive Plenum) rating indicates the cable is safe for installation in plenum spaces—air-handling areas above suspended ceilings and between floor joists. It meets fire safety codes and produces minimal smoke if exposed to flame.
Can this OM4 cable work with older network equipment?
Yes. This OM4 100G fiber optic cable is backward compatible with 10 Gb, 25 Gb, and 40 Gb Ethernet standards, allowing seamless integration with legacy infrastructure while supporting future 100 GbE upgrades.
What is Type-A polarity in MPO connectors?
Type-A polarity defines the fiber arrangement within the MPO connector. It ensures correct signal routing in straight-through applications where both ends of the cable maintain identical fiber positions, preventing signal crossover and maintaining data integrity.
