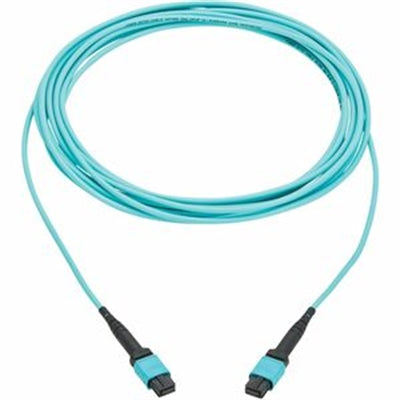

100G Multimode OM4 Fiber Optic Cable with 12F MPO Connectors
The Eaton Tripp Lite N845A-05M-12TAA is a 100G multimode 50/125 OM4 fiber optic cable engineered for enterprise data centers, telecom rooms, and high-density wiring closets requiring ultra-fast network connectivity. This 12-fiber MPO/MPO-PC female-to-female cable delivers exceptional performance for 40/100 GbE Ethernet applications while maintaining backward compatibility with 10 Gb, 25 Gb, and 40 Gb systems. With its OFNP-rated aqua jacket and Type-A straight-through polarity, this 5-meter cable provides reliable, future-proof connectivity that supports network speeds up to 400 Gbps. Federal compliance and GSA Schedule eligibility make it the ideal choice for government and enterprise procurement.
Key Features
- 100G multimode 50/125 OM4 fiber optic construction for maximum bandwidth
- 12-fiber MPO/MPO-PC female-to-female connectors with Type-A polarity
- Supports up to 400 Gbps network speeds with backward compatibility
- OFNP-rated aqua jacket for fire safety and visibility in cable runs
- 5-meter (16.4 ft) length optimized for data center patch panels
- TAA compliant for federal procurement and GSA Schedule contracts
- High-density connectivity for 40/100 GbE Ethernet applications
- Reliable performance in enterprise wiring closets and telecom rooms
Technical Specifications
| Specification |
Details |
| Manufacturer |
Eaton Tripp Lite |
| Cable Type |
Multimode 50/125 OM4 |
| Connector Type |
MPO/MPO-PC Female-to-Female |
| Fiber Count |
12-Fiber (12F) |
| Polarity |
Type-A Straight-Through |
| Cable Length |
5 m (16.4 ft) |
| Jacket Material |
OFNP-Rated Aqua |
| Maximum Speed |
Up to 400 Gbps |
| Supported Applications |
10 Gb, 25 Gb, 40 Gb, 100 Gb Ethernet |
| Compliance |
TAA (Trade Agreements Act) |
| Use Cases |
Data Centers, Telecom Rooms, Enterprise Wiring Closets |
Frequently Asked Questions
What is an OM4 multimode fiber optic cable used for?
OM4 multimode fiber optic cables are designed for high-speed data center and enterprise networking applications. The 100G multimode OM4 cable supports 40/100 GbE Ethernet connections and is ideal for short-to-medium distance runs in wiring closets, telecom rooms, and data center environments where bandwidth and reliability are critical.
What does MPO/MPO-PC connector mean?
MPO (Multi-fiber Push-On) connectors are high-density fiber optic connectors that accommodate multiple fibers in a single connector. The PC (Physical Contact) designation indicates the connector has a curved polished end face for optimal signal transmission. The 12F MPO/MPO-PC configuration in this cable supports 12 individual fibers for parallel transmission.
Is this 100G fiber optic cable TAA compliant?
Yes, the N845A-05M-12TAA is fully TAA (Trade Agreements Act) compliant, making it eligible for GSA Schedule contracts and federal government procurement. This compliance ensures the product meets all required standards for government and institutional purchasing.
What is Type-A polarity in fiber optic cables?
Type-A polarity is a straight-through connector configuration where fiber positions are aligned identically on both ends of the cable. This ensures consistent signal transmission and is the standard polarity for most data center and enterprise networking applications using MPO connectors.
