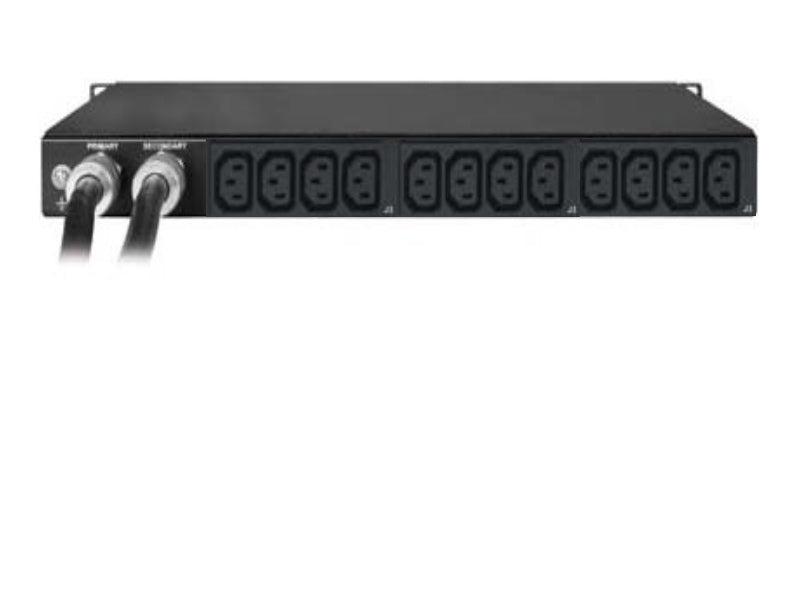

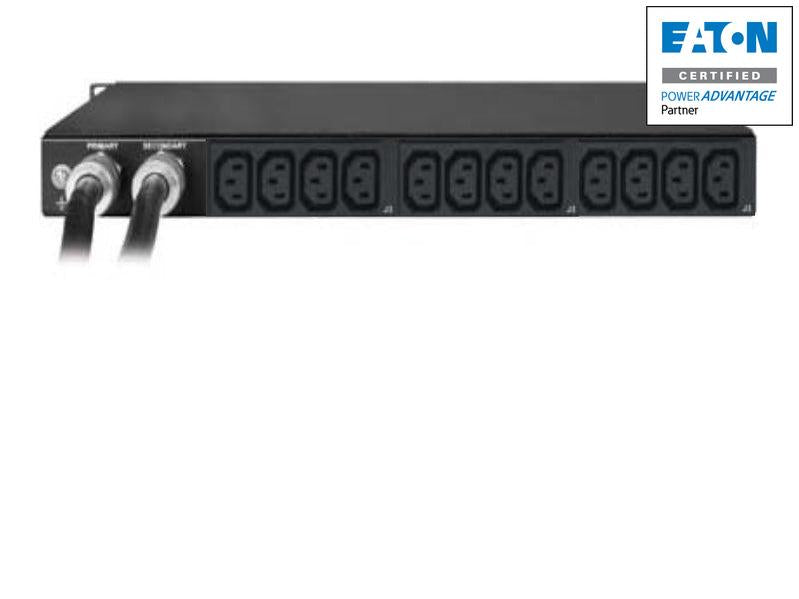

This ATS rack PDU is perfect for data centers, server rooms, and IT professionals requiring reliable automatic transfer switch capabilities with dual power source redundancy. The Eaton T2235-F3-CFB09L delivers:
-
1U power distribution unit design maximizing rack space efficiency
-
Dual L6-30P input connections providing automatic failover protection
-
12 C13 outlets supporting multiple server and network equipment loads
-
Single-phase power management with 4.99 kW capacity for enterprise deployments
Key Features
-
ATS rack PDU with intelligent automatic transfer switch technology
-
1U form factor optimizing valuable rack space in data center environments
- Dual L6-30P input connections ensuring continuous power availability
-
12 C13 outlets providing flexible power distribution for rack equipment
-
Single-phase operation with 208-240V compatibility for standard installations
- 9-foot power cord length enabling flexible rack positioning
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
T2235-F3-CFB09L |
| Type |
ATS Rack PDU |
| Form Factor |
1U rack mount |
| Input Connections |
(2) L6-30P plugs |
| Output Outlets |
12 C13 receptacles |
| Voltage Range |
208-240V single-phase |
| Maximum Current |
24A per input |
| Power Capacity |
4.99 kW maximum |
| Cord Length |
9 feet |
| Transfer Type |
Automatic Transfer Switch (ATS) |
| Compatible Equipment |
Servers, network switches, storage systems, UPS units |
| Environment |
Data center, server room, network operations center |
Frequently Asked Questions
Q: How does the automatic transfer switch functionality work?
A: This ATS rack PDU continuously monitors both power sources and automatically switches to the backup input when the primary source fails, ensuring uninterrupted power to connected equipment without manual intervention.
Q: What type of equipment can be powered by the 12 C13 outlets?
A: The 12 C13 outlets are ideal for servers, network switches, storage devices, and other rack-mounted equipment requiring standard IEC C13 power connections with up to 4.99 kW total capacity.
Q: Is this PDU suitable for high-density server rack deployments?
A: Yes, this 1U power distribution unit provides maximum power density in minimal rack space, making it perfect for high-density installations where rack space is critical and power redundancy is essential.
Q: What are the benefits of dual L6-30P inputs for data center applications?
A: The dual L6-30P input configuration enables connection to separate power circuits or UPS systems, providing automatic failover protection and eliminating single points of failure in critical infrastructure.
ATS rack PDU 1U by Eaton with automatic transfer switch, dual L6-30P inputs, and 12 C13 outlets for data center power redundancy.
