Eaton Power-Sure 800 - Line conditioner - AC 120 V - 700 Watt - output connectors: 4
- Superior isolation
- Tight voltage regulation
- High immunity to distortion
- Lightning and surge protection
- Protection against power interruptions
- Power factor correction
- Bi-directional harmonic filtering
- Meets ANSI standards for computers with inputs as low as 50% of nominal
- K-30 rated design

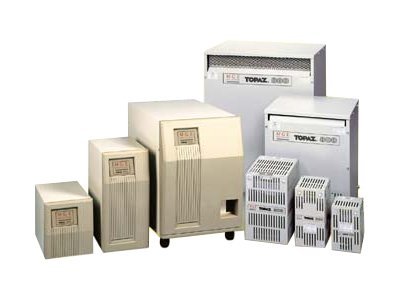

Power-Sure 800 power conditioners provide high quality power with inherent surge protection, noise and bi-directional harmonic filtering, as well as superior isolation. Power-Sure 800 units range from office models to floor or wall/panel mounted industrial models, and provide an excellent solution for any application with noisy or poor power quality.
-
Unique "Ride-through" capability
The Power-Sure 800 generates its output voltage by a circuit operating as a powerful stored energy oscillator. Even with a loss of input voltage for one entire cycle, the output maintains its tight regulation. The Power-Sure 800 offers battery back-up behavior without the space, cost or maintenance required by batteries.
-
Immunity to distortion
With an input waveform distortion as high as 40%, the output of the Power-Sure 800 delivers a transient-free sinewave with no more than 5% harmonic distortion.
-
Short circuit proof
The Power-Sure 800 sustains operation under short circuit conditions without damaging the unit.
-
Power factor correction
The Power-Sure 800 corrects for load generated poor power factor. Additionally, the input power factor remains within 0.95 with a load power factor of 0.6.
-
K-Factor
The Power-Sure 800 has a K-Factor rating of 30 and handles high harmonic content loads without overheating.
-
Medical applications
All Power-Sure 800 models carry the UL 544 listing for medical applications.
-
Variable Range Regulation (VRR)
Variable Range Regulation, extends the usable input voltage window, depending on load. VRR provides regulated voltage under extreme brownout conditions or surges up to 200%.
