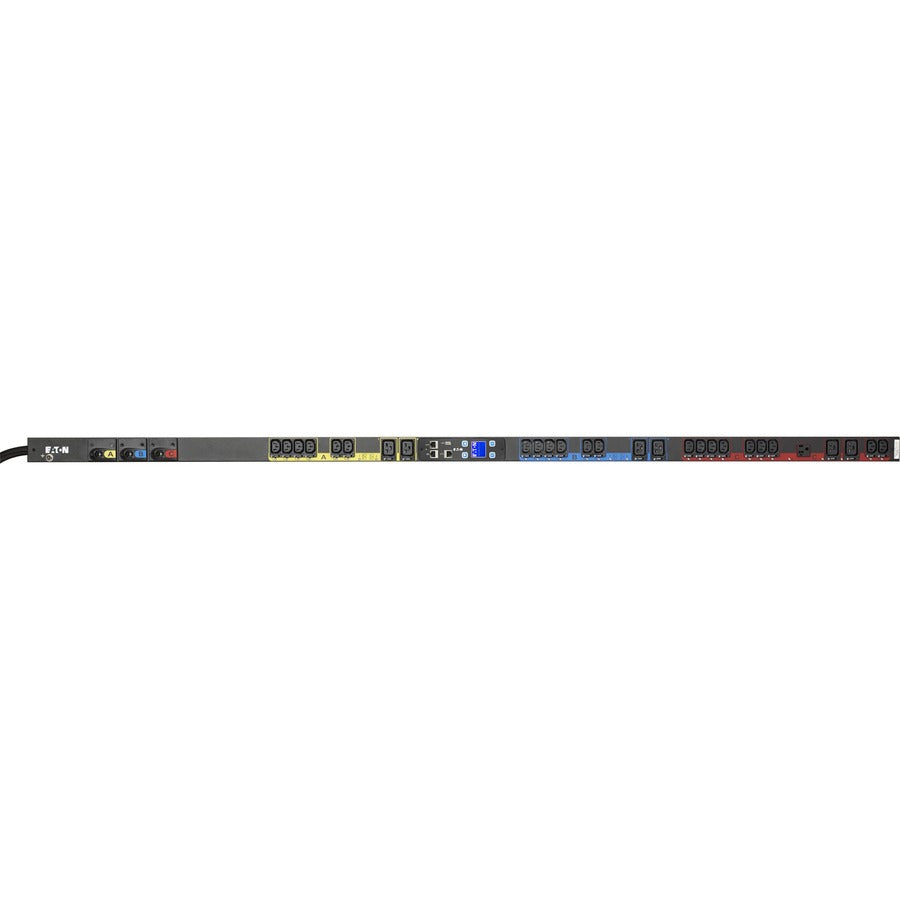

Eaton Managed Rack PDU 8.64 kW max 120/208V 24A 50-60Hz 0U Three-Phase PDU - Switched - NEMA L21-30P - 1 x NEMA 5-20R, 6 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 8640 W - Network (RJ-45) - 42U - Rack-mountable
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
- Outlet switching for on, off and reboot control to reduce management costs
- Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
- LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
- Hig
