The Eaton Managed PDU is perfect for data center managers, IT administrators, and enterprise organizations requiring intelligent power distribution and monitoring. This advanced vertical switched metered ePDU delivers:
-
Switched power distribution unit capabilities with individual outlet control
-
Metered power distribution unit monitoring for precise energy management
-
TAA compliant certification for government and enterprise deployments
-
Rack mount power distribution units PDU efficiency in space-saving 0U design
Key Features
-

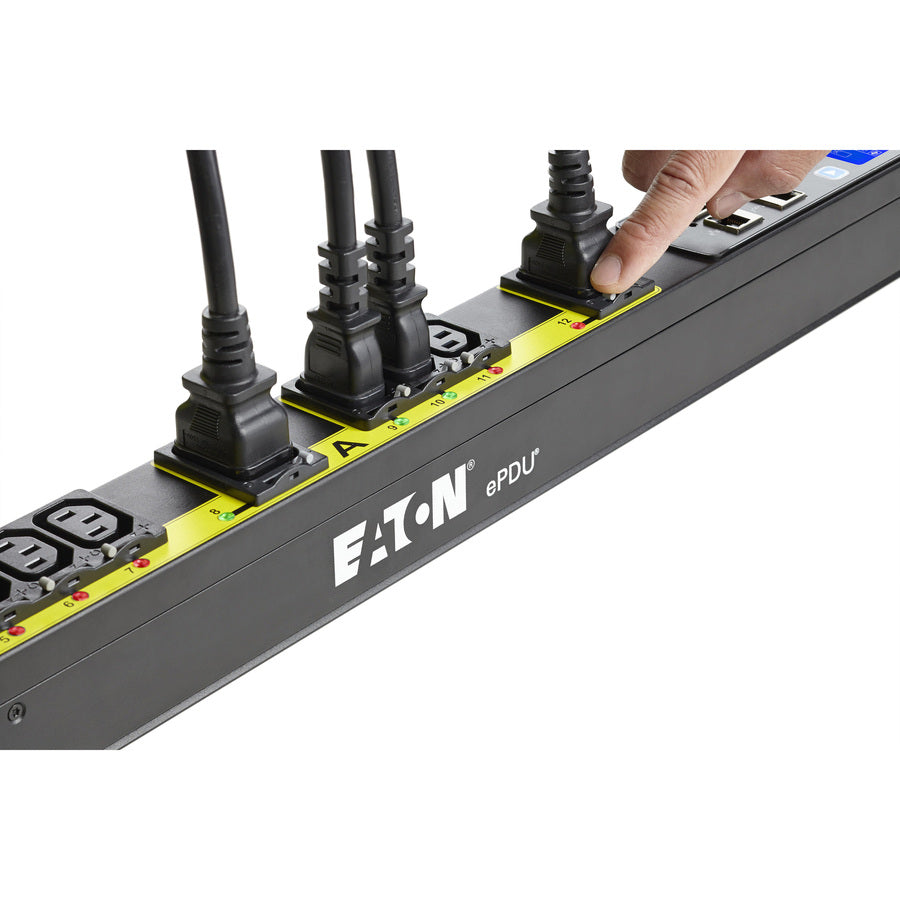

Individual outlet switching for remote power cycling and load sequencing
-
Real-time power monitoring with current, voltage, and power factor measurement
-
24 total outlets configuration with (20) C13 and (4) C19 receptacles
-

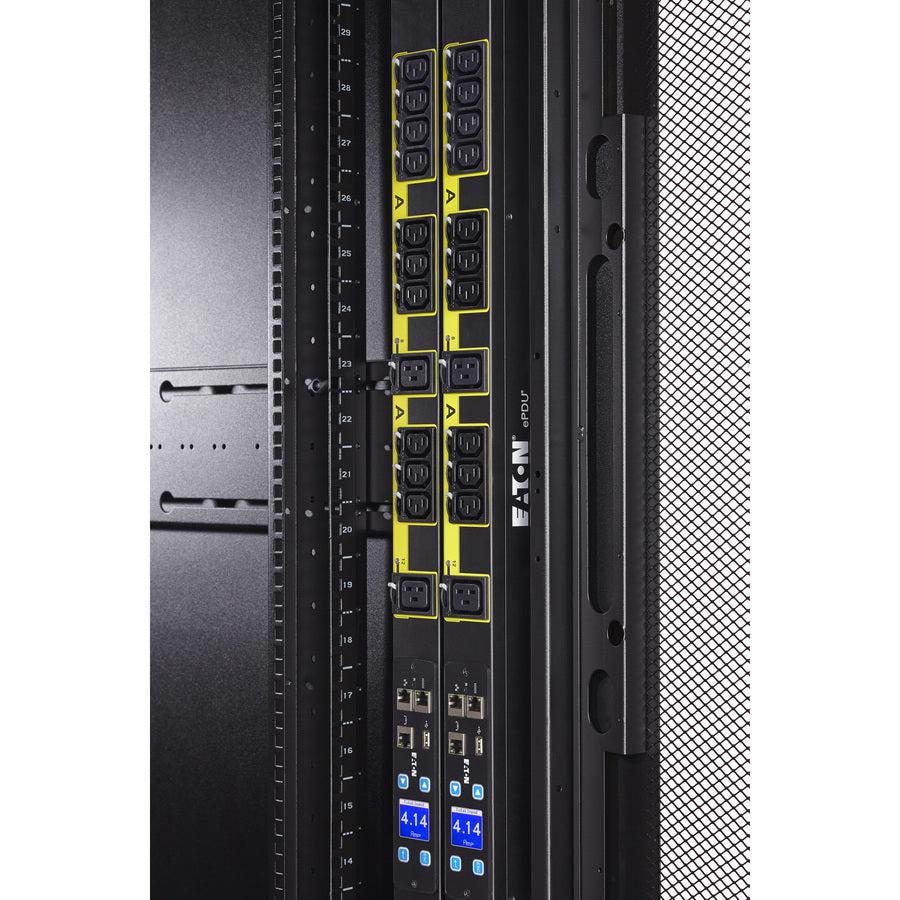

0U vertical design maximizing rack space utilization
-
Network connectivity with SNMP and web interface management
-
Intelligent Load Manager preventing circuit overloads
-
Environmental monitoring capabilities with optional sensors
-
User access control with role-based security permissions
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
EMA107-10 |
| Product Type |
Managed PDU Vertical Switched Metered |
| Input Configuration |
1-Phase, NEMA L6-30P plug |
| Input Cord Length |
10 feet |
| Power Rating |
5.76kW maximum load capacity |
| Current Rating |
24A maximum current |
| Voltage Range |
200-240V AC |
| Frequency |
50/60Hz |
| Outlet Configuration |
24 outlets: (20) IEC C13, (4) IEC C19 |
| Rack Units |
0U (vertical mount) |
| Mounting Options |
Vertical rack mount with included brackets |
| Network Interface |
10/100 Ethernet with SNMP v1/v2c/v3 |
| Management |
Web interface, telnet, SSH |
| Monitoring Accuracy |
±1% current measurement accuracy |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Certifications |
UL Listed, cUL, CE, TAA Compliant |
| Warranty |
3-year limited warranty |
Frequently Asked Questions
Q: What makes this Eaton managed PDU suitable for data center environments?
A: This Eaton power distribution unit provides enterprise-grade power management with individual outlet switching, real-time monitoring, and network connectivity — the switched rack power distribution unit design enables remote power cycling, load sequencing, and precise energy measurement for mission-critical applications.
Q: How does the metered functionality help with power management?
A: The metered power distribution unit provides real-time monitoring of current, voltage, power, and energy consumption at both inlet and individual outlet levels — this intelligent managed PDU enables proactive capacity planning, cost allocation, and prevents circuit overloads through continuous monitoring.
Q: What does TAA compliance mean for government deployments?
A: TAA compliant certification ensures this PDU meets Trade Agreements Act requirements for government procurement — manufactured with approved components and processes, making it suitable for federal, state, and local government installations requiring verified supply chain compliance.
Q: How does the 0U vertical design benefit rack space utilization?
A: The vertical mounting configuration of this rack mount power distribution units PDU installs alongside equipment rather than consuming valuable rack units — this space-efficient design maximizes server density while providing 24 outlets for comprehensive power distribution in standard 19-inch racks.
Eaton EMA107-10 Managed PDU with vertical switched metered design. 5.76kW, 24 outlets, TAA compliant power distribution for data centers.
